Hypertherm XPR300 Plasma Cutting System
The XPR300 mechanized plasma cutting system from Hypertherm represents a significant advancement in plasma cutting technology, providing high X-Definition cut quality on mild steel, stainless steel, and aluminum. With a maximum output of 300 amps and 66.5 kW, it offers faster cutting speeds, enhanced productivity, and reduced operating costs compared to previous models. The system features advanced arc response technology that automatically protects the torch and extends consumable life, helping maintain consistent, precise cuts and limiting downtime. Four console options: Core, CorePlus, Vented Water Injection (VWI), and OptiMix, provide flexibility to optimise cutting capabilities across various materials. Additional features like EasyConnect torch lead, QuickLock electrode, and built-in Wi-Fi for system monitoring enhance ease of use and reliability.
Benefits of the XPR300
Industry-Leading X-Definition Cut Quality
The XPR300 provides next-generation plasma cutting performance, setting a new standard for cut quality across mild steel, stainless steel, and aluminum.
-
Consistently achieves ISO 9013 Range 2 precision on thin mild steel
-
provides extended ISO Range 3 quality on thicker mild steel and stainless steel
-
Produces clean, square edges on stainless steel with minimal dross
-
Achieves excellent cut quality on aluminum using Vented Water Injection (VWI) technology
Boosted Productivity & Lower Operating Costs
The XPR300 isn’t just about better quality, it’s about better efficiency and return on investment.
-
Operating costs are significantly lower than legacy plasma systems
-
Faster cut speeds on thick materials mean shorter cycle times
-
Dramatically extended consumable life, particularly on mild steel
-
Greater piercing power compared to other plasma systems
Intelligent Engineering & User-Friendly Features
Designed with the fabricator in mind, the XPR300 makes high-performance cutting easier to operate and maintain.
-
Ramp-down error protection helps extend the life of consumables
-
Real-time system monitoring with built-in troubleshooting codes
-
EasyConnect one-handed torch connections for rapid changeovers
-
QuickLock electrode system streamlines consumable swaps
-
Built-in Wi-Fi for LAN or mobile diagnostics and multi-system monitoring
-
Full IoT readiness for integration with modern smart factory platforms
Precision Process Control with Four Console Options
Choose from four cutting console configurations, Core, CorePlus, VWI, and OptiMix, each optimized for specific materials and applications.
| Gas/Fluid Compatibility | Core | CorePlus | VWI | OptiMix |
|---|---|---|---|---|
| O2 / N2 / Air | ✔ | ✔ | ✔ | ✔ |
| Ar | ✔ | ✔ | ✔ | |
| F5 / Ar / H₂O | ✔ | ✔ | ||
| H₂ / N₂ / Ar Mixing | ✔ | |||
All consoles are fully controlled via CNC for planned operation and high-throughput productivity.

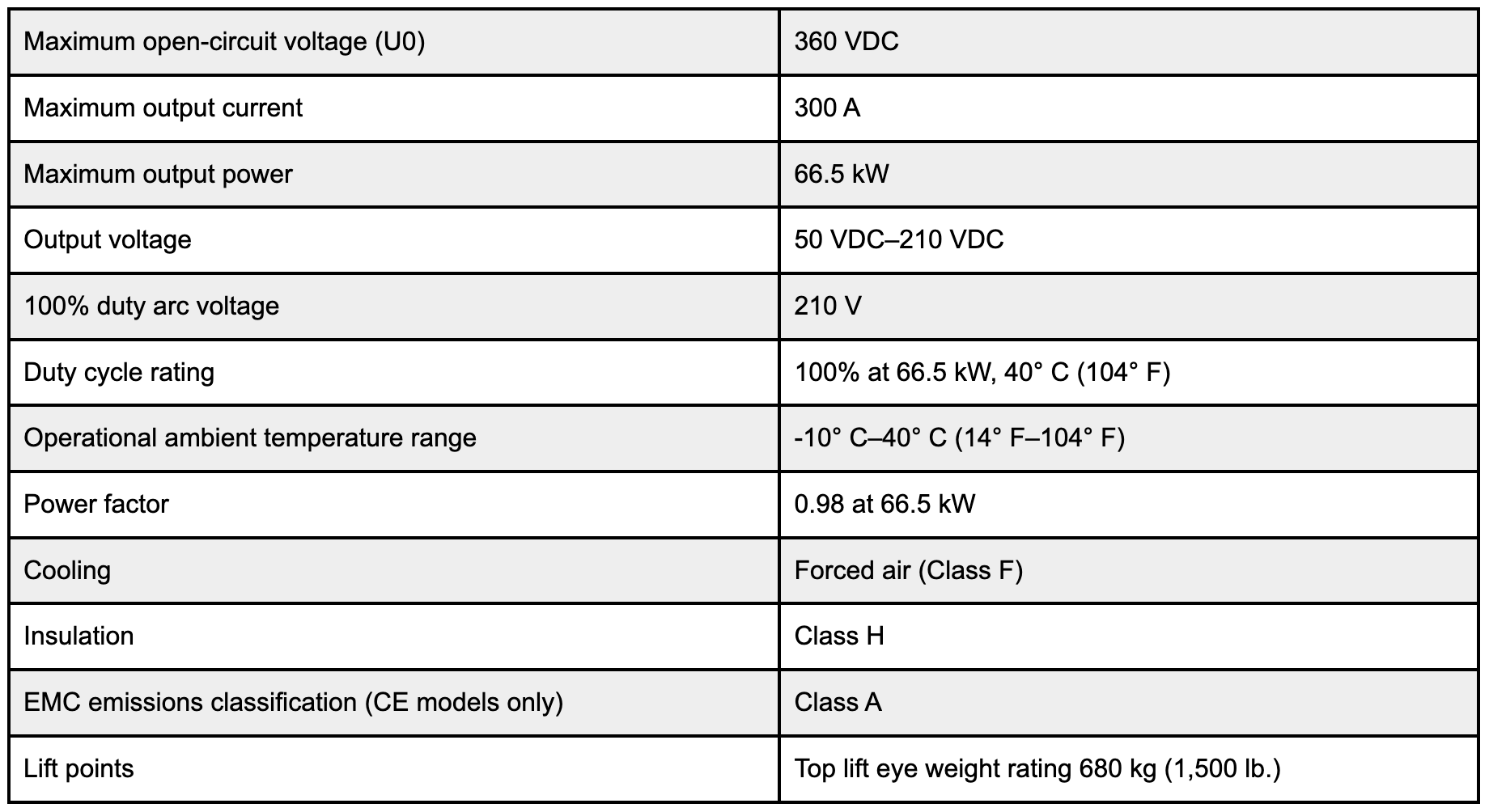

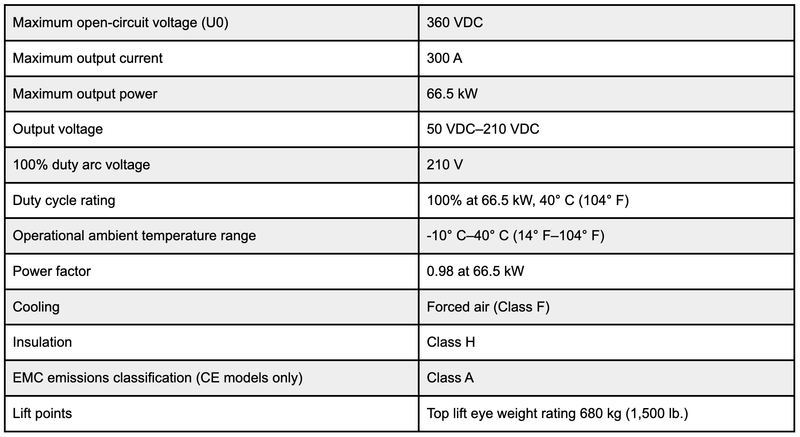

Specifications

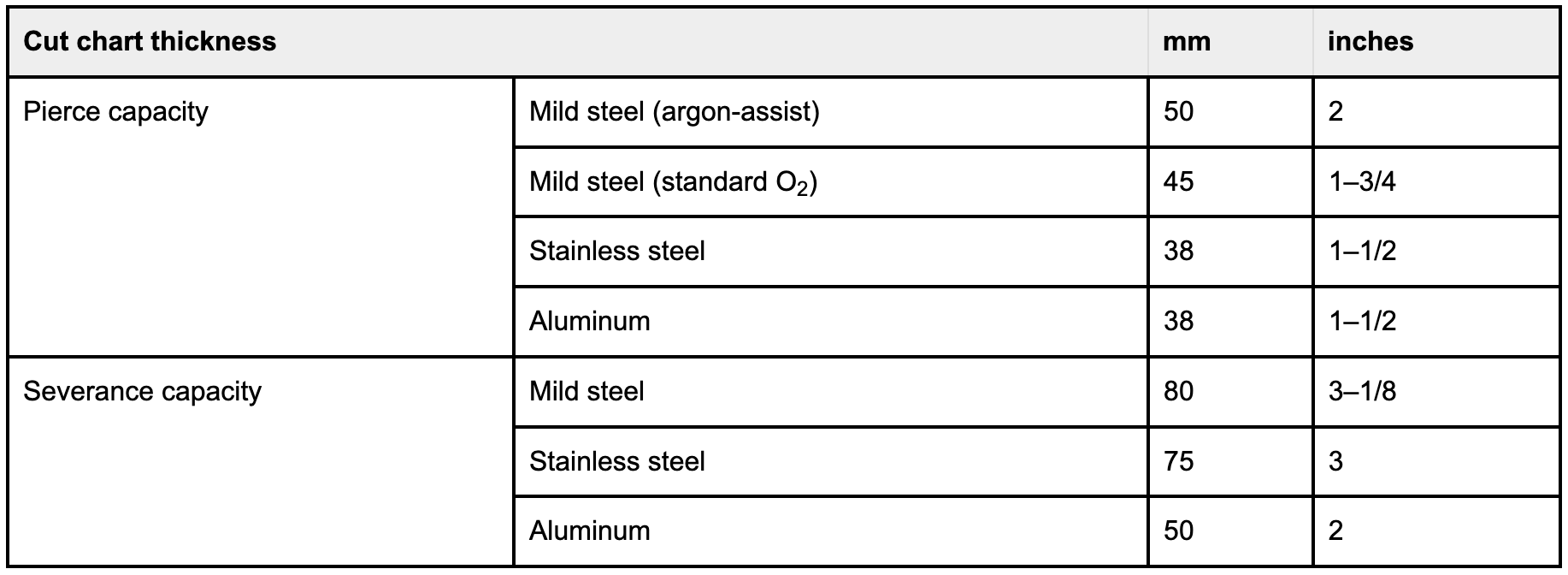

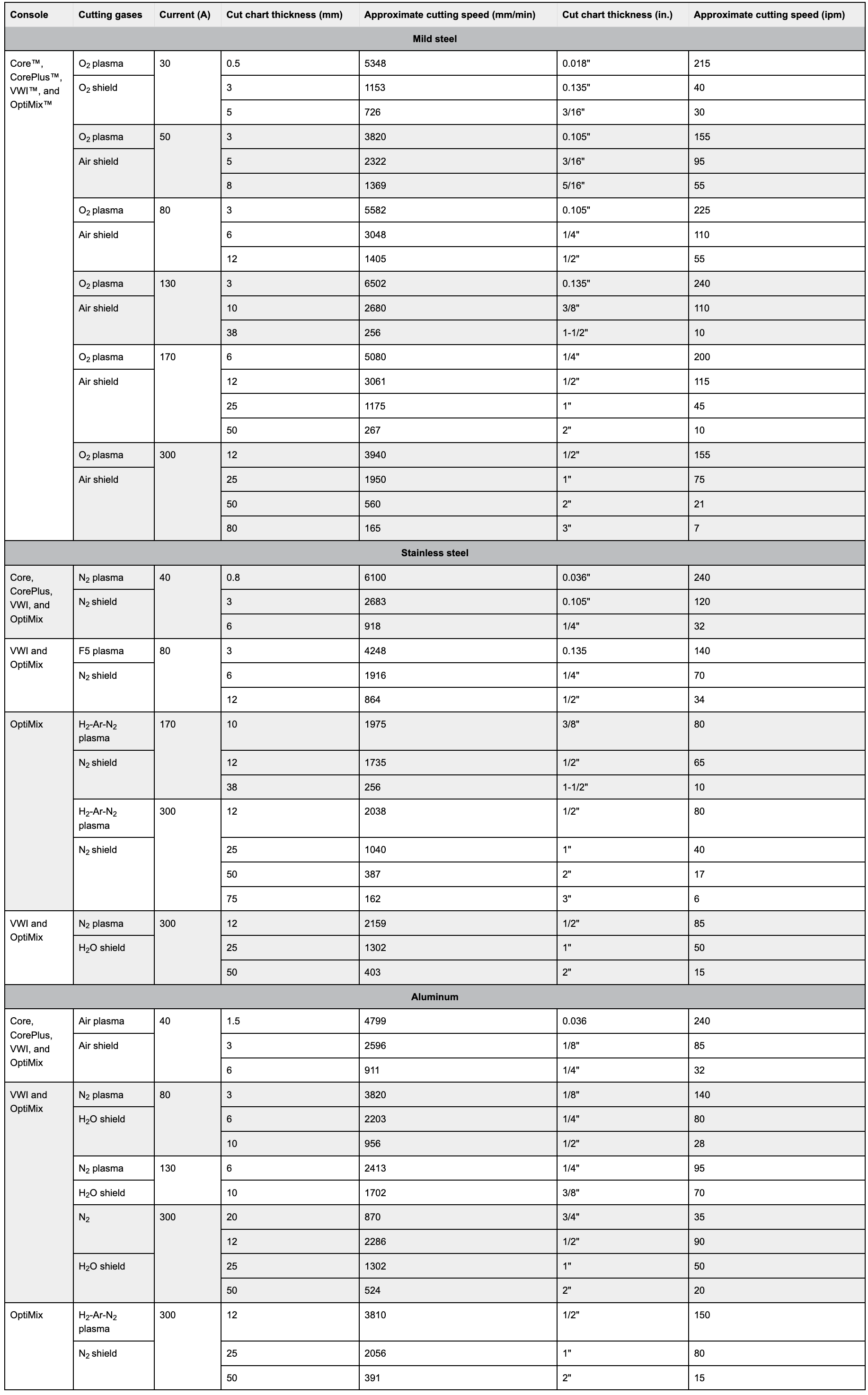

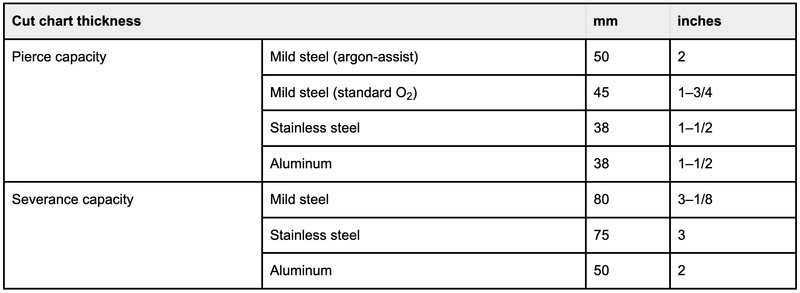

Operating Data
This does not represent a complete list of processes or thicknesses that are available.
Related Hypertherm Products

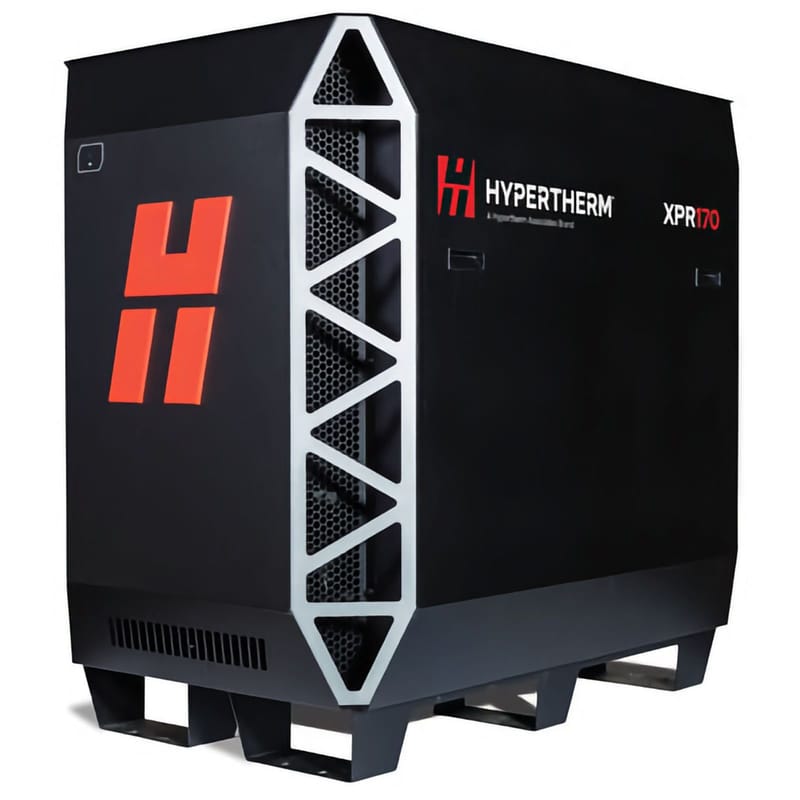

XPR170 Plasma Cutting System

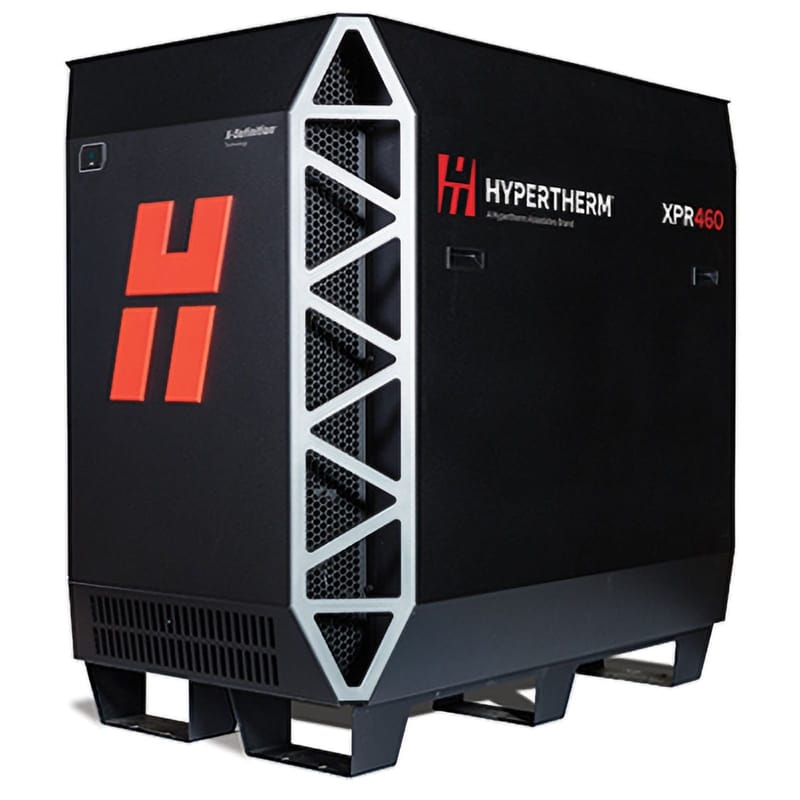

XPR460 Plasma Cutting System
