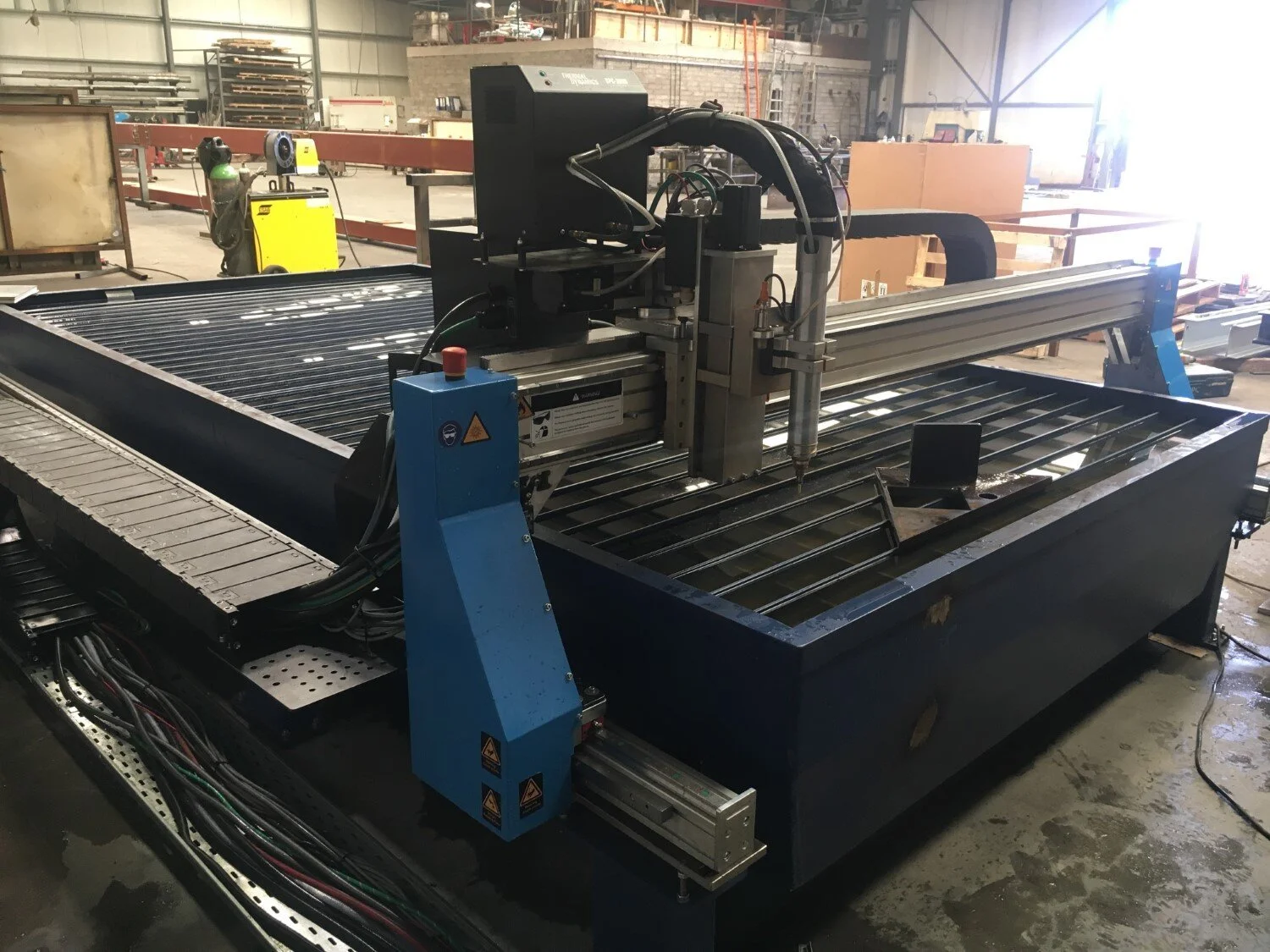

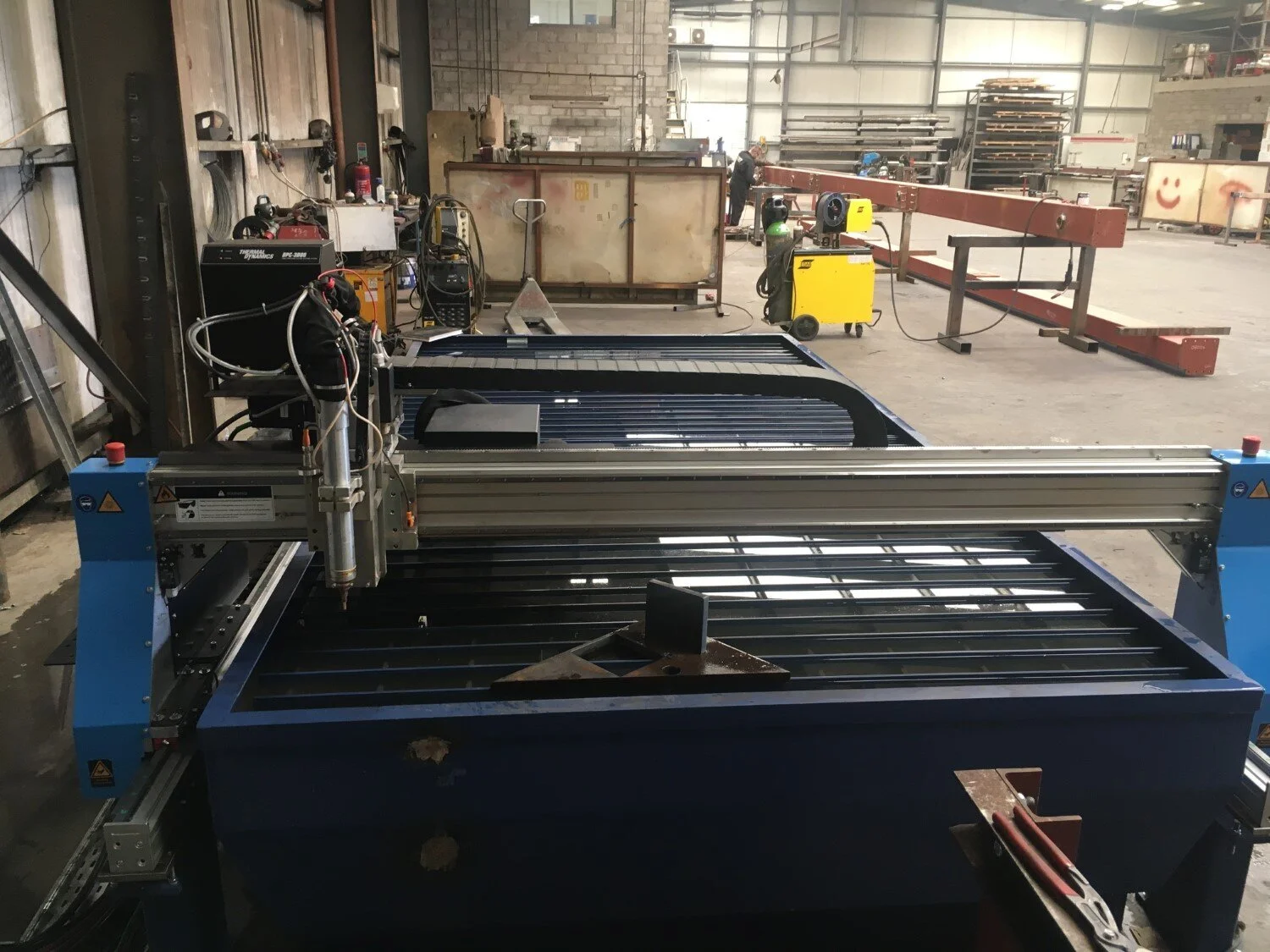

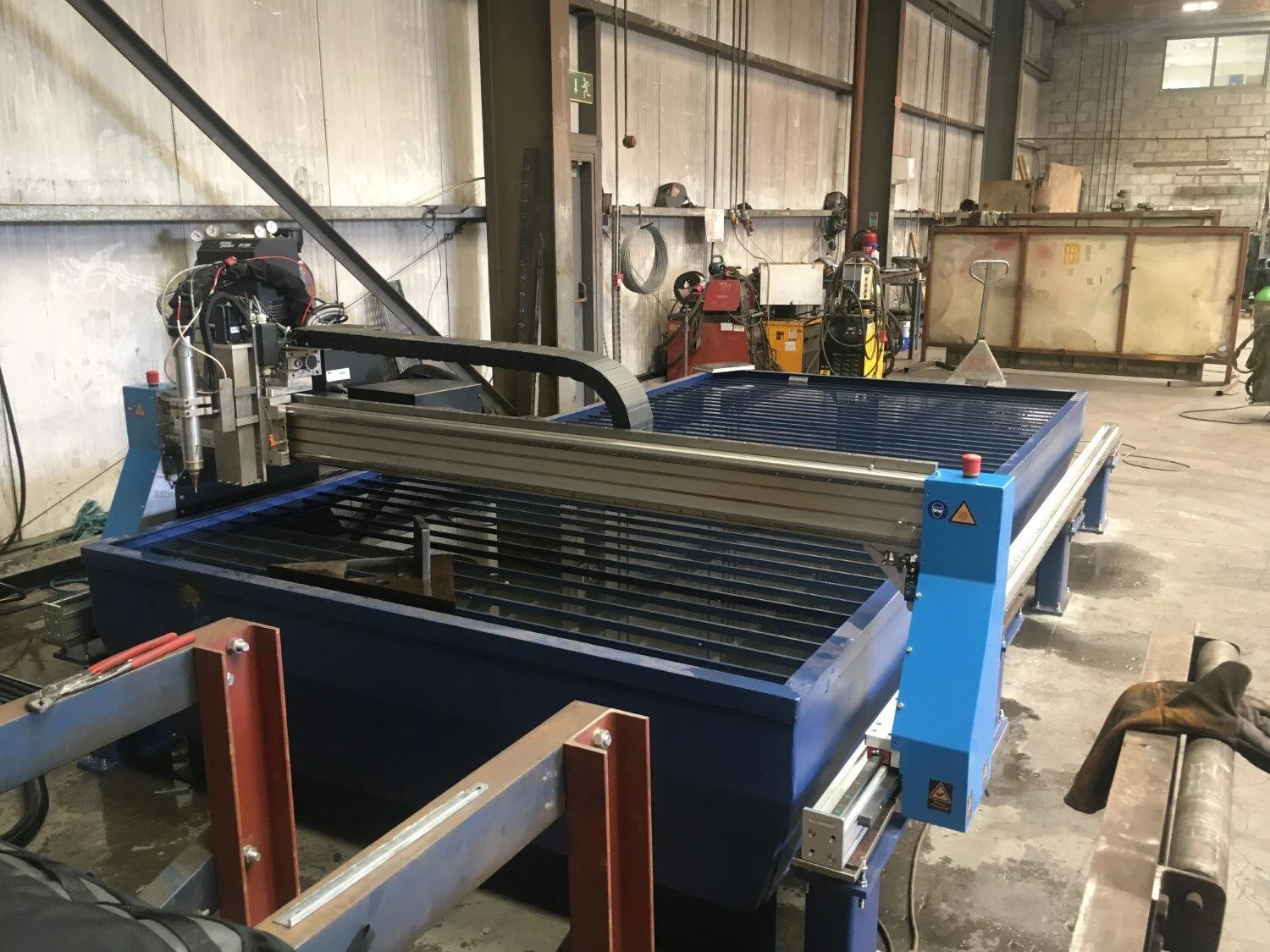

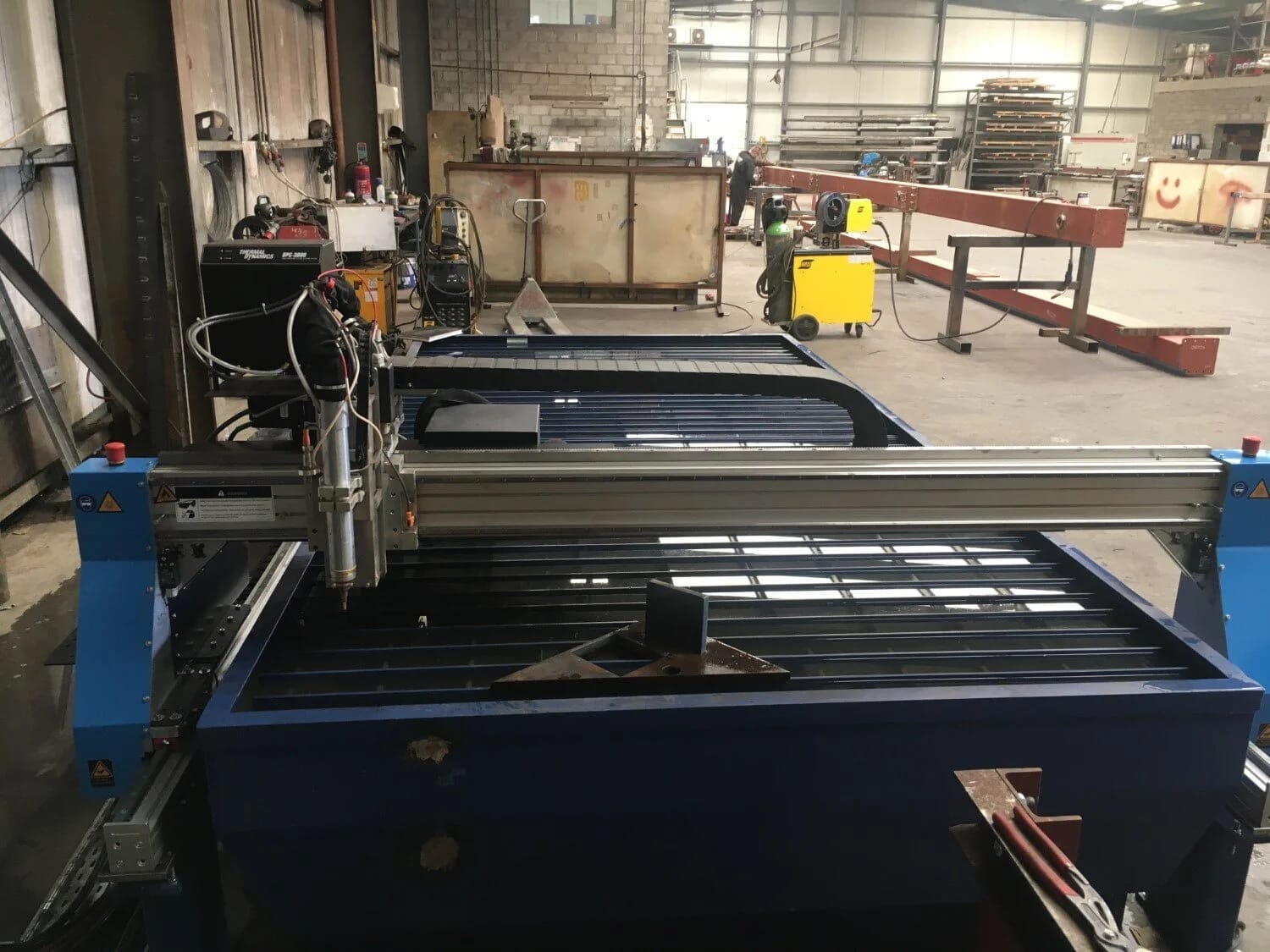

POWERCUT 4000 × 2000 Portal Plasma Cutter System

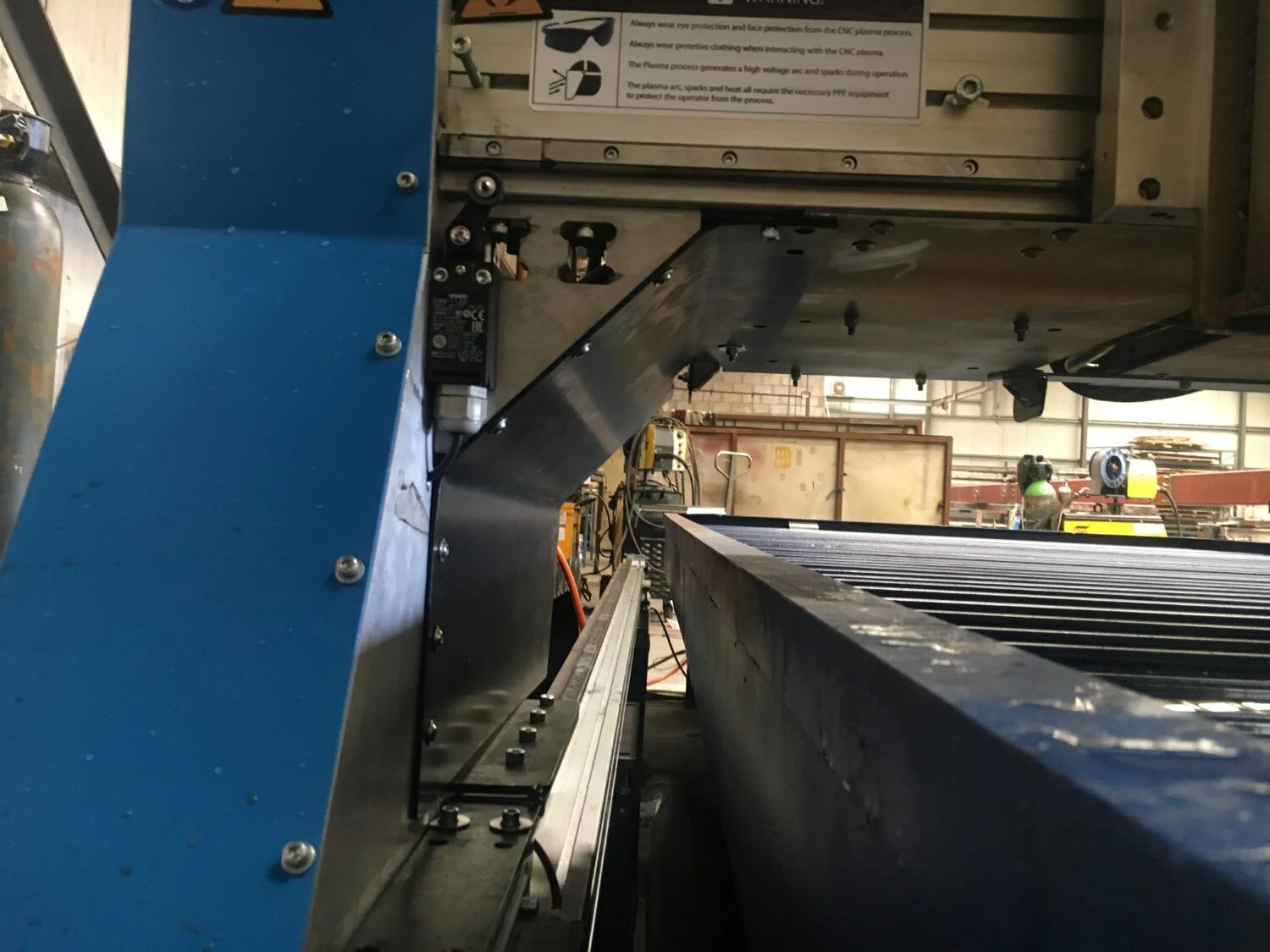

This 4,000 x 2,000 mm system runs on steel islands fixed to the installation floor. Adjustable island tops allow the long rails to be set with a laser level. The long axis uses 25 mm HIWIN rails with a precision-ground rack and pinion to carry the bridge along the table.

• Stated working area of 4,000 x 2,000 mm

• Compatible with the Hypertherm Powermax125 configuration listed by CR PLASMA

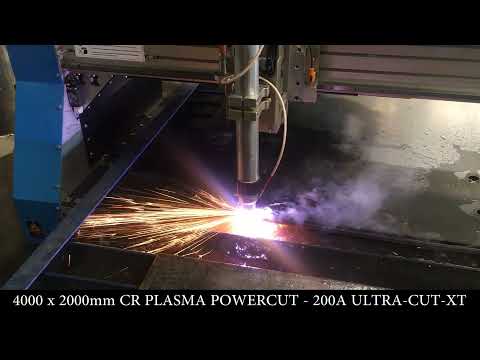

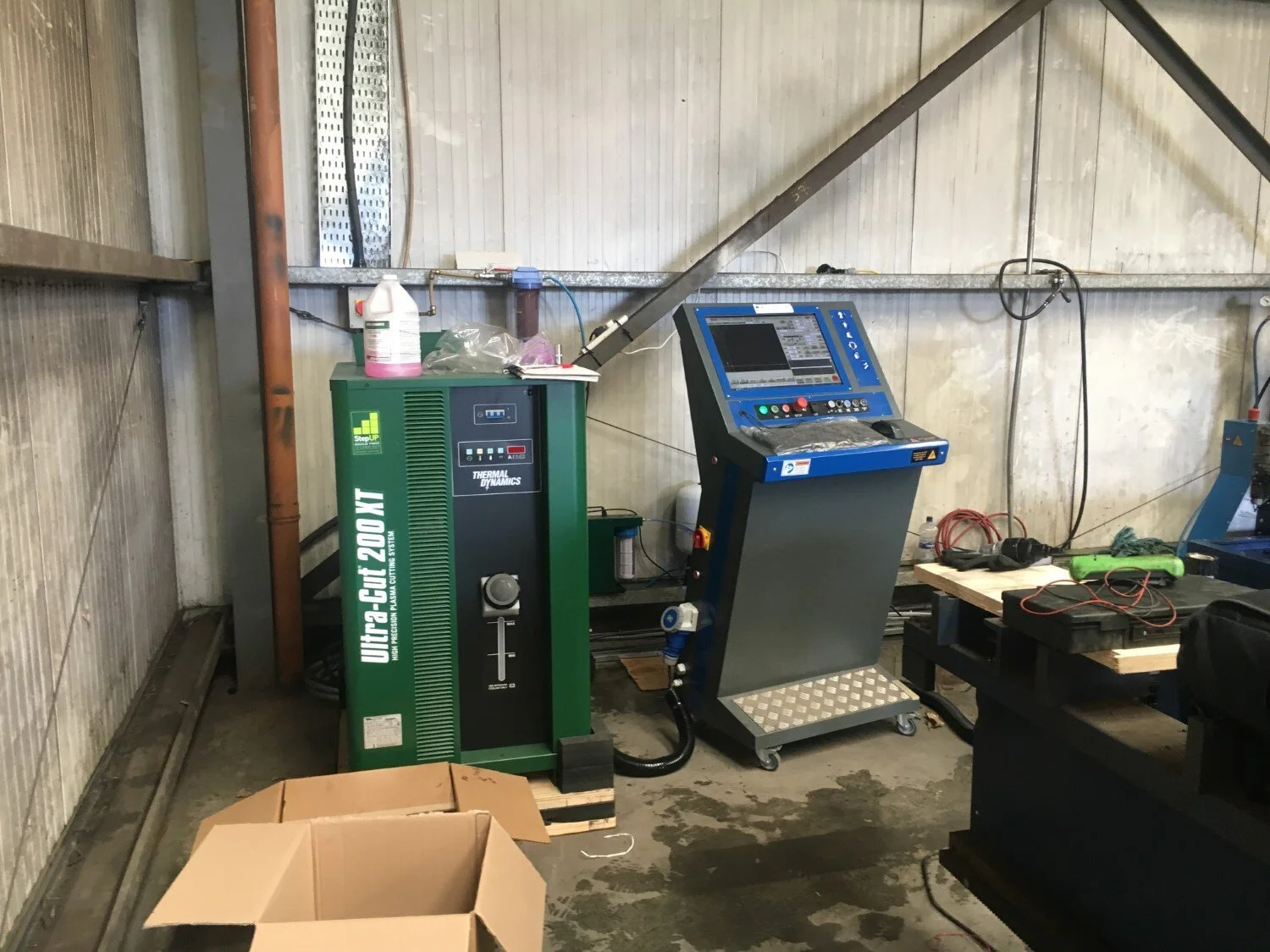

• Compatible with the listed Thermal Dynamics UltraCut XT configuration

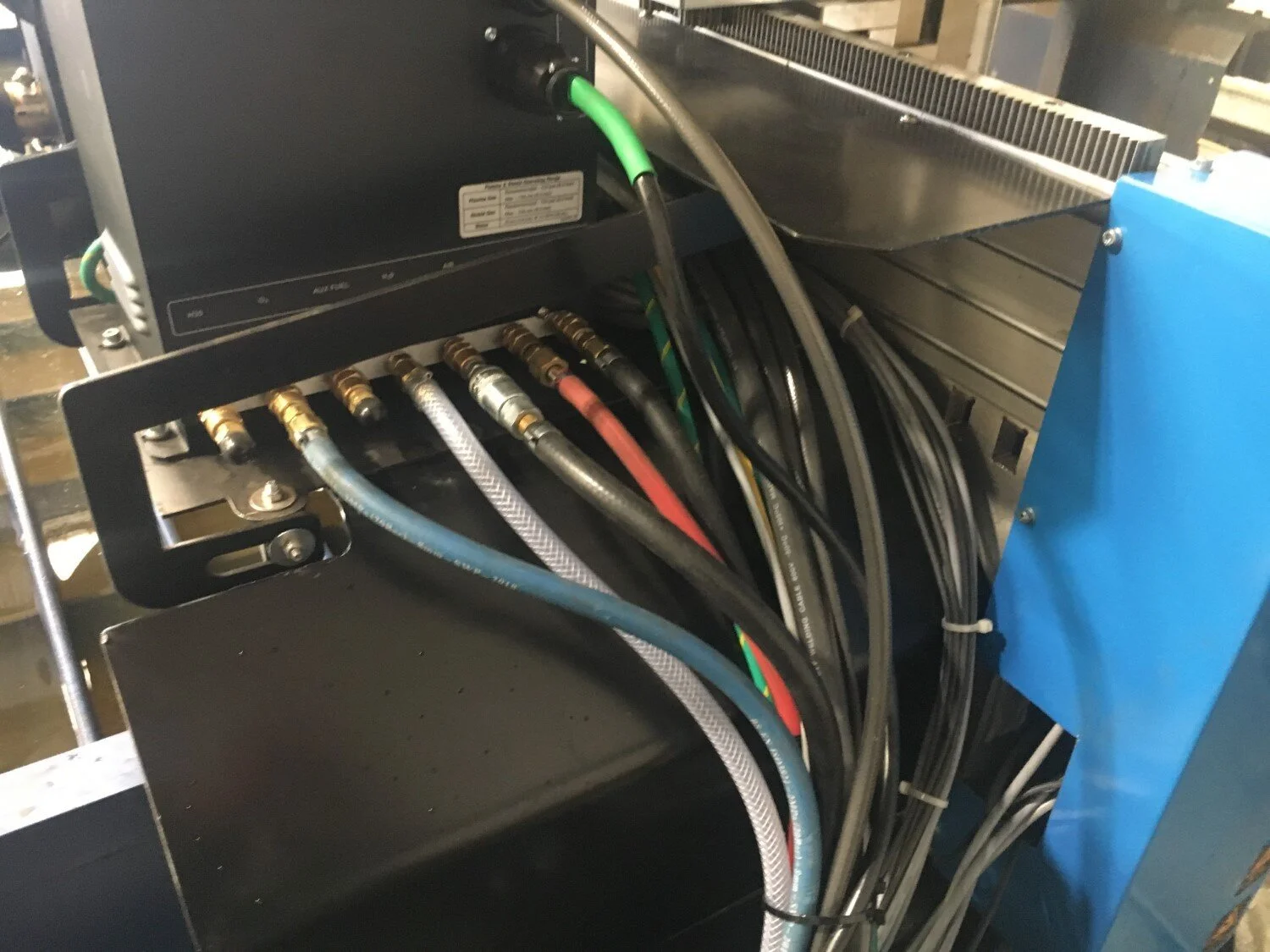

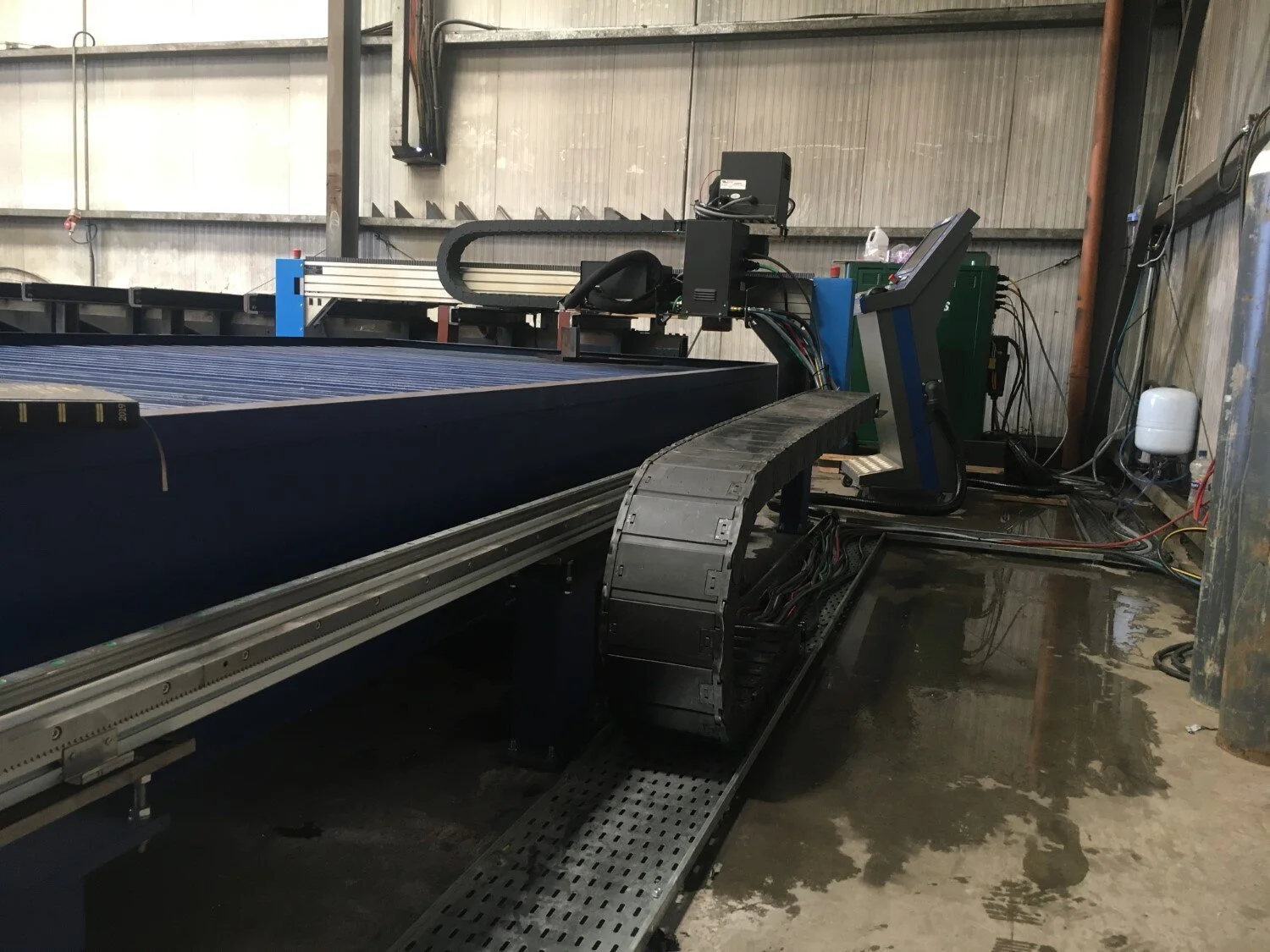

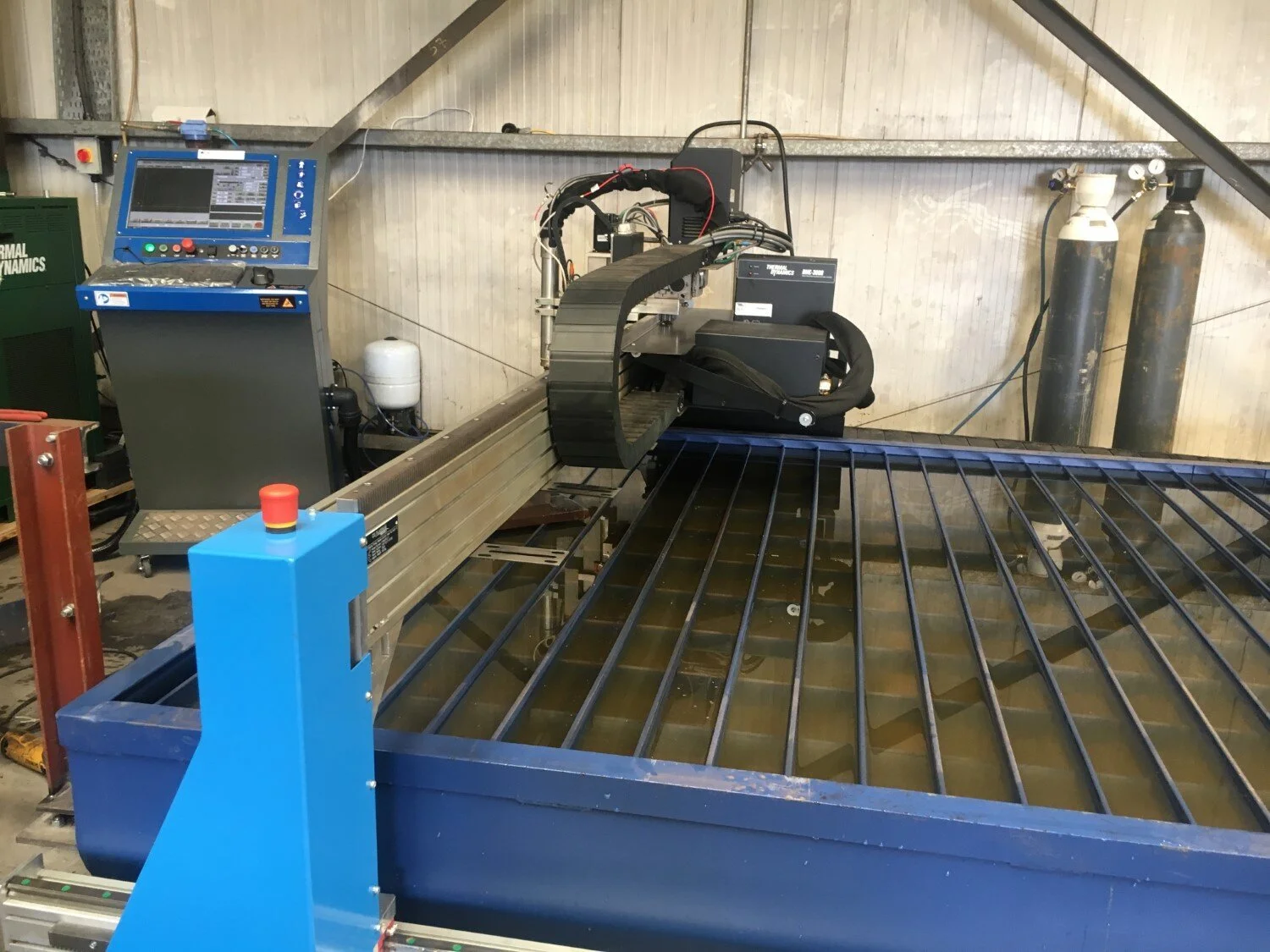

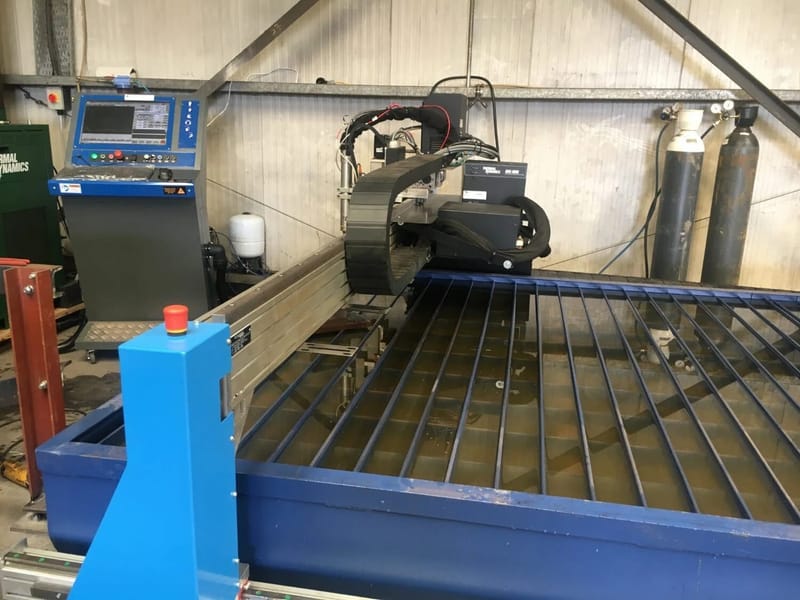

• Sealed IGUS cable chains route the moving services

• Uses the CR PLASMA controller fitted across the POWERCUT range

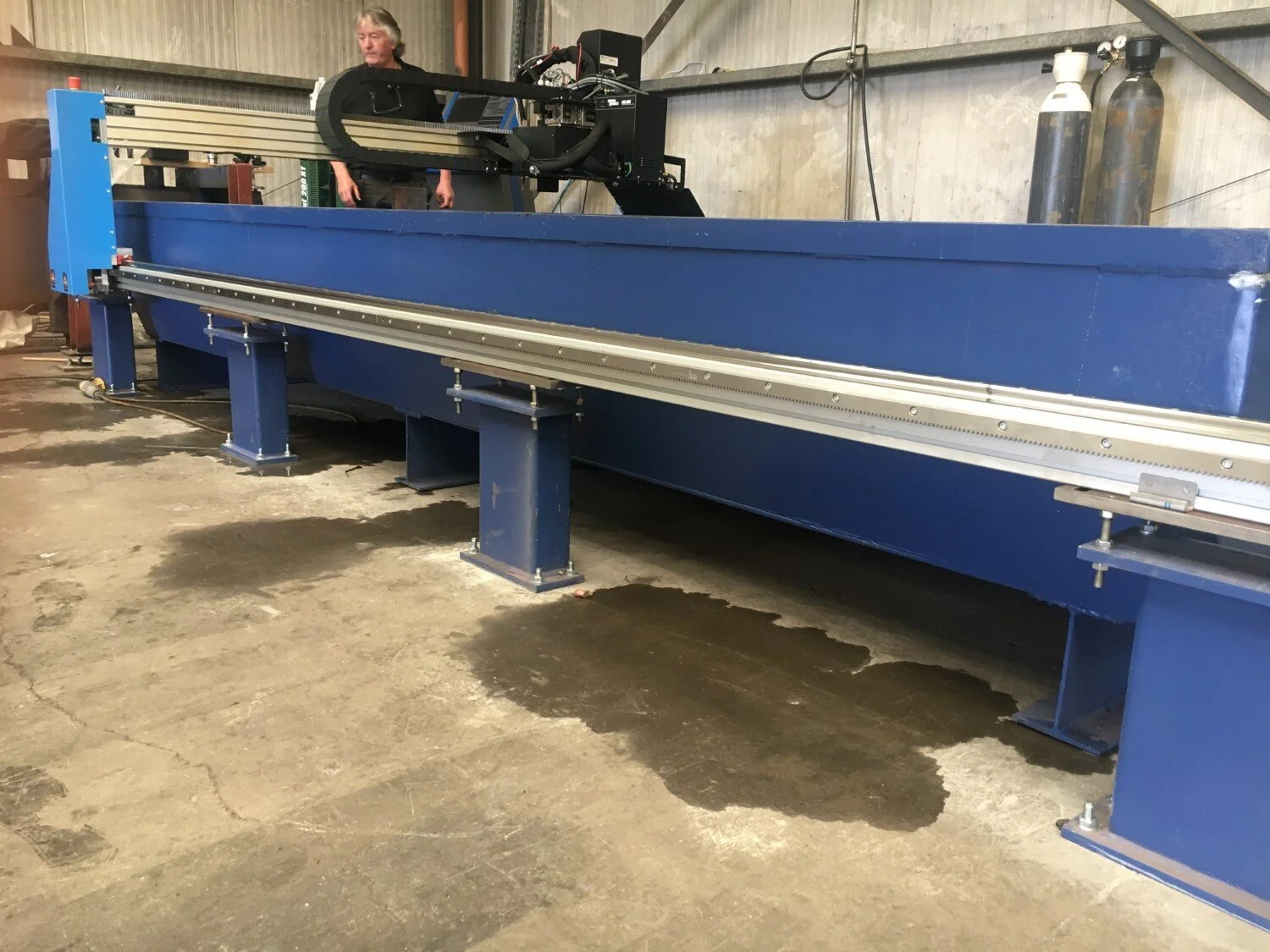

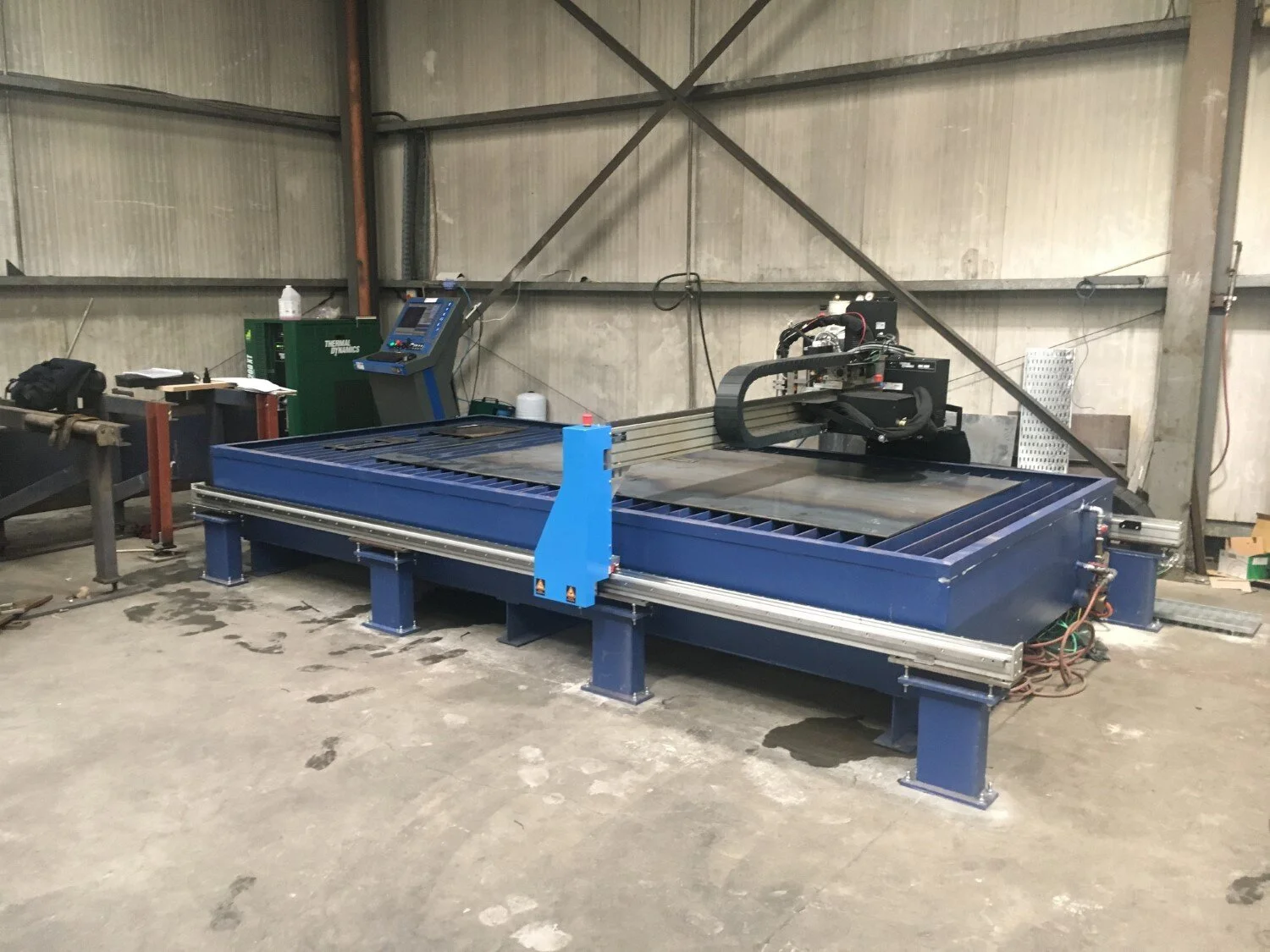

• Floor-mounted steel islands support and align the long-axis running gear

• CR PLASMA Z-axis torch lifter using a ballscrew and HIWIN rails

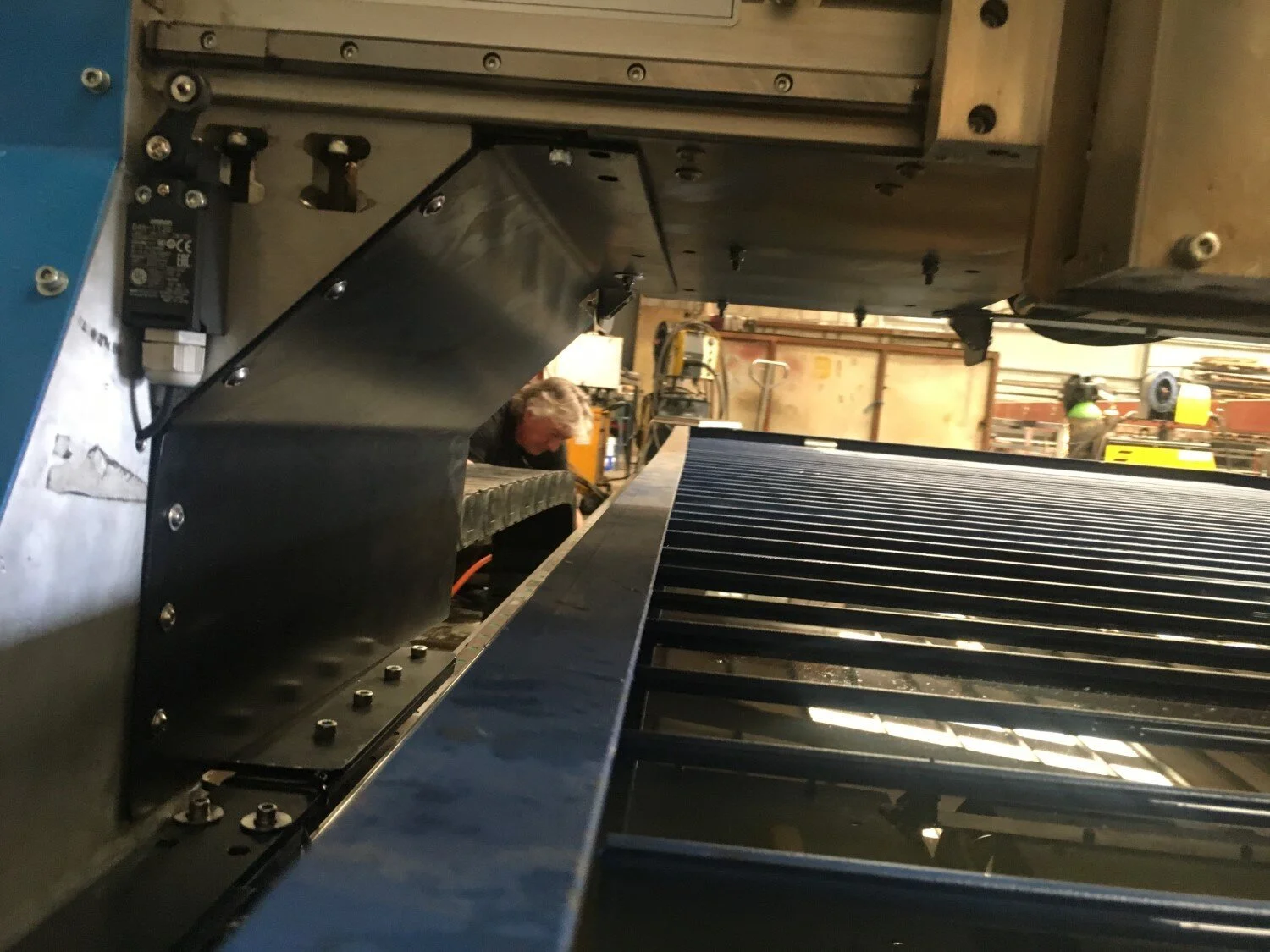

• Dual-pinion anti-backlash gearboxes position the bridge along the machine axes

The listed drive specification combines HIWIN rails, precision-ground racks and pinions, and dual-pinion anti-backlash gearboxes. Machine operation is handled by the CR PLASMA controller and its documented setup and recovery functions.
