POWERCUT 6000 × 2000 Portal Plasma Cutter

The 6000 x 2000mm portal plasma machine is used to allow loading of two full sheets 3000mm long at once. Even at 6000 x 2000mm stroke, the machine still maintains the same high-level accuracy and hole quality of the standard power cut. The system uses the same precision-ground rack and pinion machine drive system we run on all our machines.

• 6000 x 2000mm machine working area

• Hypertherm 125PMX compatible

• Thermal Dynamics ULTRA Cut XT compatible.

• All cable chain management uses fully sealed chains from IGUS

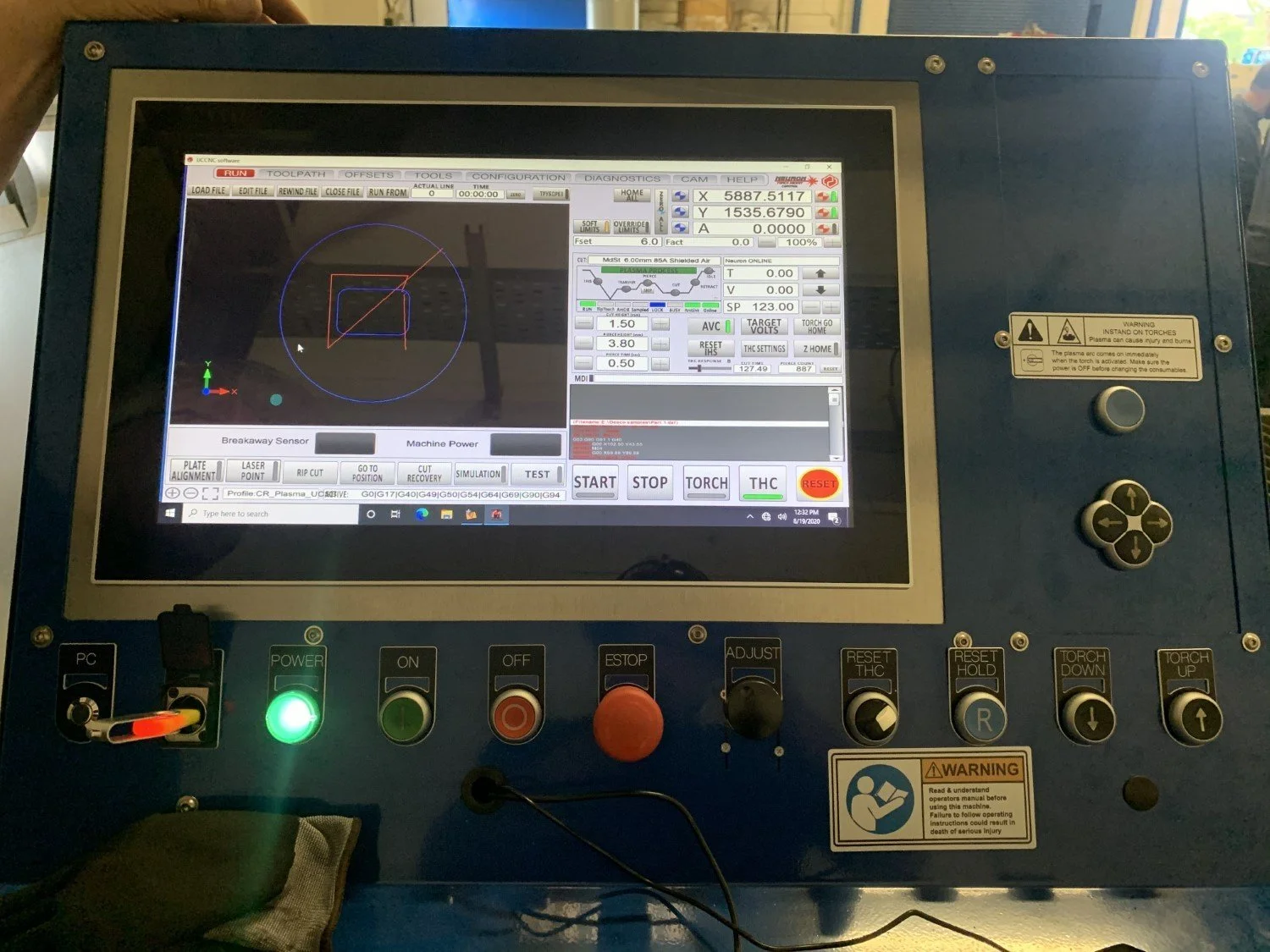

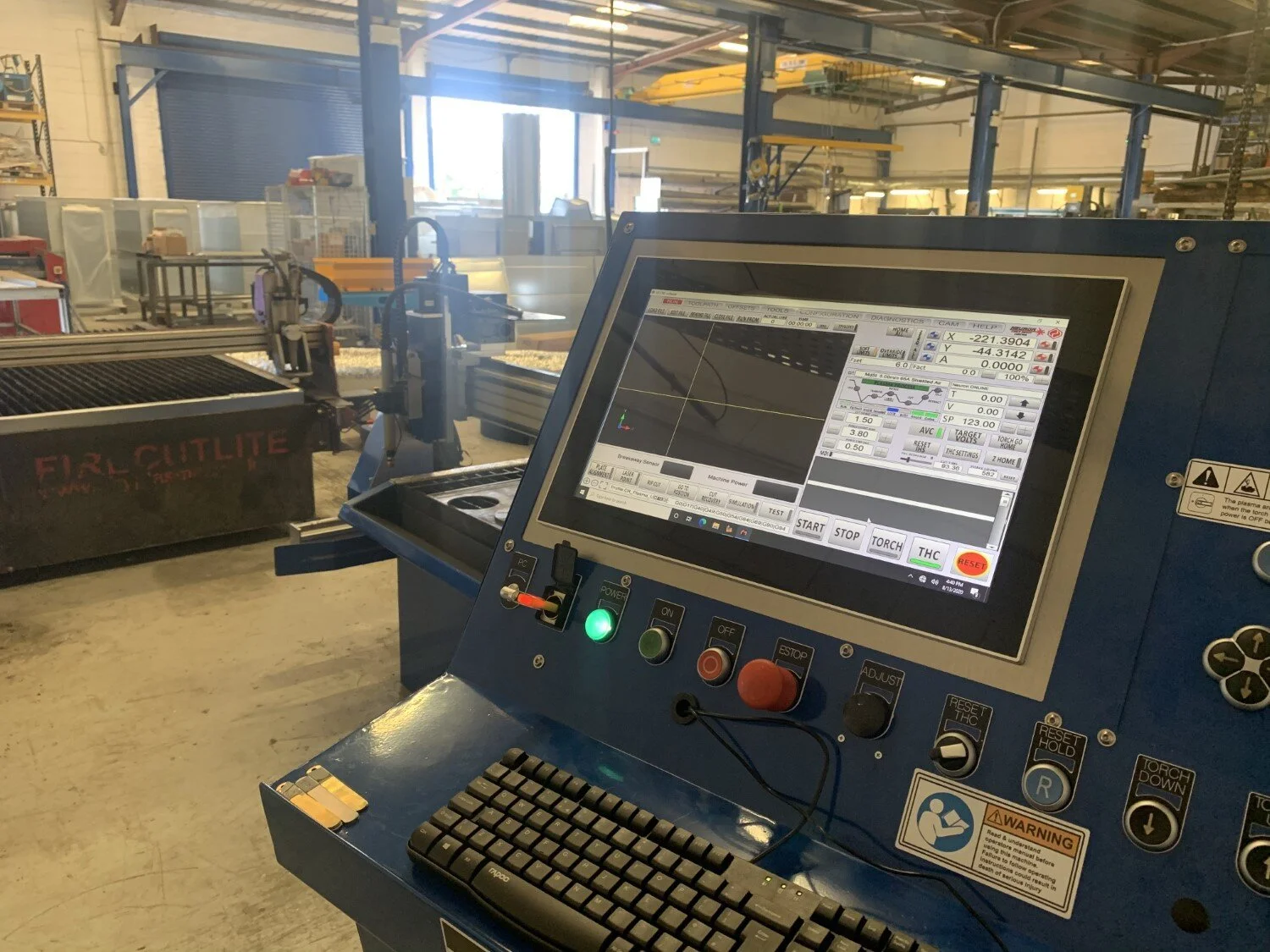

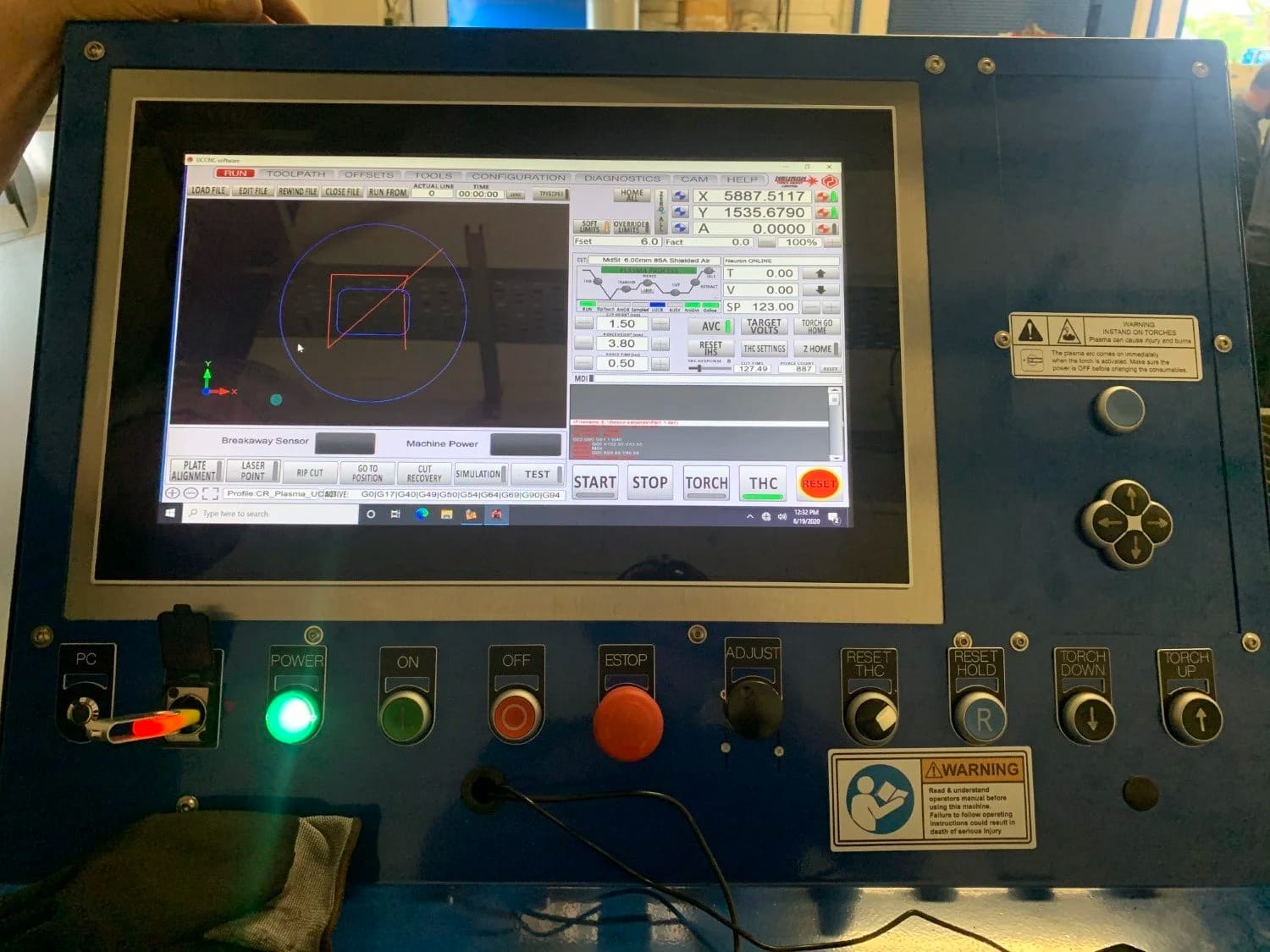

• Running the standard CR PLASMA controller on all machines in the range

• Steel Islands bolted to the floor provide the basis for the machine's running gear

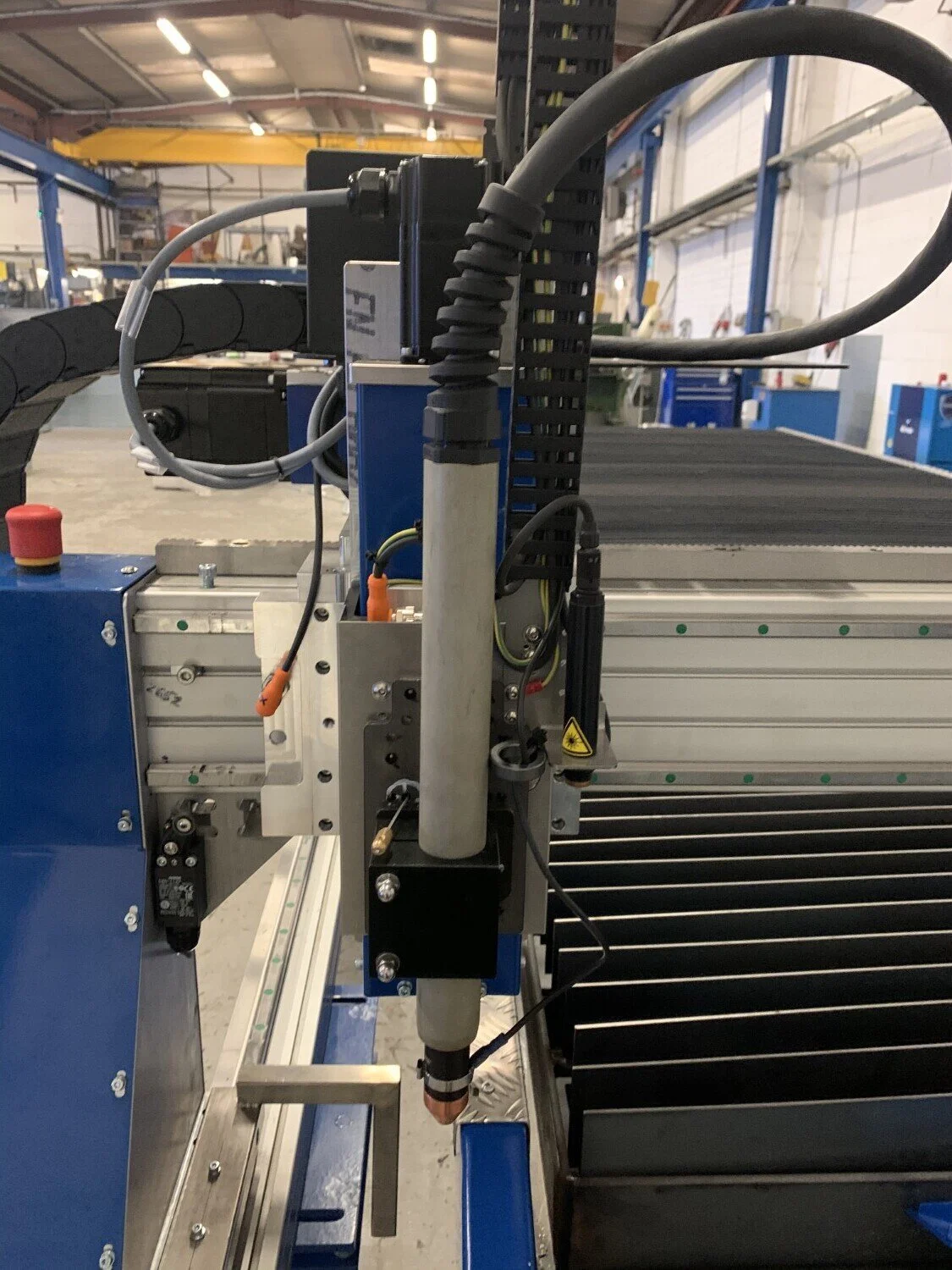

• CR PLASMA designed torch post Z-axis lifter, running ballscrews and HIWIN rails

• Dual pinion anti-backlash gearboxes for the ultimate accuracy of torch position over machine life

CR PLASMA Portal machines • Long axis travel • Compact footprint

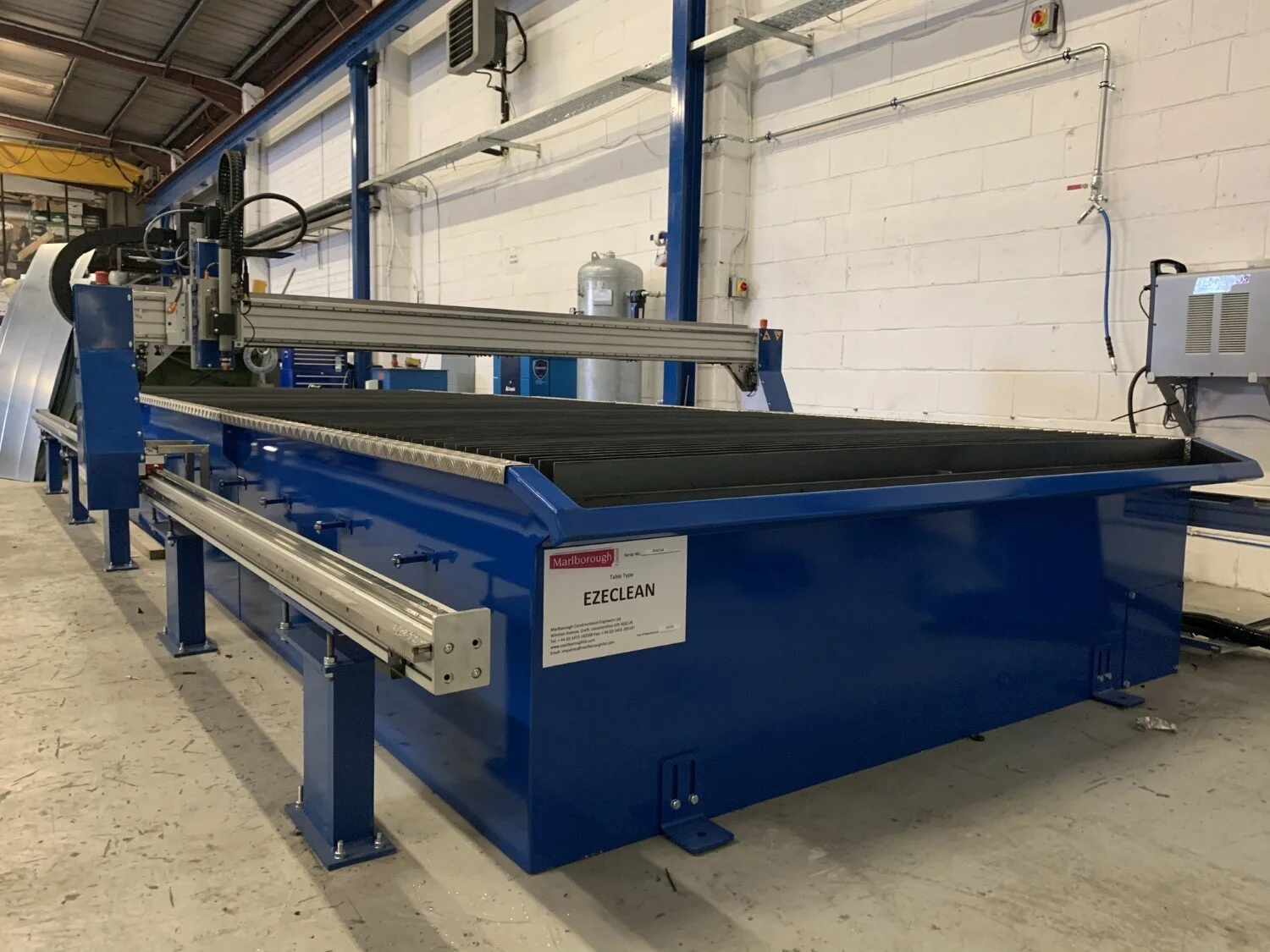

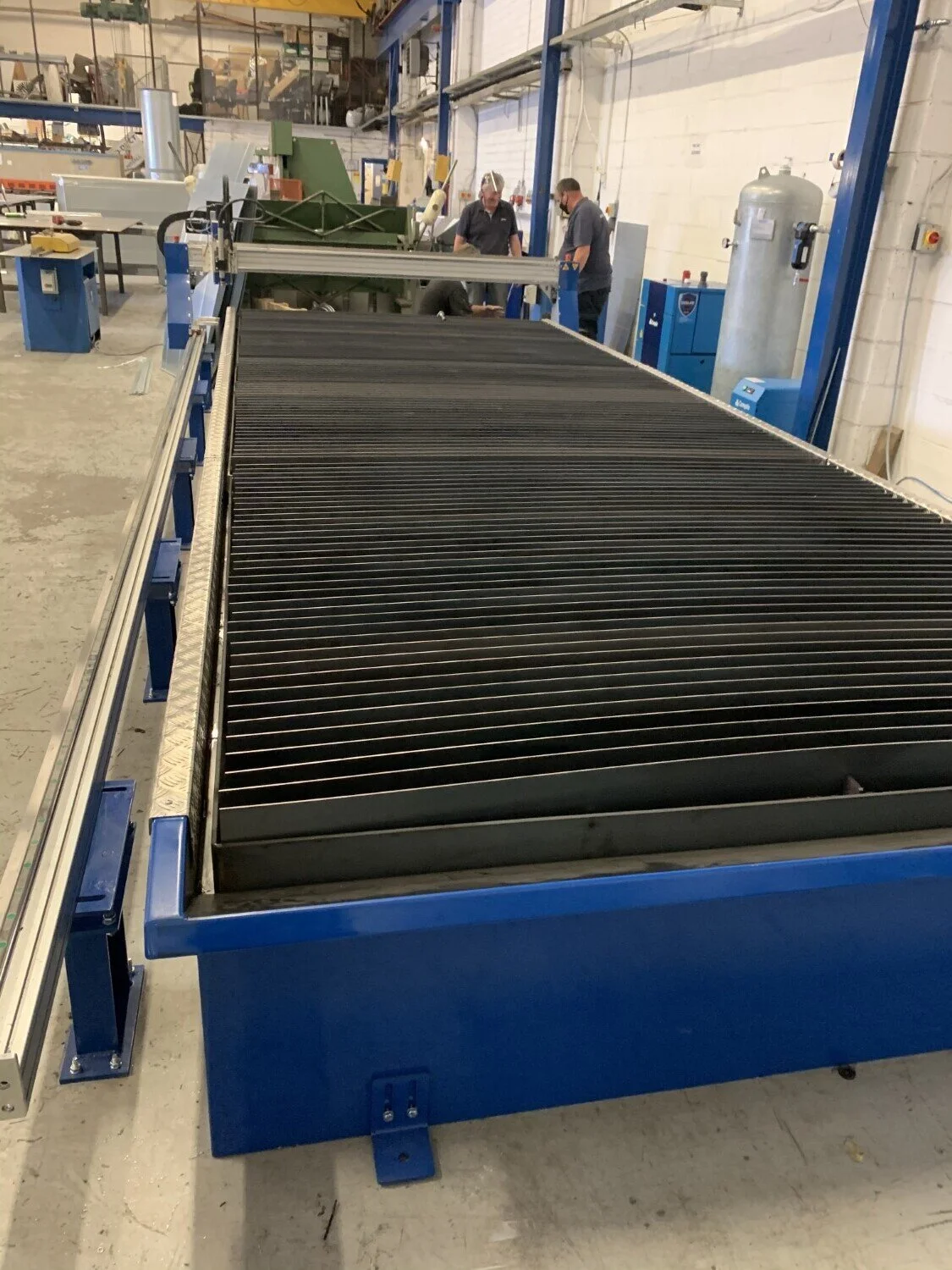

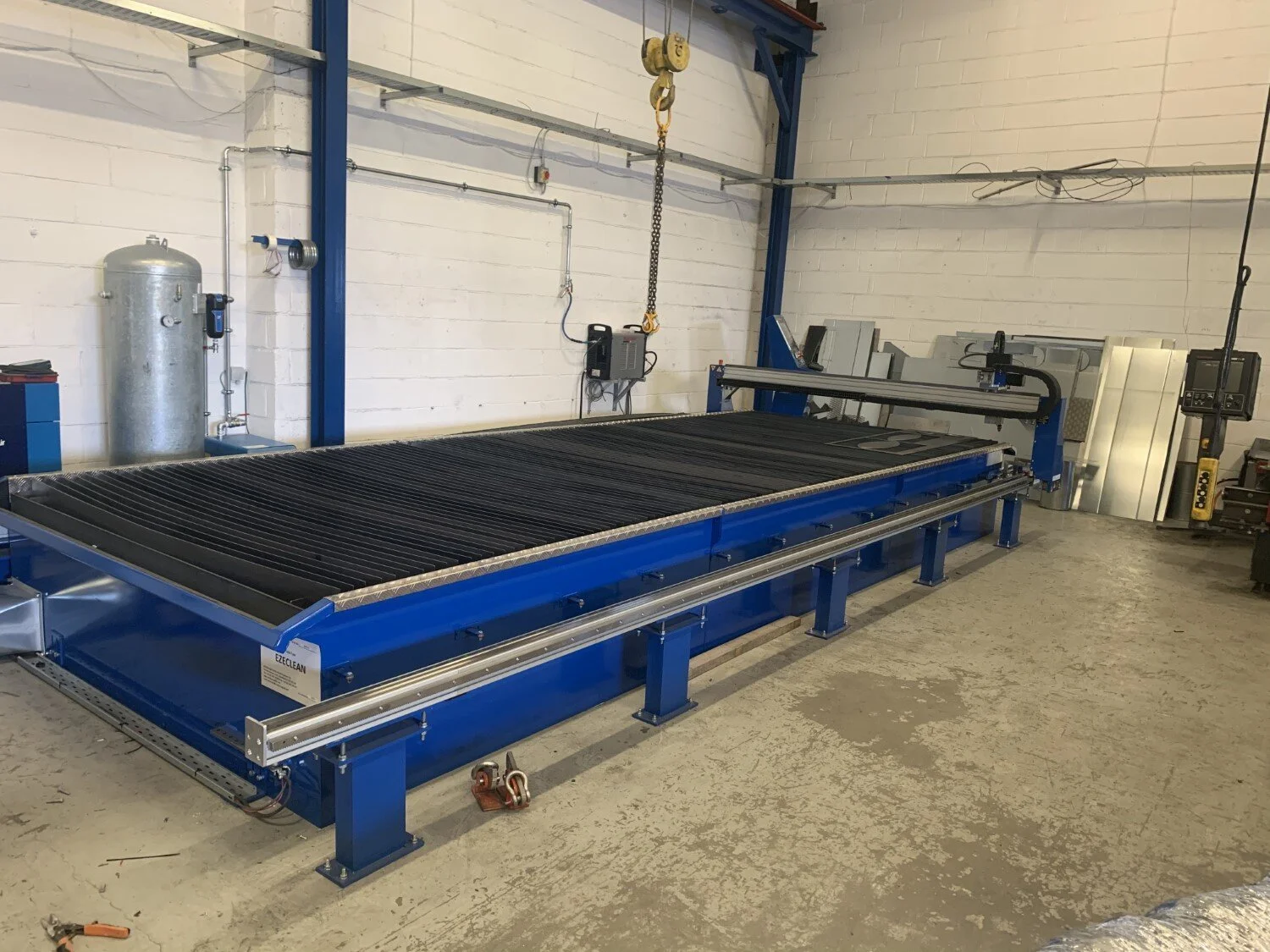

All the CR PLASMA portal machines are bolted to the floor with specially designed steel islands. The steel islands allow adjustment of the long-axis drive system for smooth level motion. All island surfaces are laser-aligned and carefully checked.

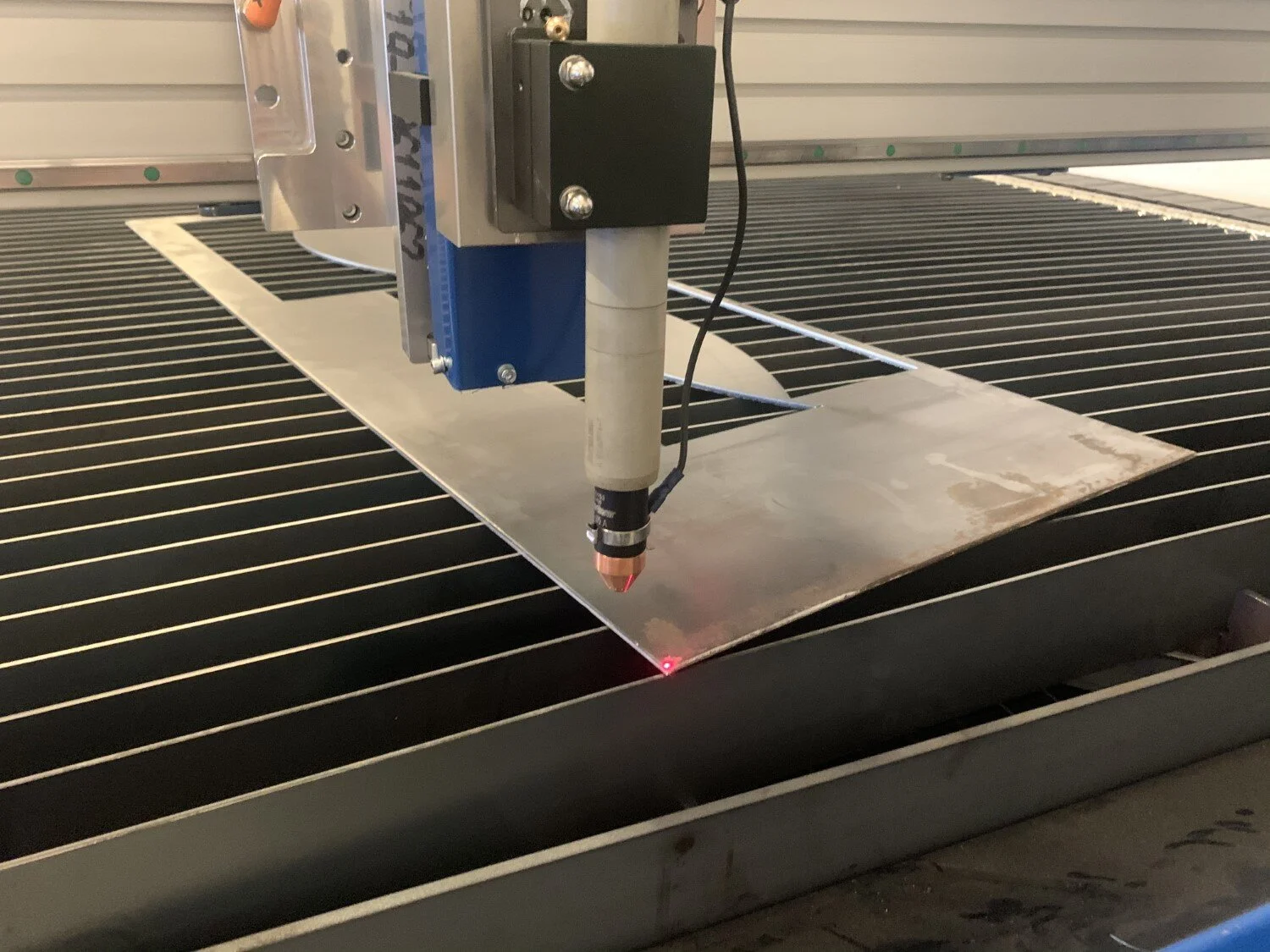

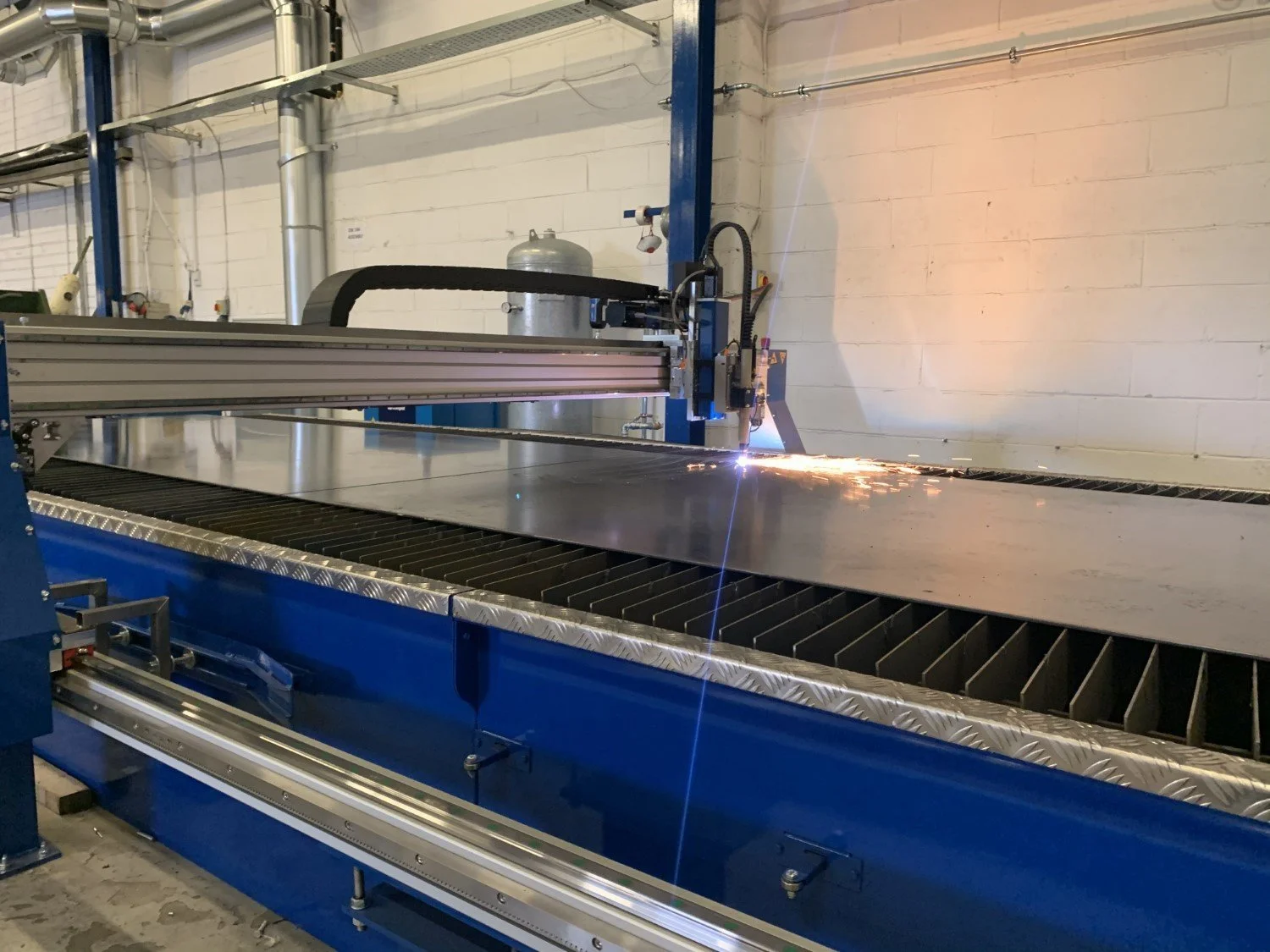

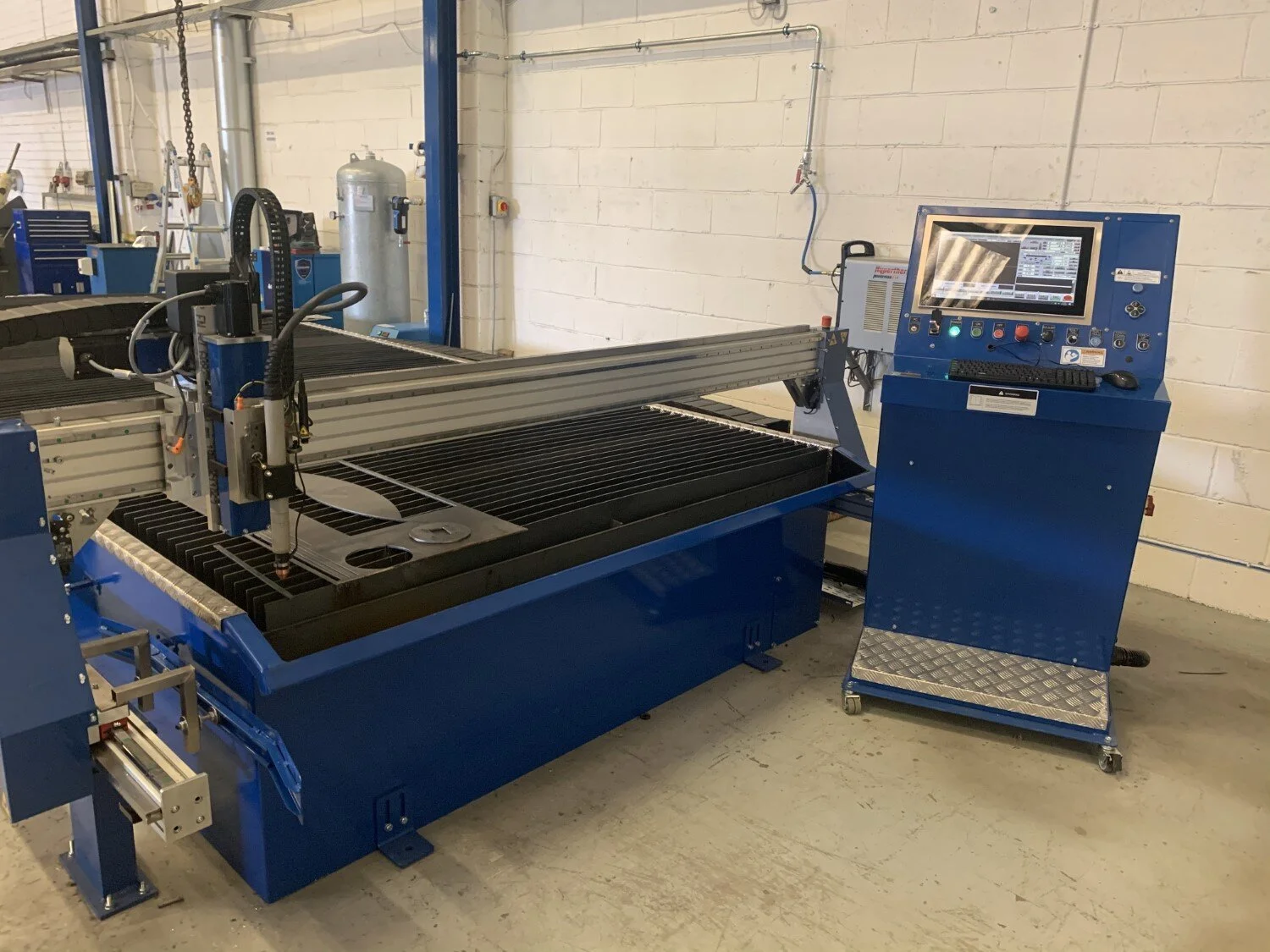

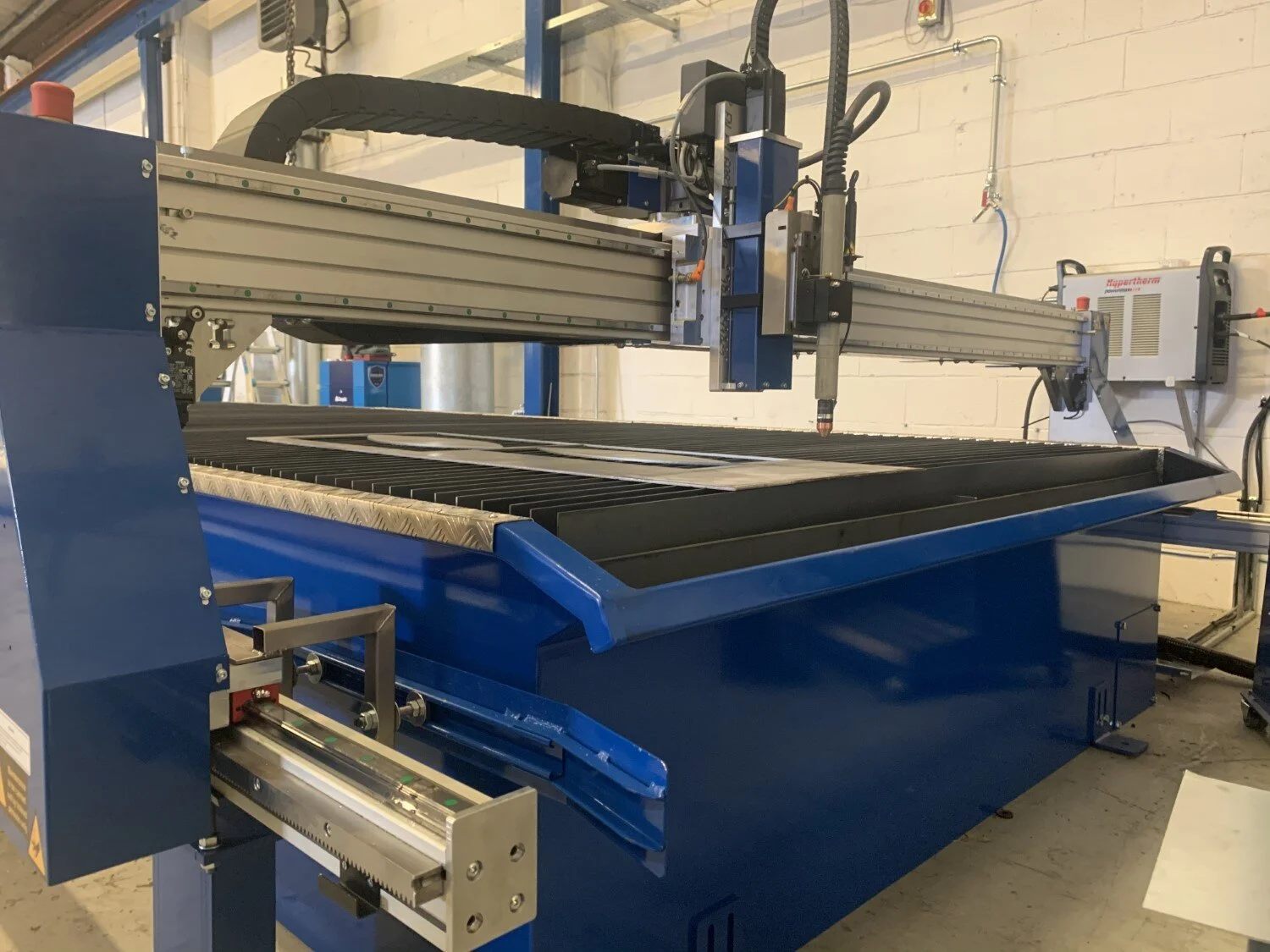

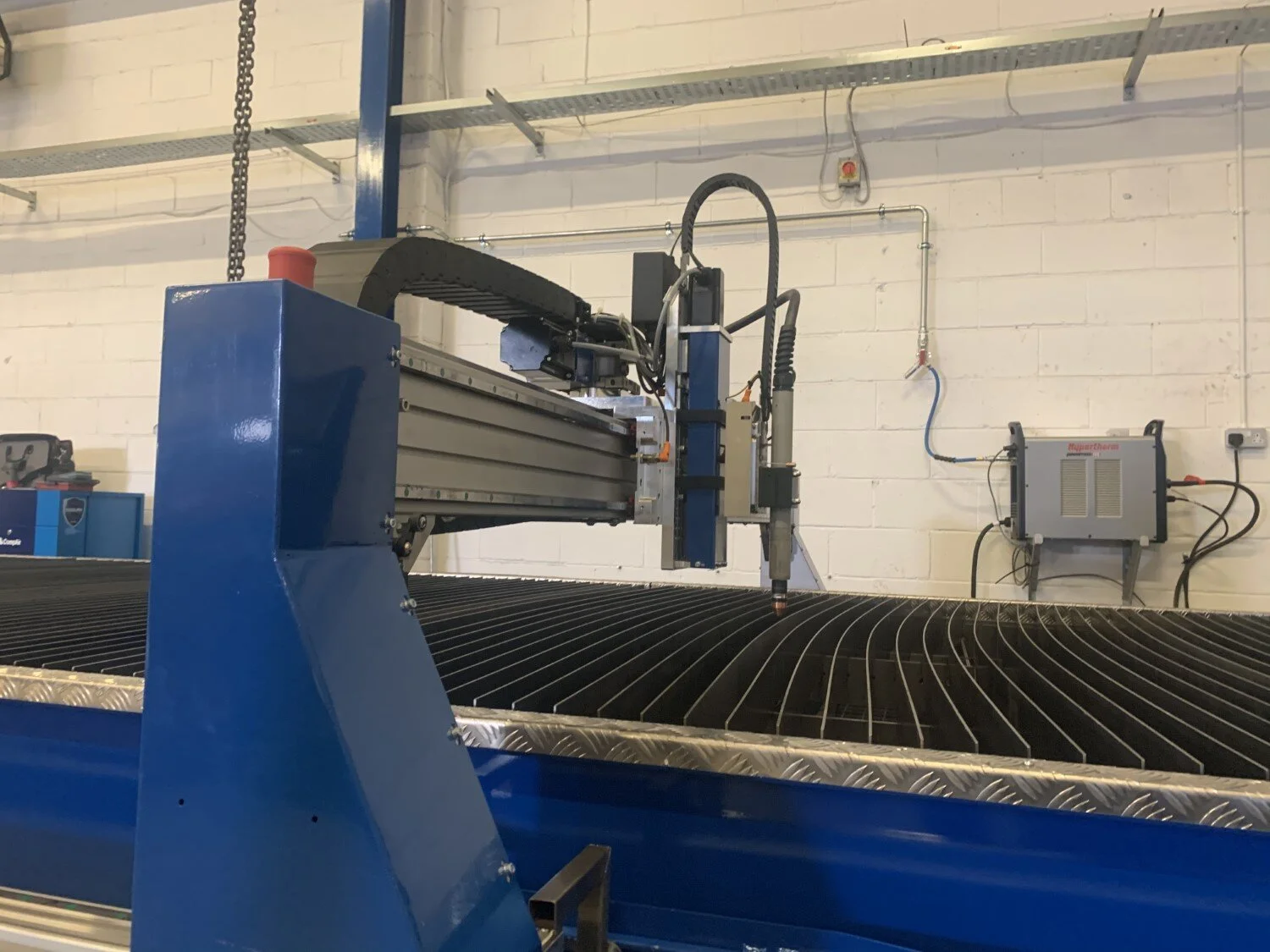

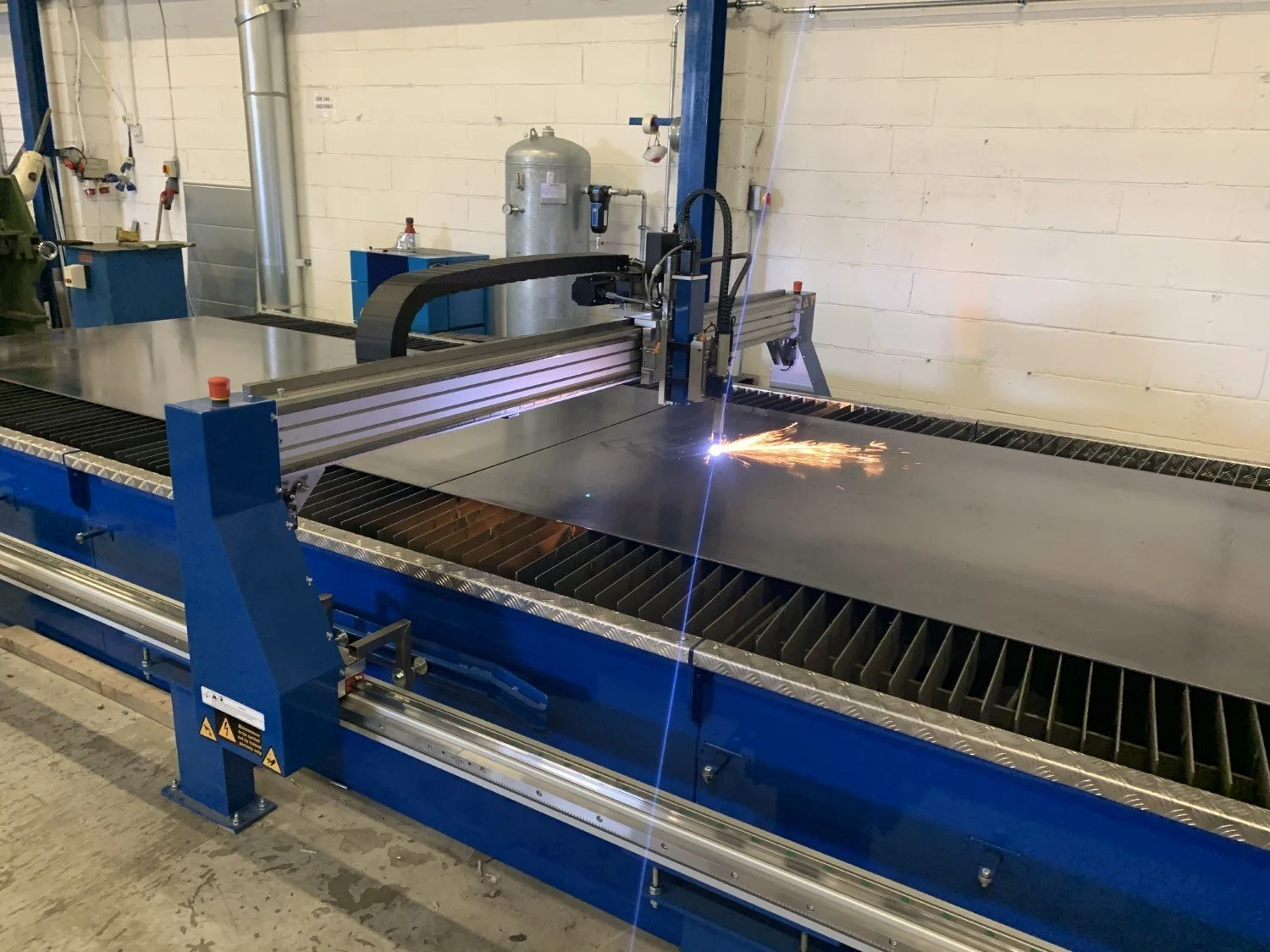

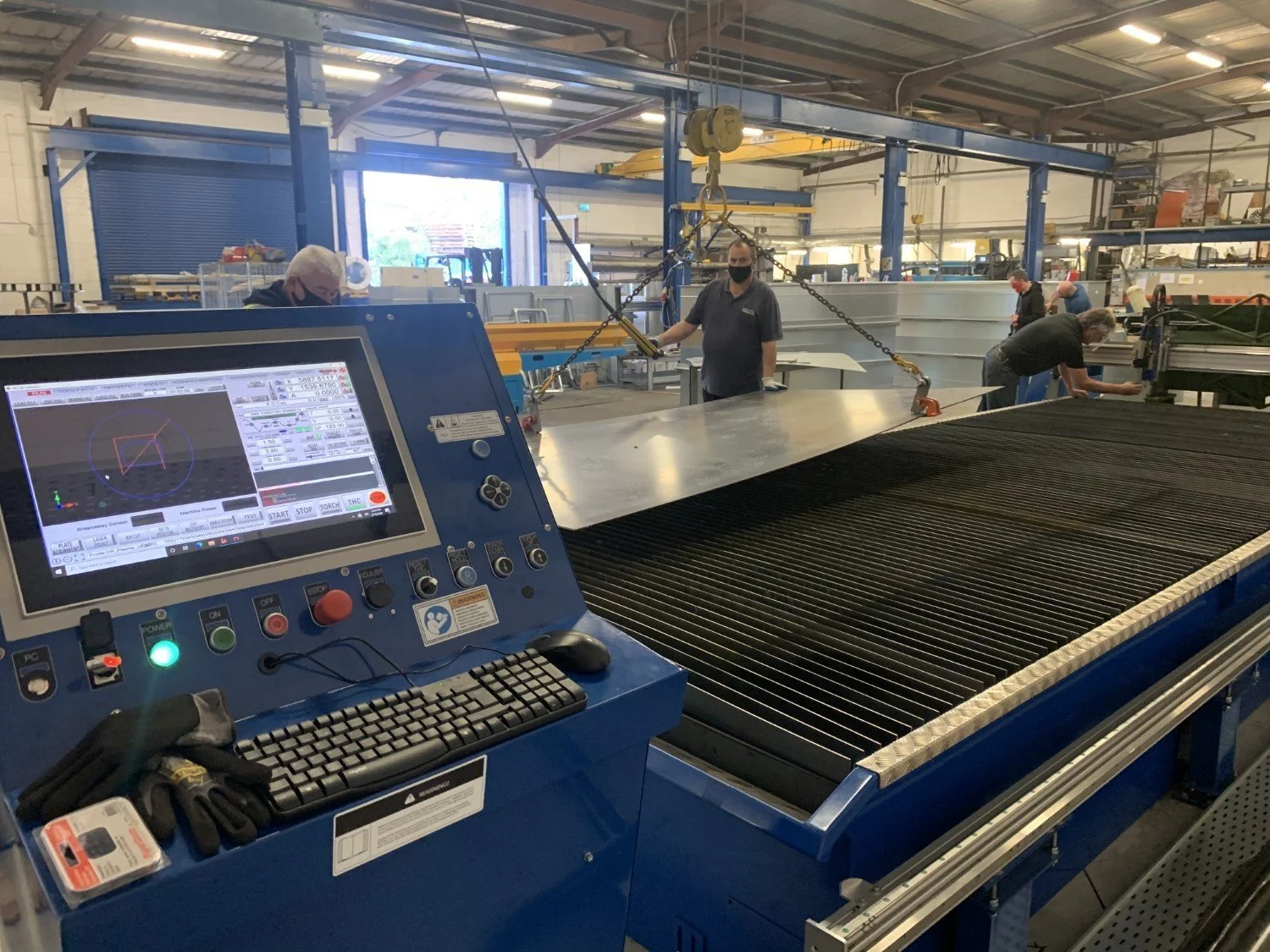

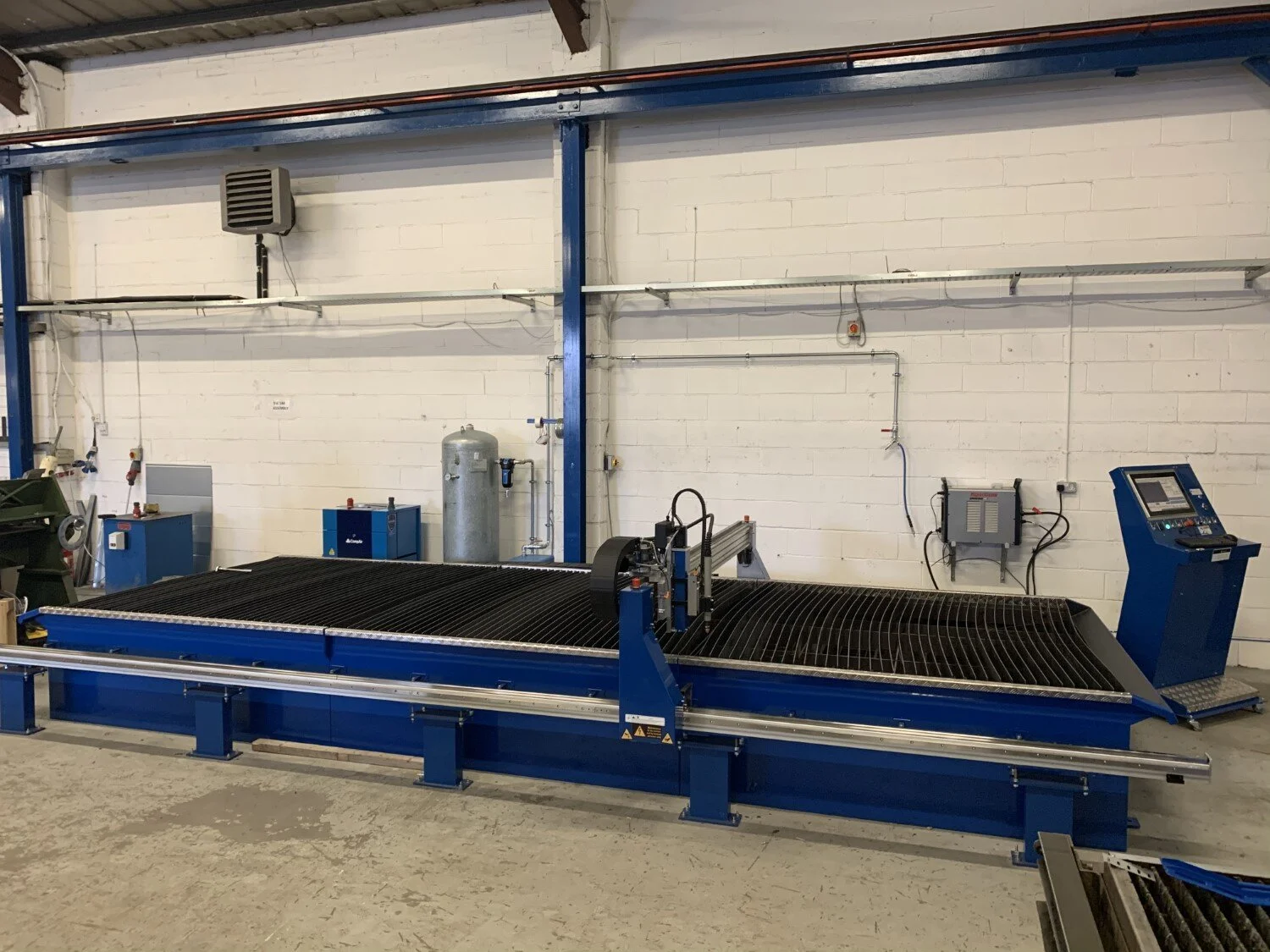

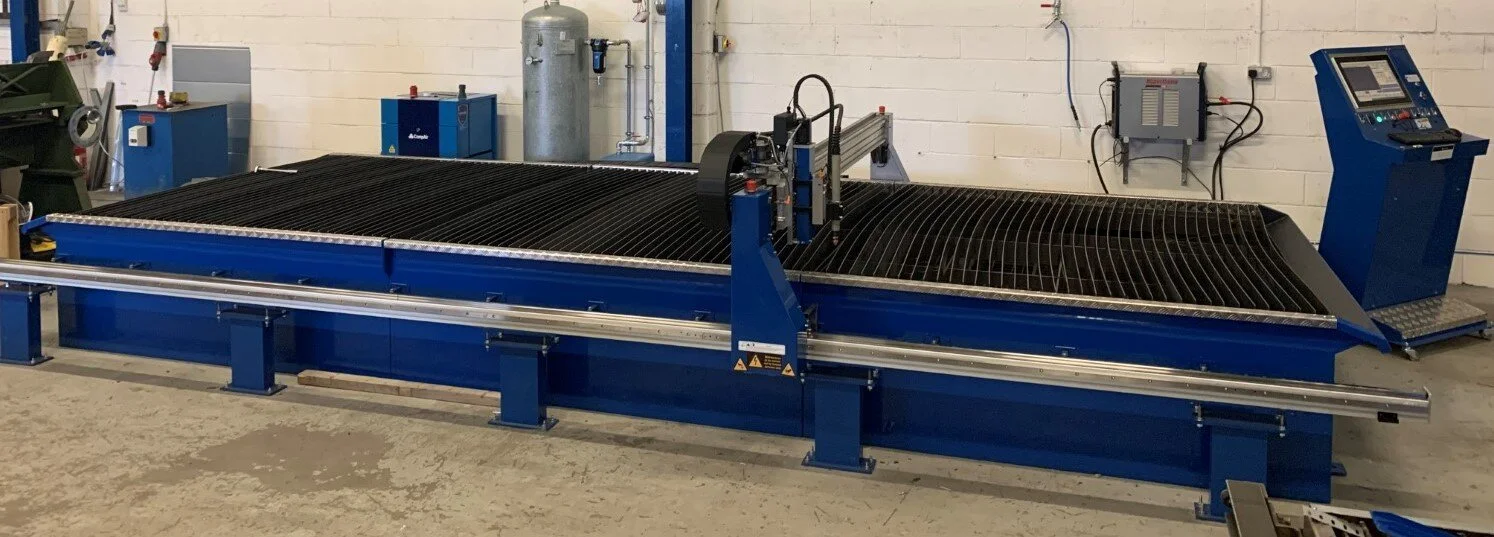

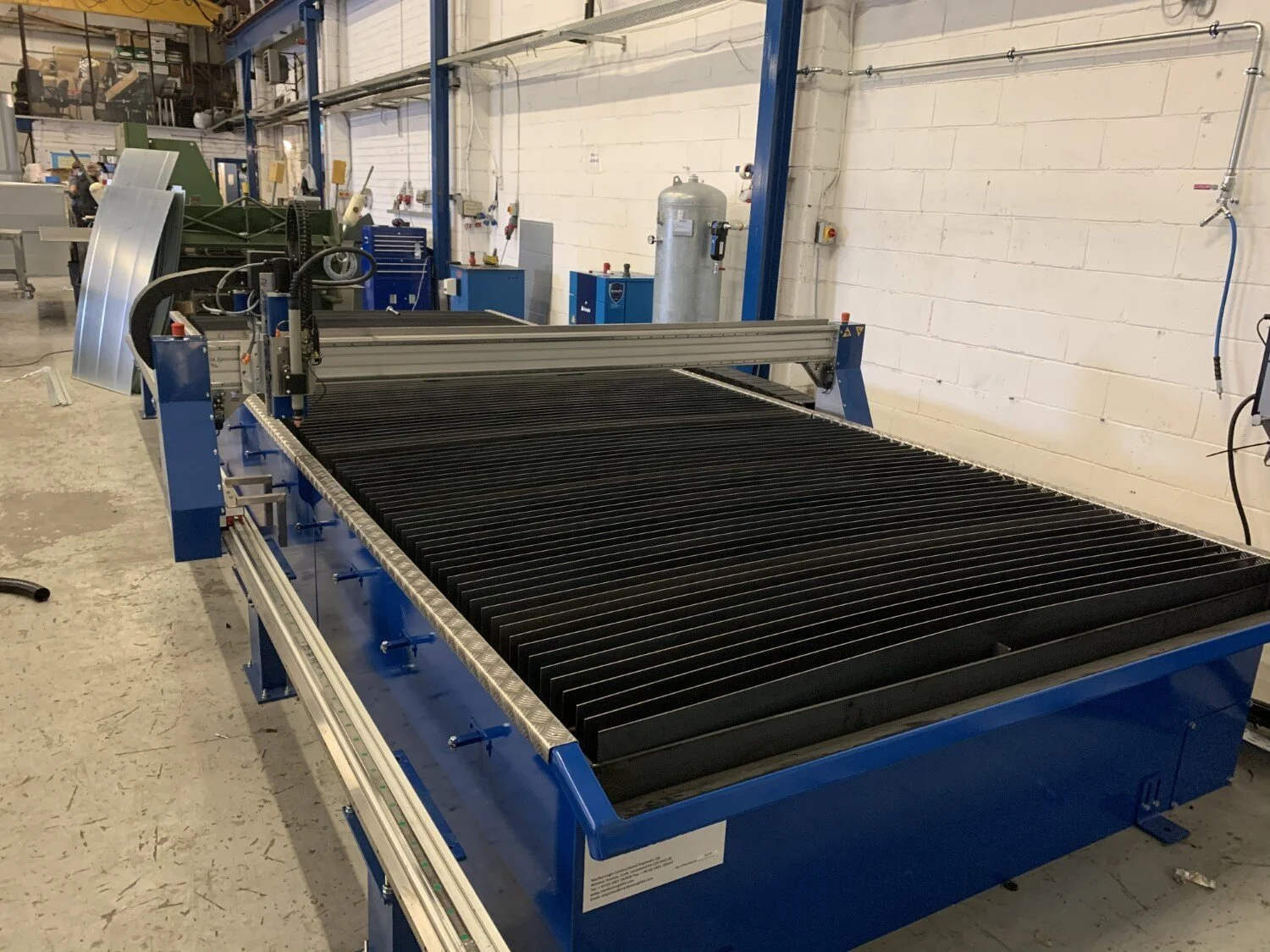

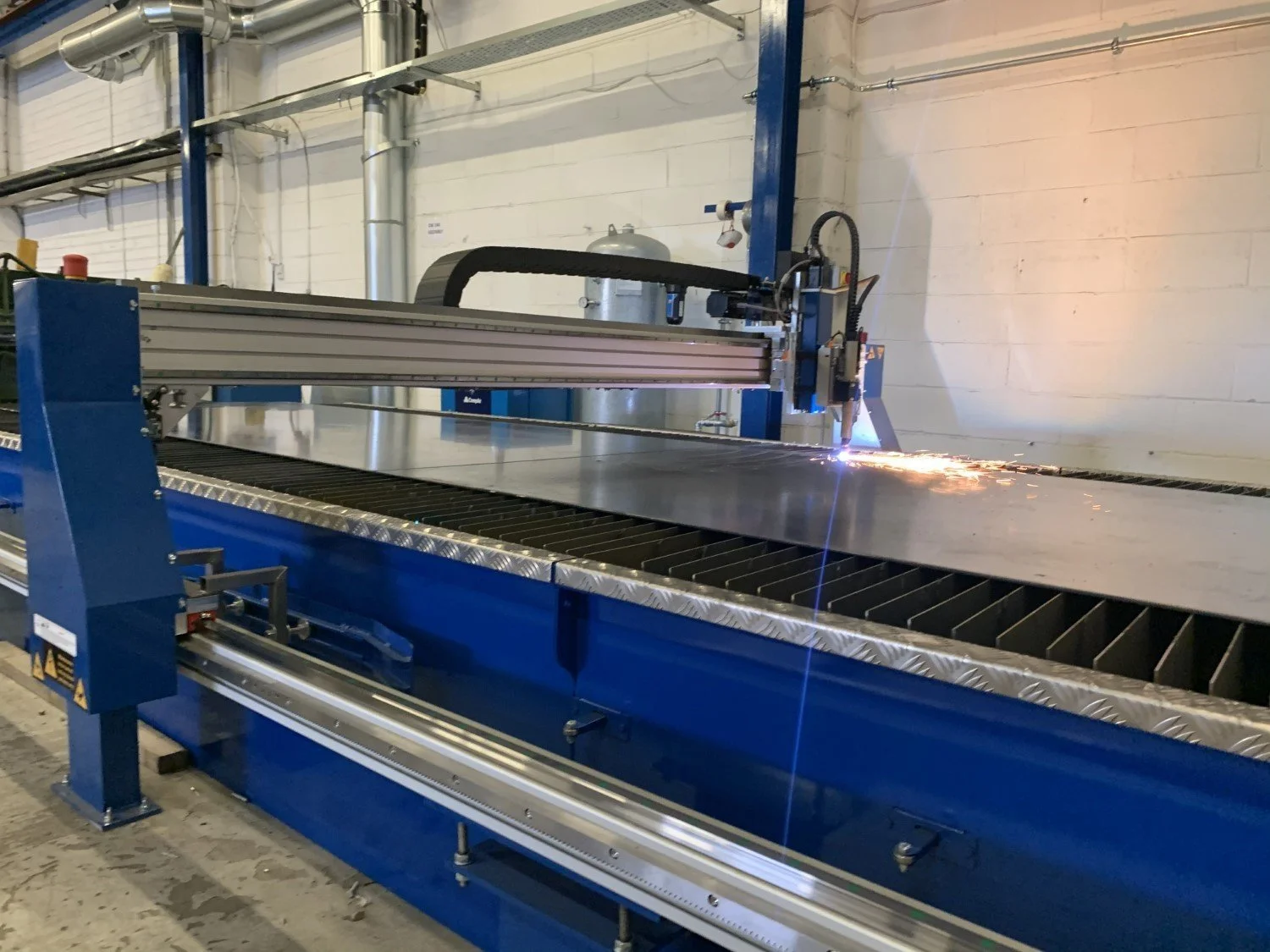

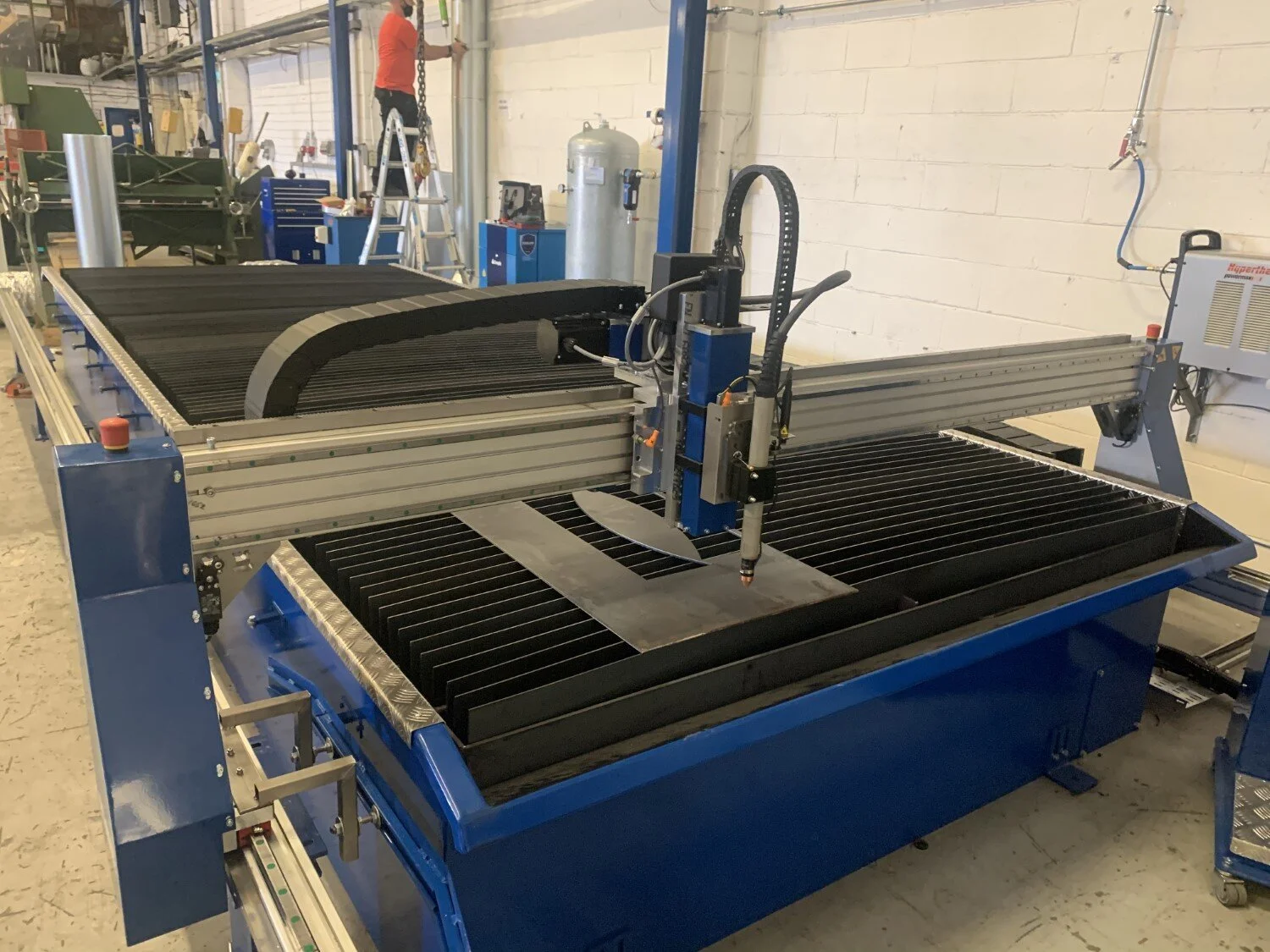

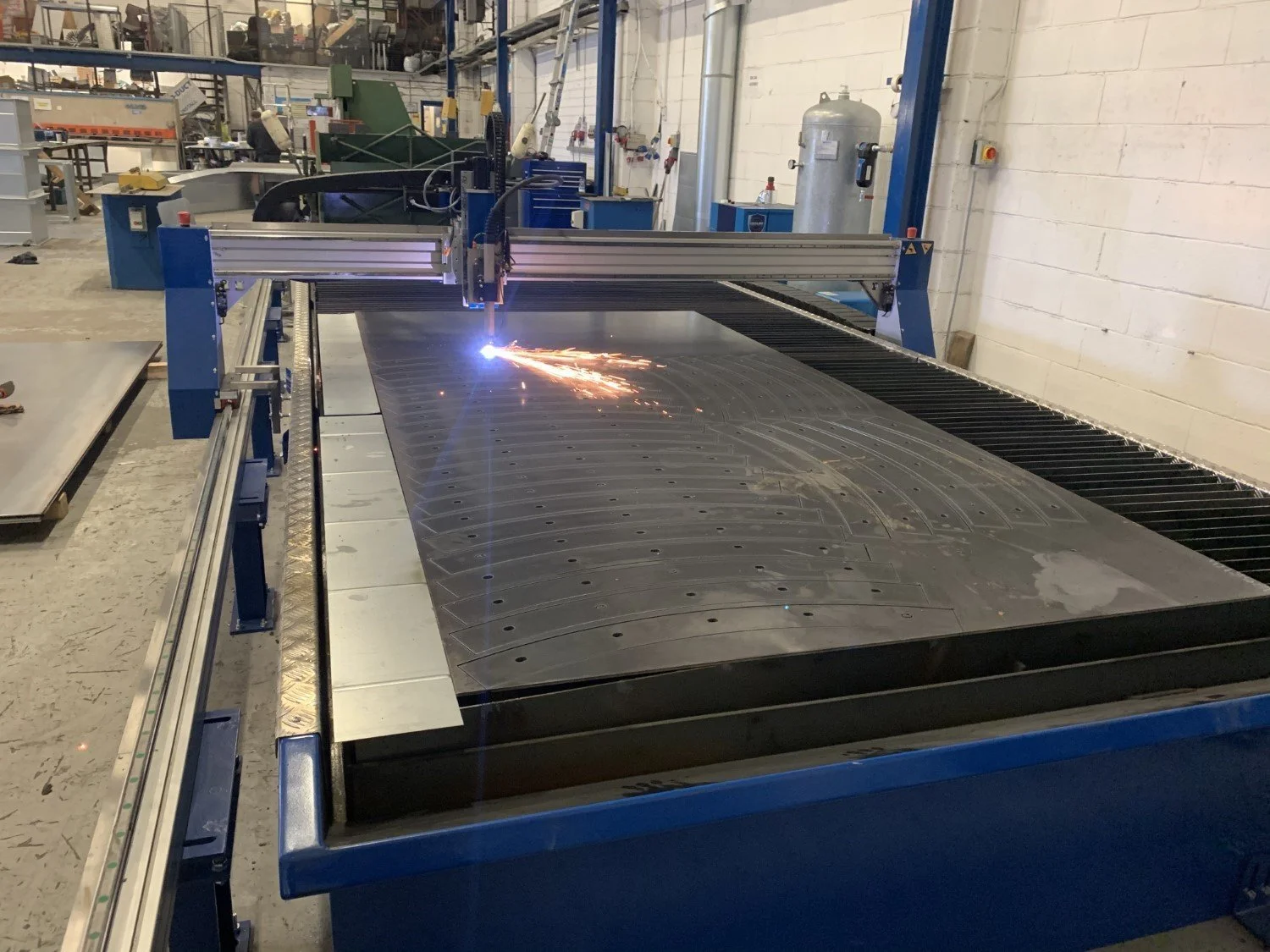

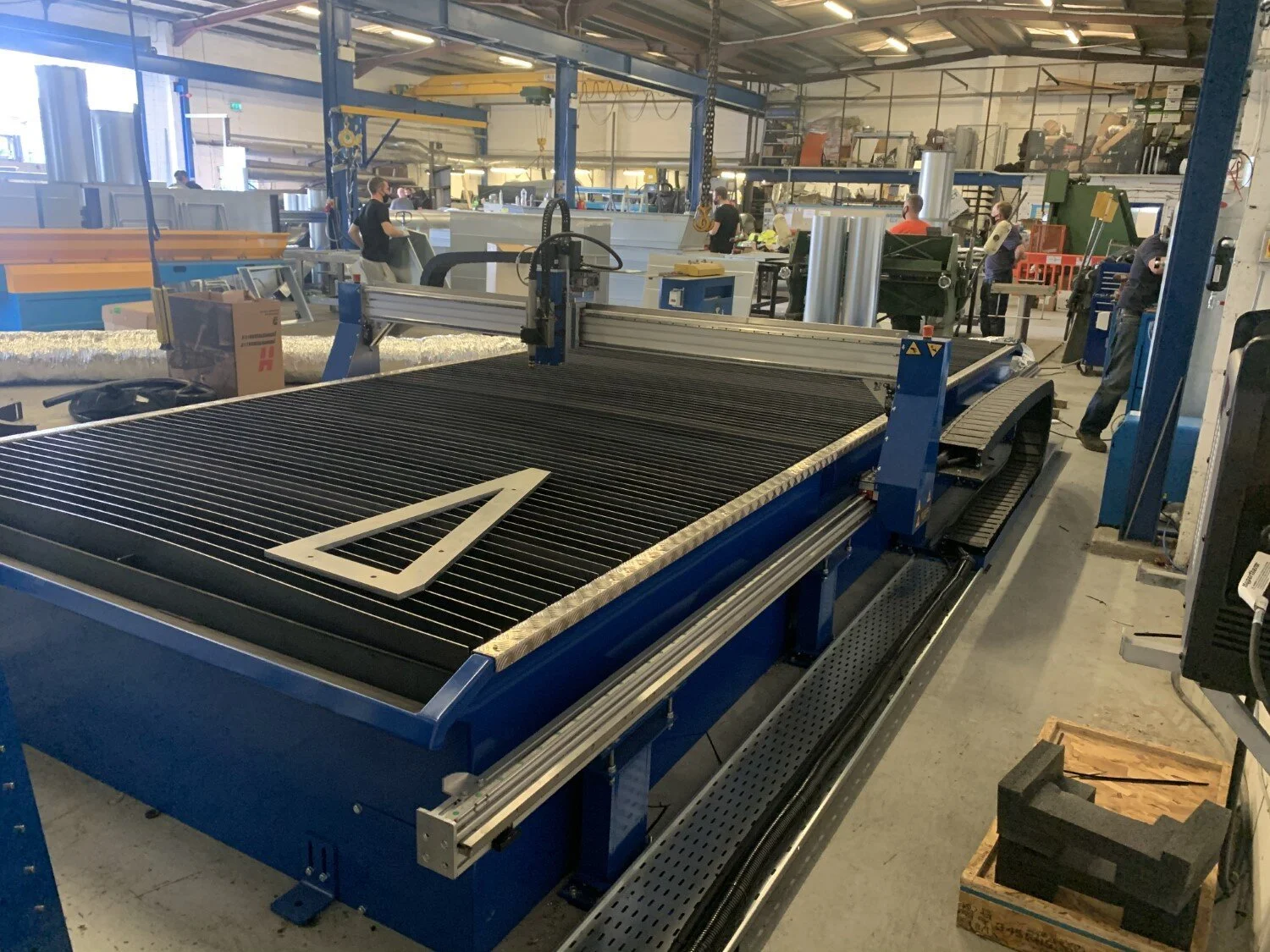

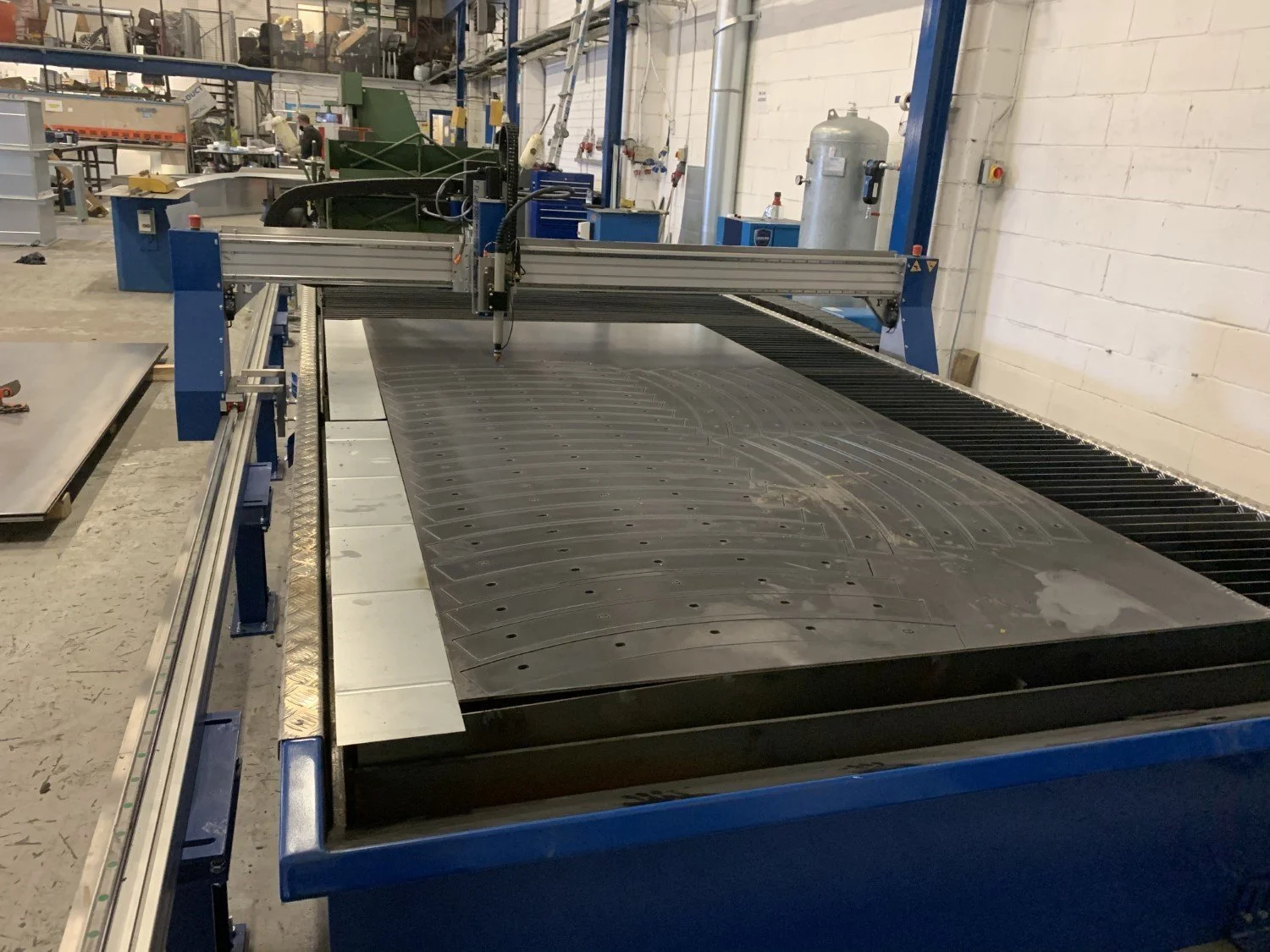

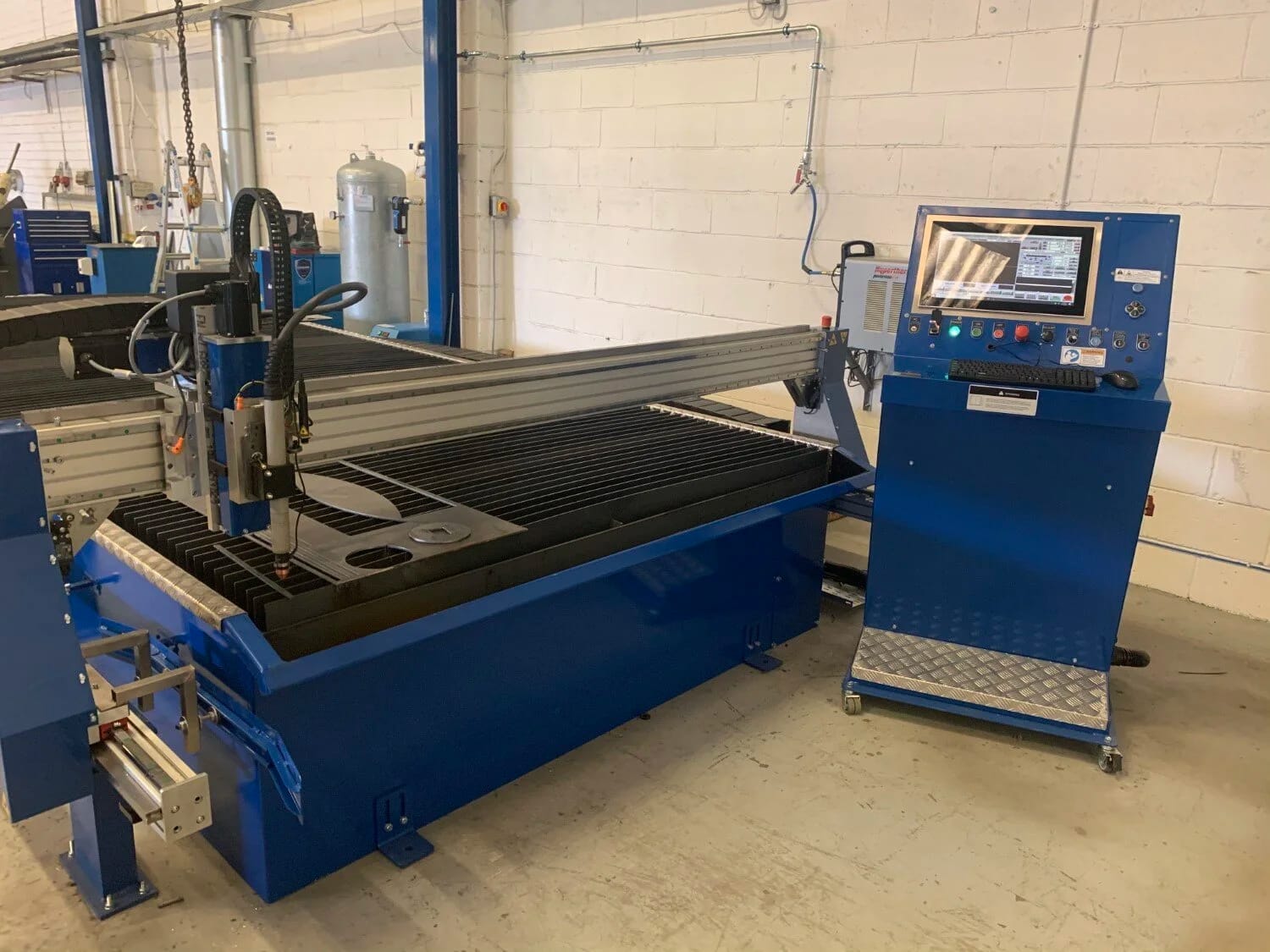

6000 x 2000mm Portal Plasma Cutter Photo Gallery
