Retrofit Services Esprit Lightning 3000 x 2000mm CNC Plasma

This machine was taken out from a client’s premises who upgraded to a new 4000mm x 2500mm CR PLASMA high-definition system. The Esprit was taken out and has been fully refurbished.

The machine has had the following work carried out:

  • Fully stripped of the old controller, source, and wiring

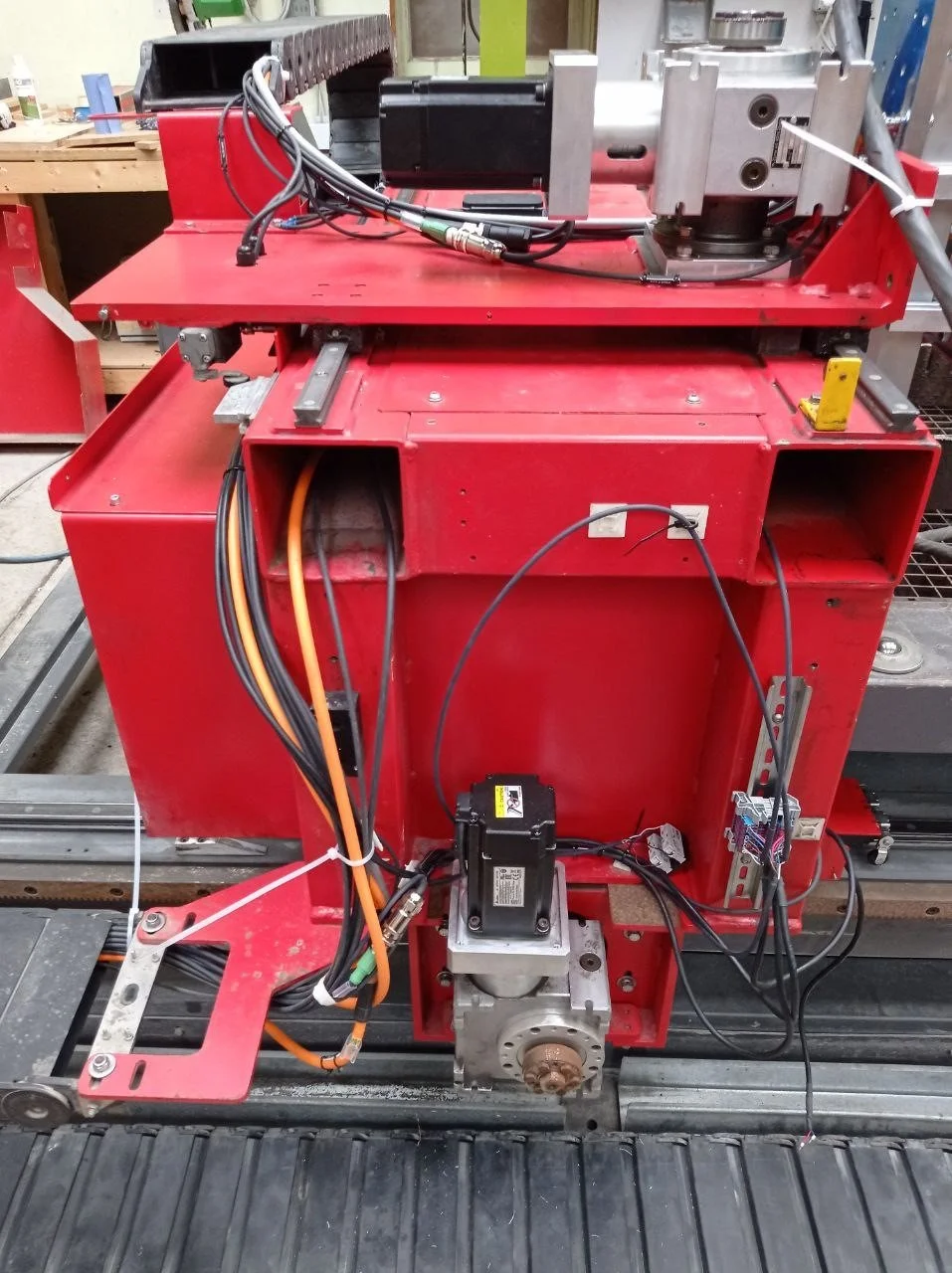

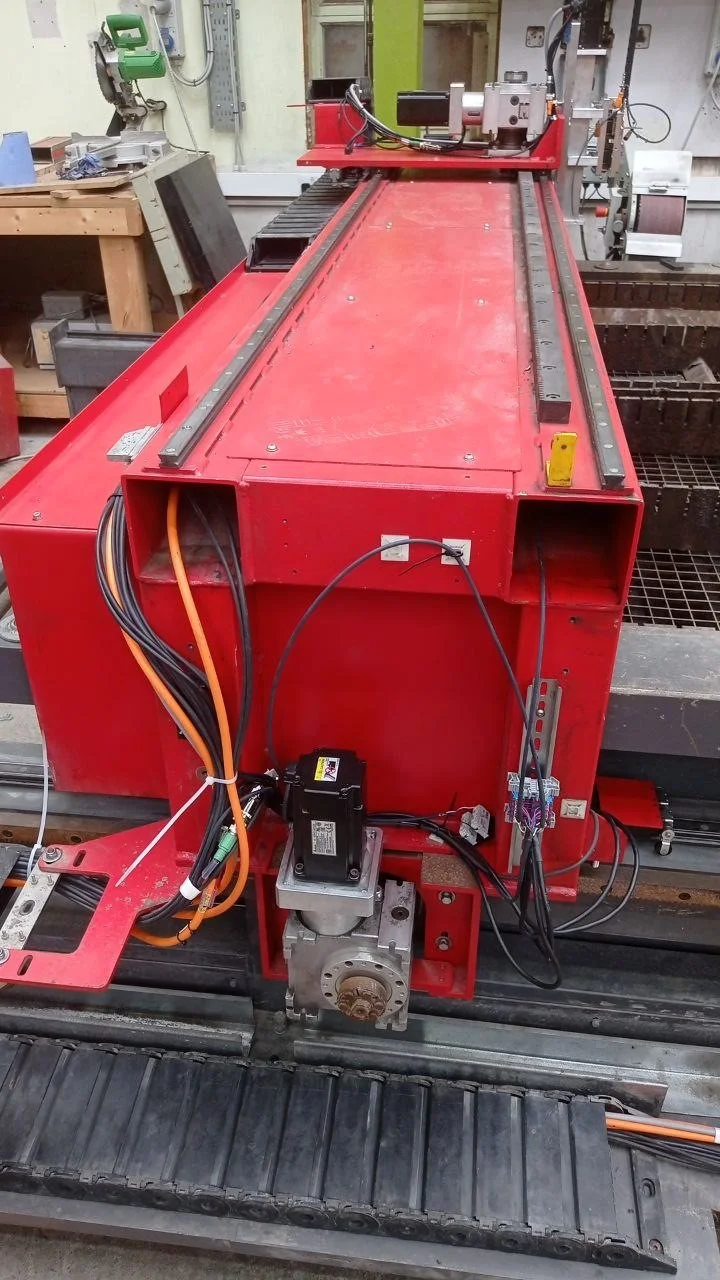

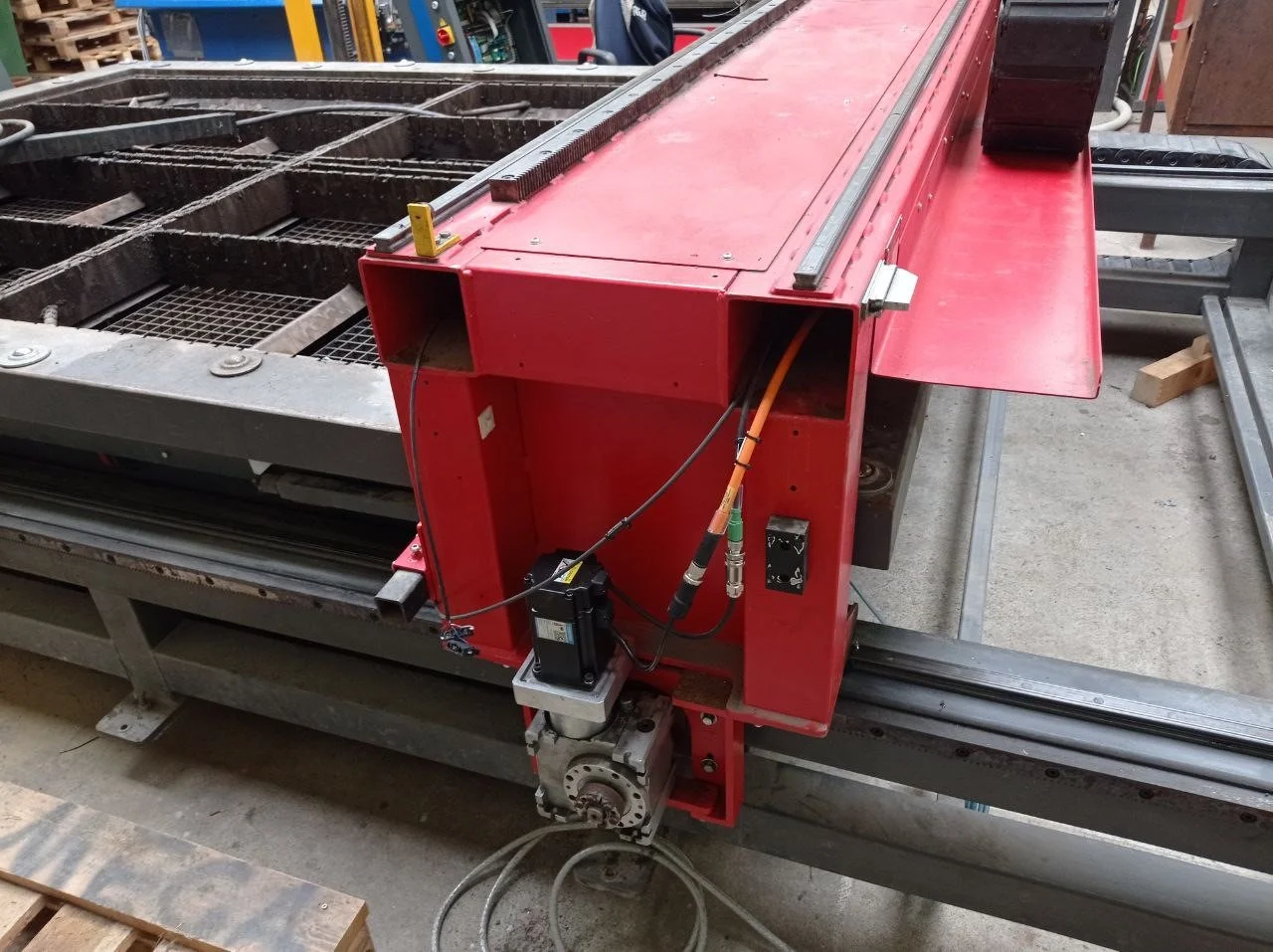

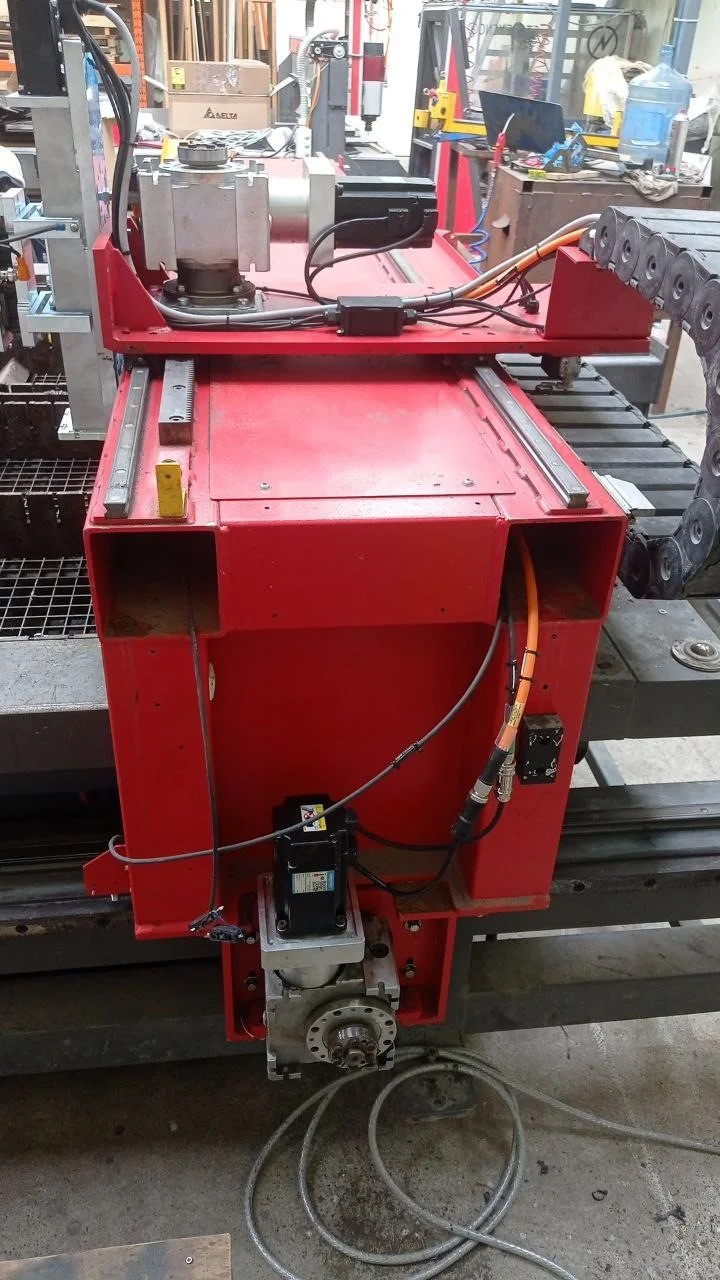

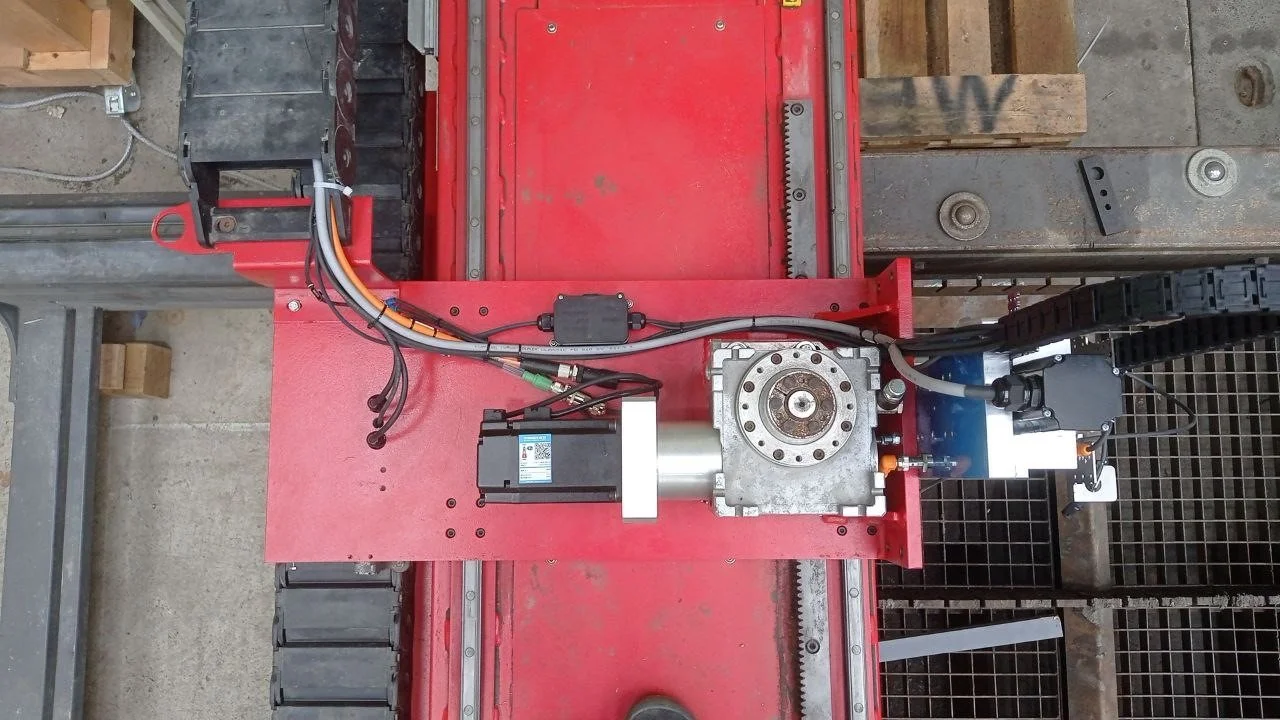

  • New closed-loop AC servos fitted and wired

  • All new limit switches were wired and fitted

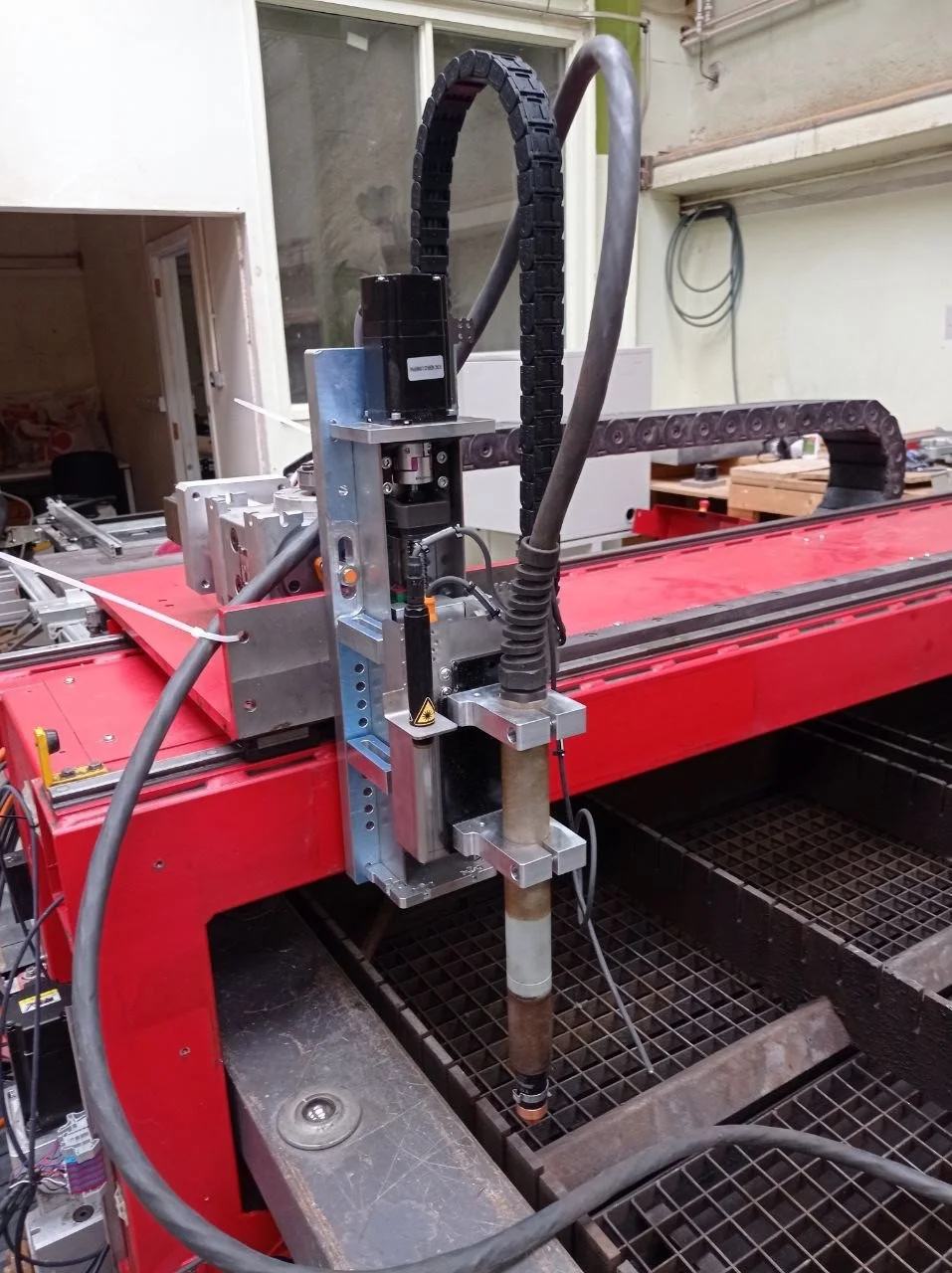

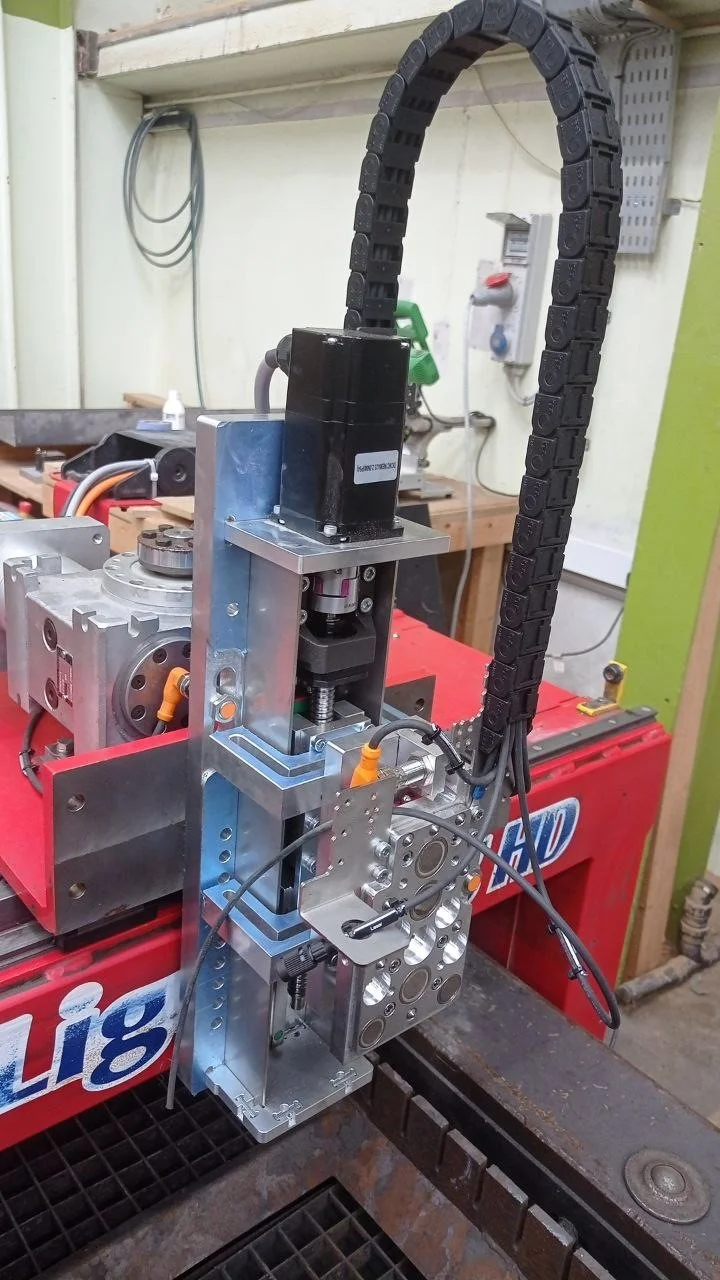

  • New generation CR PLASMA torch post system fitted

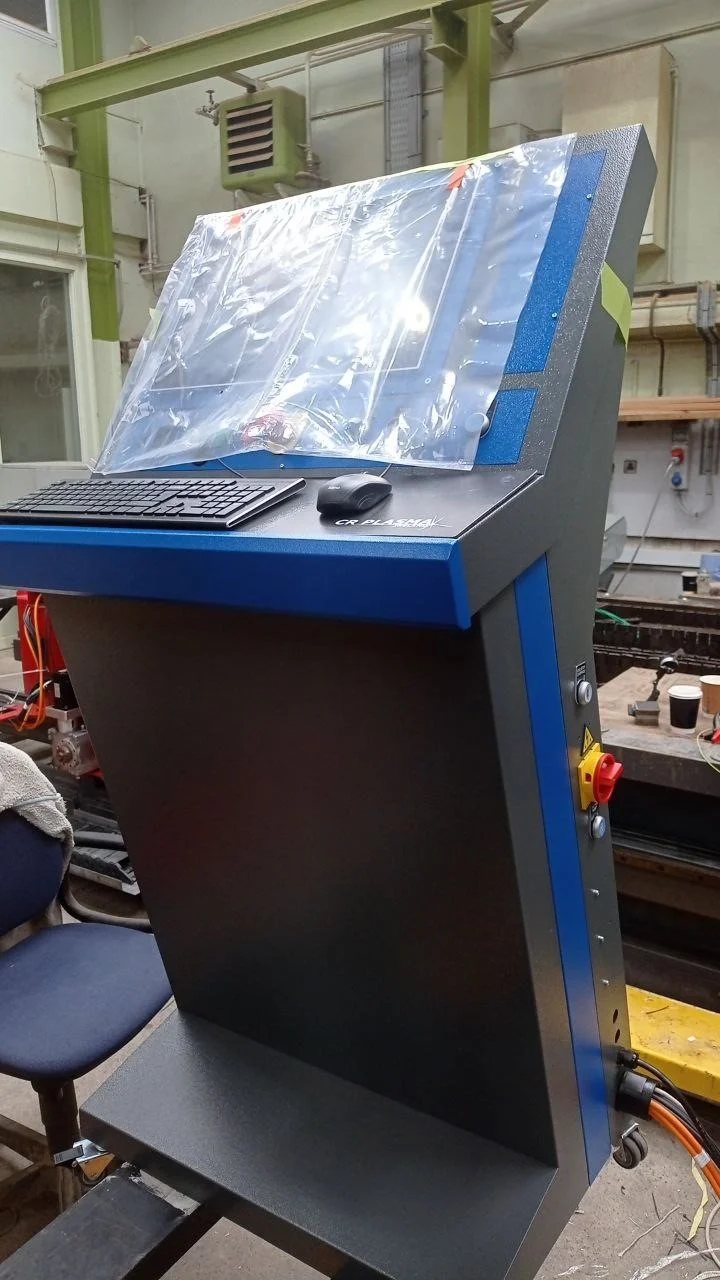

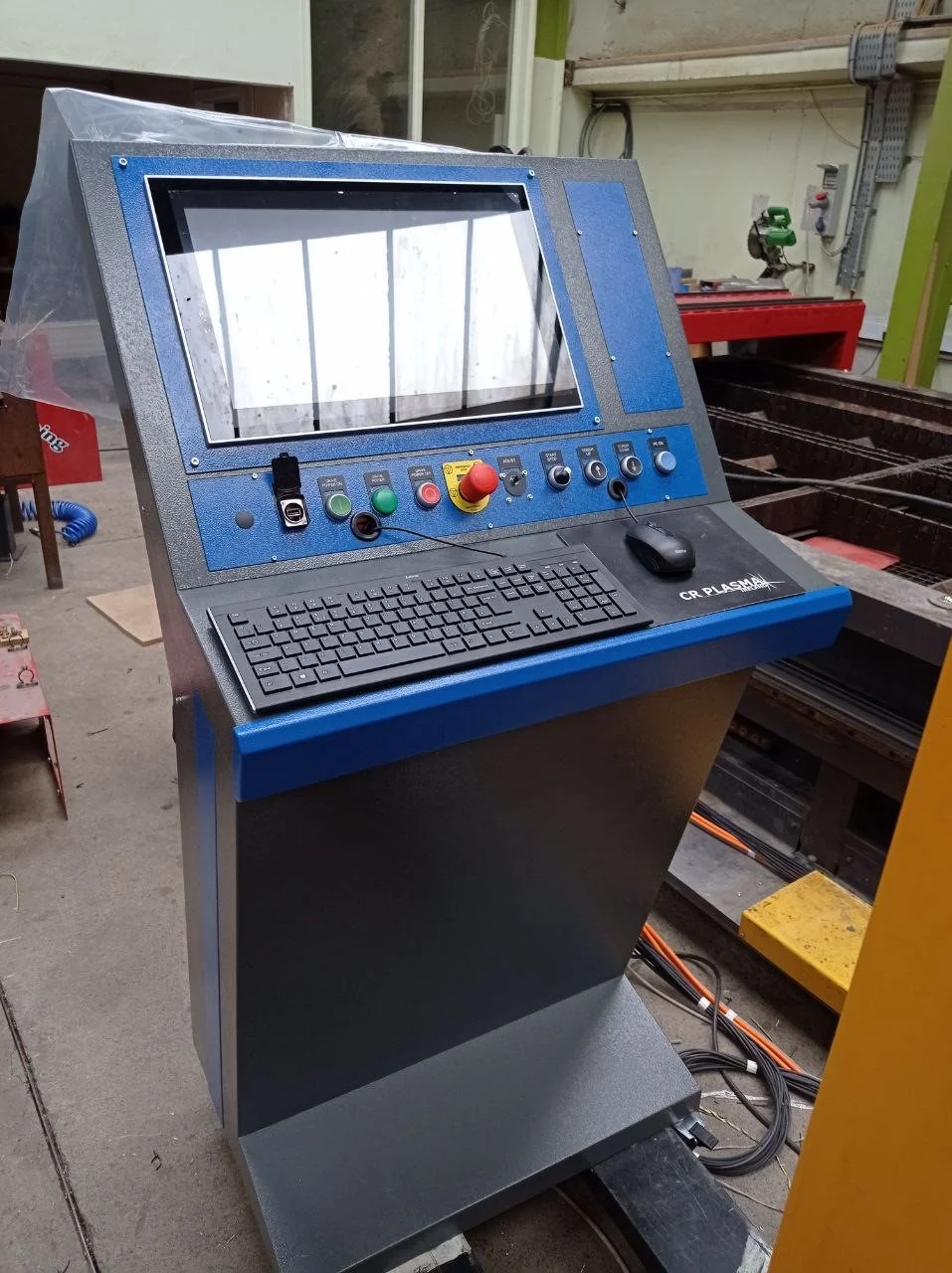

  • Full CR PLASMA controller console / HMI and integrated operator interface system

  • The machine is now fully back up and running and going to a new client with either a 125PMX or a MAXPRO 200

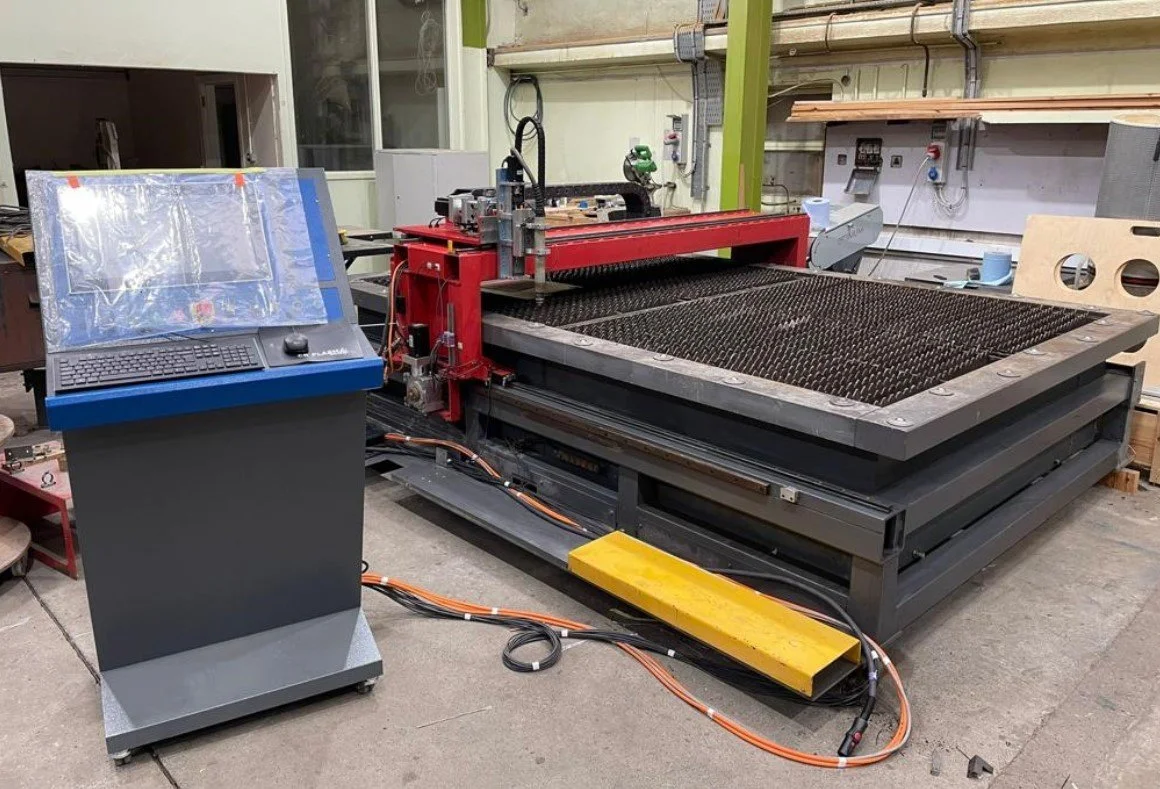

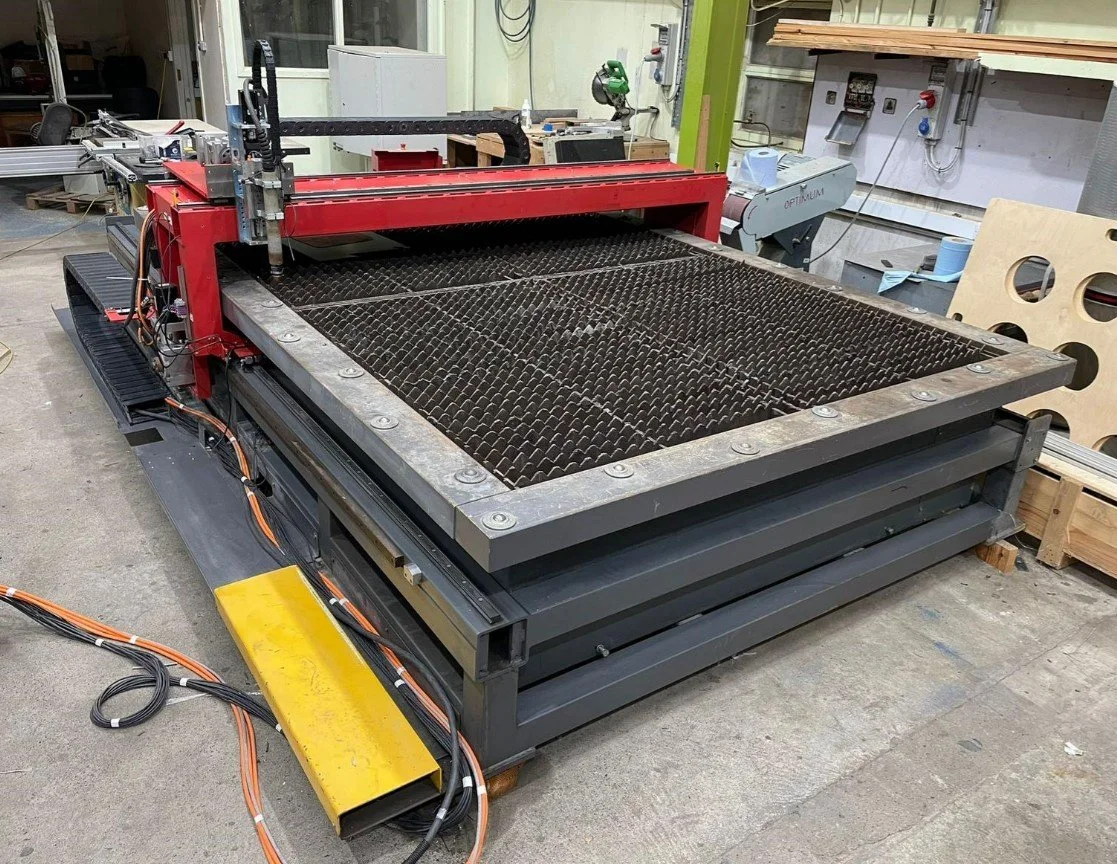

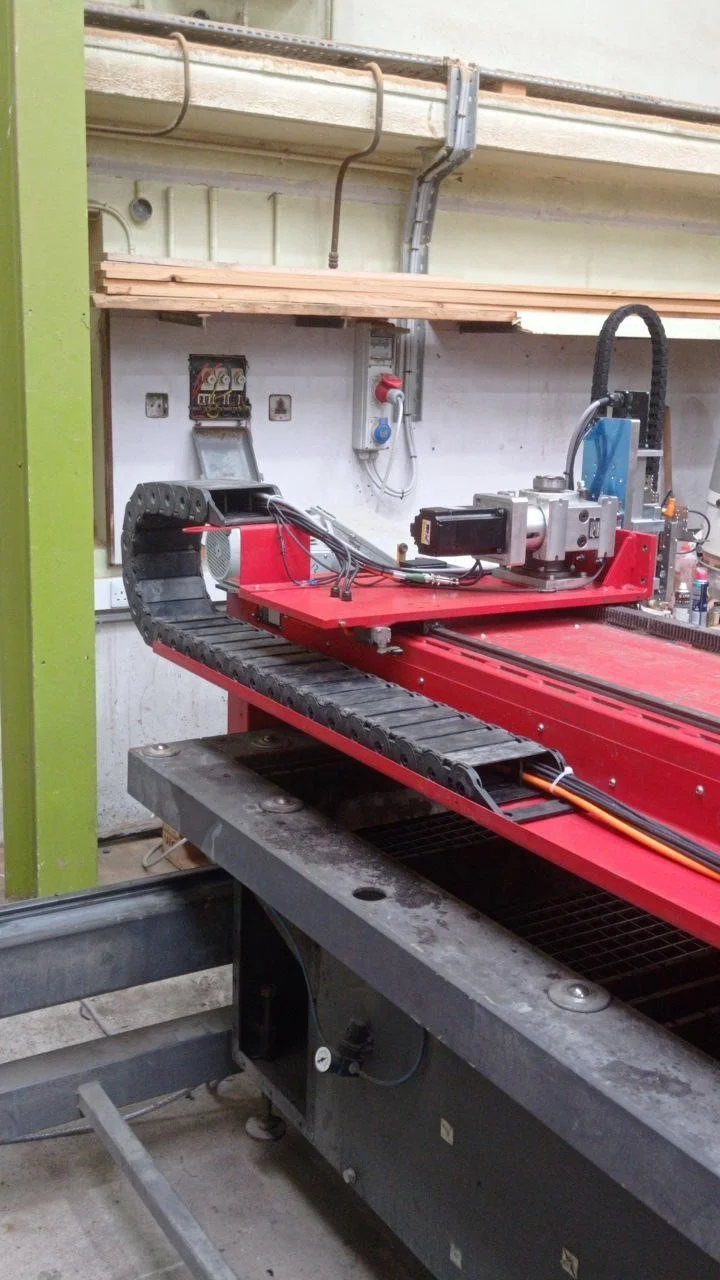

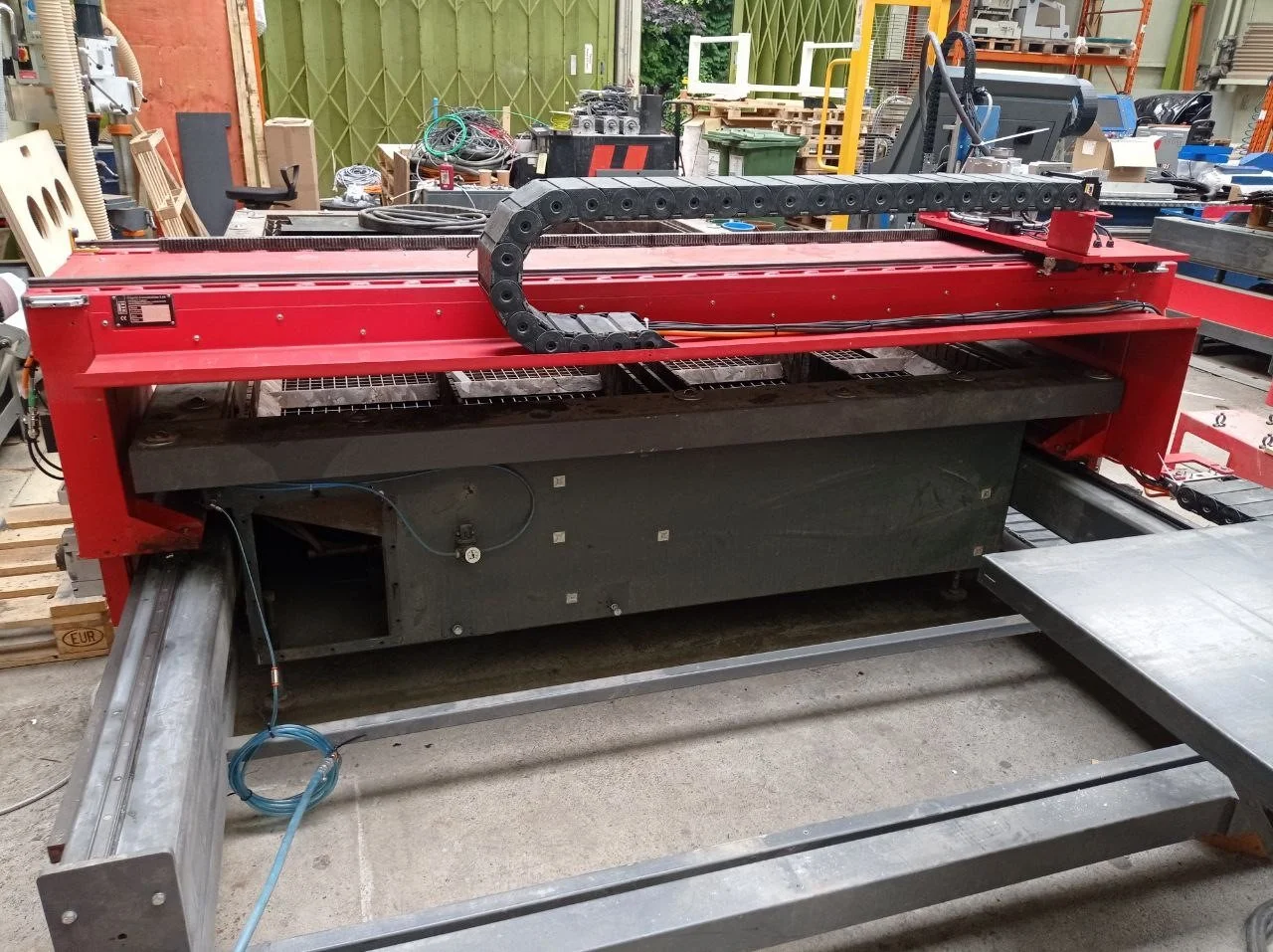

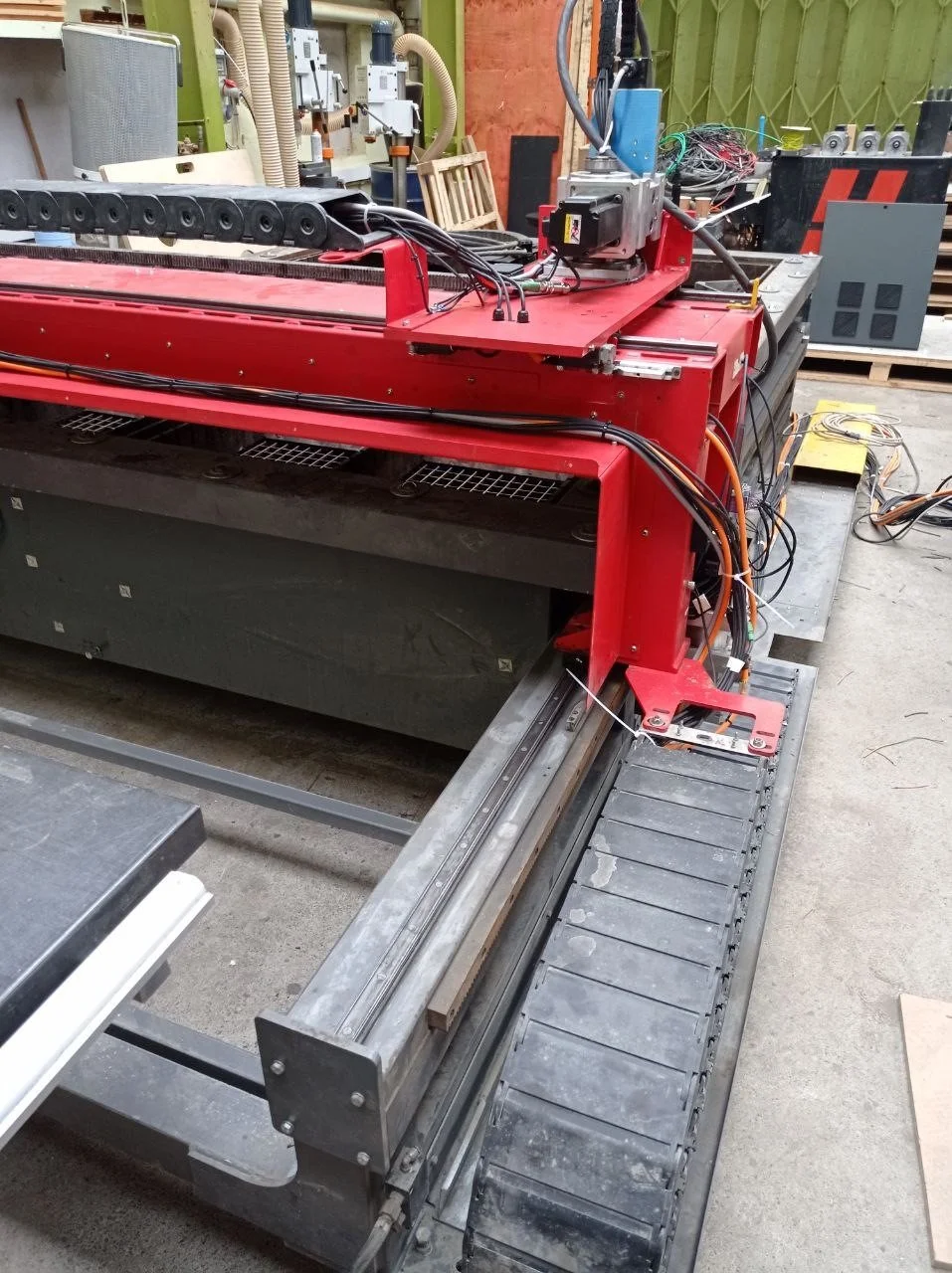

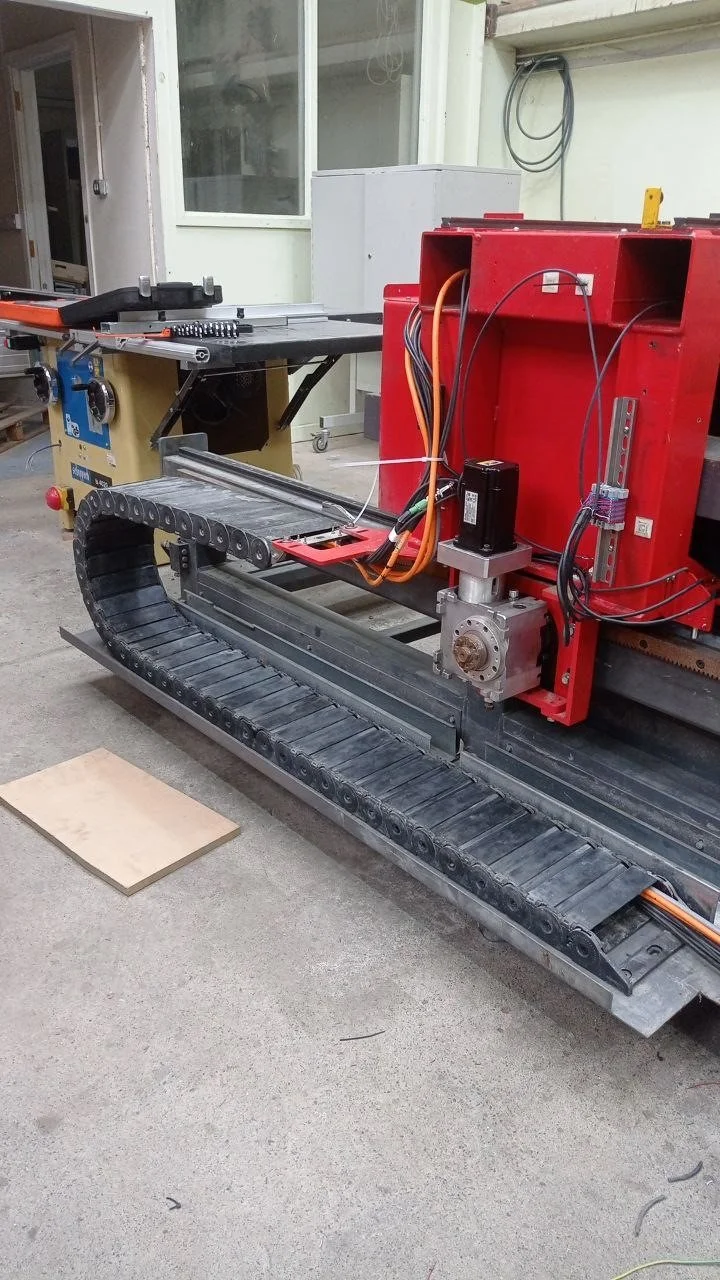

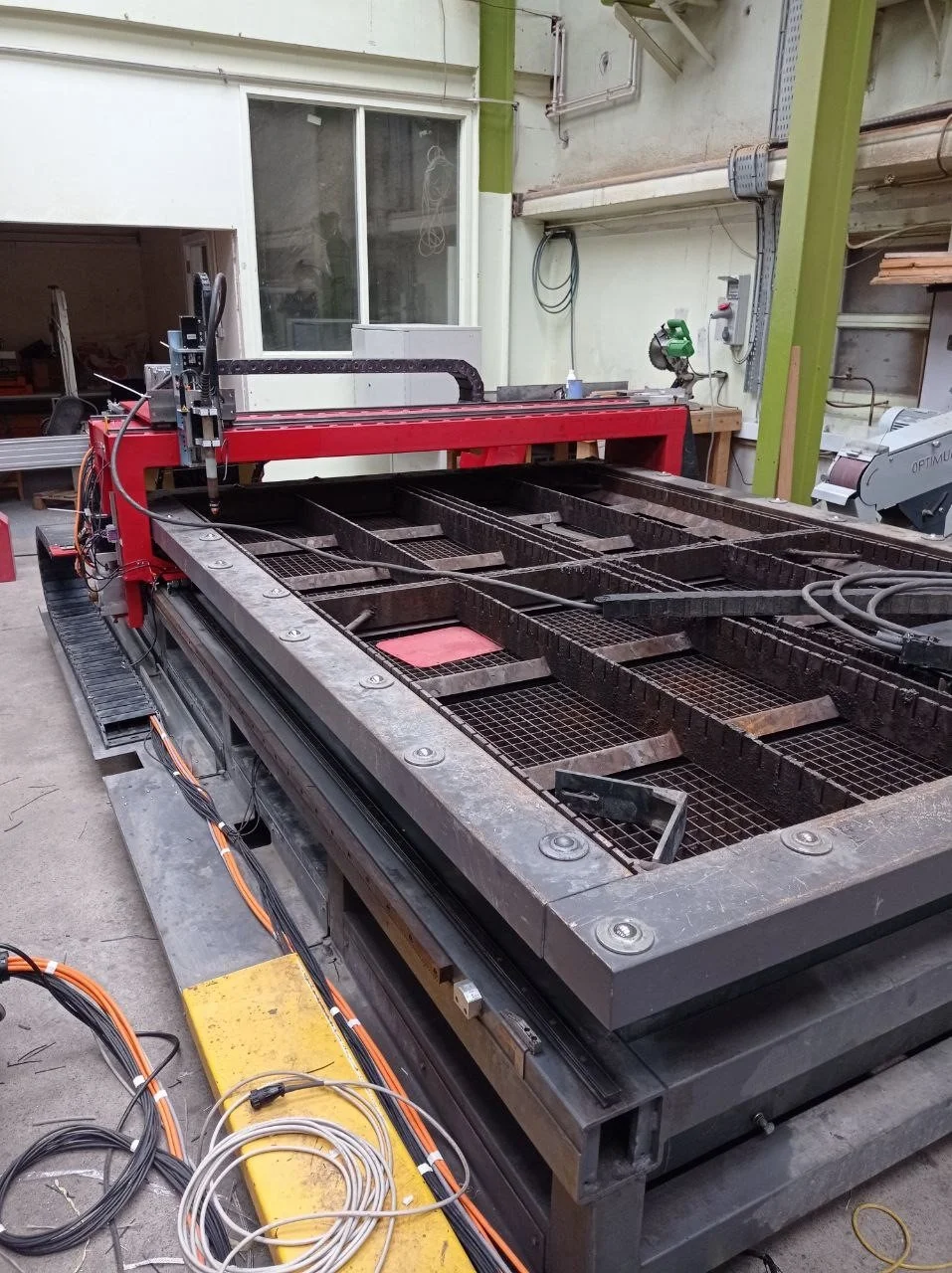

Esprit plasma finished machine Esprit plasma machine retrofit Esprit CNC plasma retrofit system upgrade, project image 4 Esprit CNC plasma retrofit system upgrade, project image 12 Esprit CNC plasma retrofit system upgrade, project image 3 Esprit CNC plasma retrofit system upgrade, project image 1 Esprit CNC plasma retrofit system upgrade, project image 2 Esprit CNC plasma retrofit system upgrade, project image 5 Esprit CNC plasma retrofit system upgrade, project image 6 Esprit CNC plasma retrofit system upgrade, project image 7 Esprit CNC plasma retrofit system upgrade, project image 8 Esprit CNC plasma retrofit system upgrade, project image 9 Esprit CNC plasma retrofit system upgrade, project image 10 Esprit CNC plasma retrofit system upgrade, project image 11 Esprit CNC plasma retrofit system upgrade, project image 13 Esprit CNC plasma retrofit system upgrade, project image 14

Using This Retrofit as a Project Reference

This page records work completed by CR PLASMA on Esprit Lightning CNC Plasma Retrofit • Services. It is evidence of that project, not a fixed package for every machine. A U.S. retrofit starts with photographs, machine details, control and plasma information, required materials, and a review of service availability.
