CR PLASMA

Retrofit Services TechServ

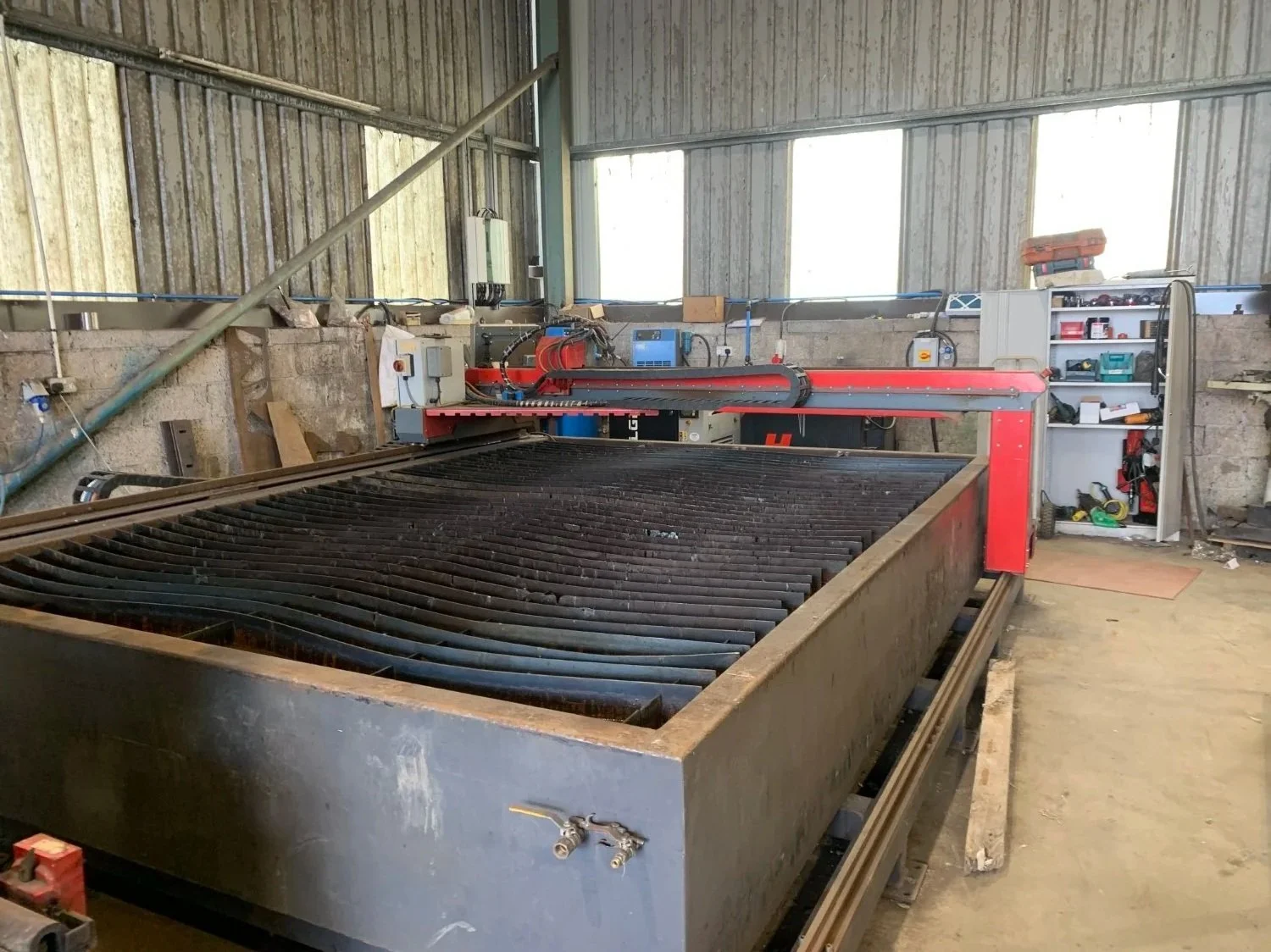

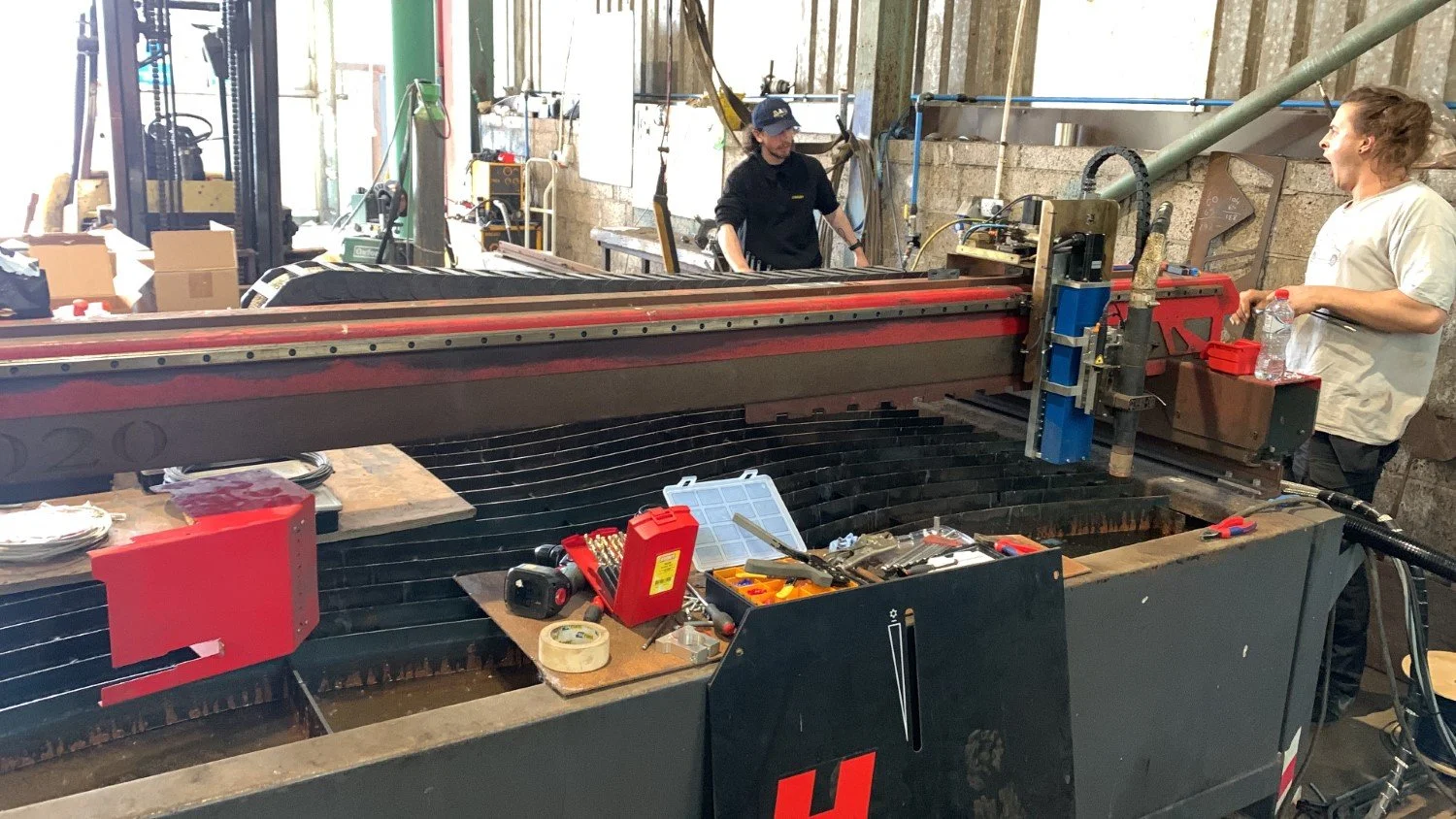

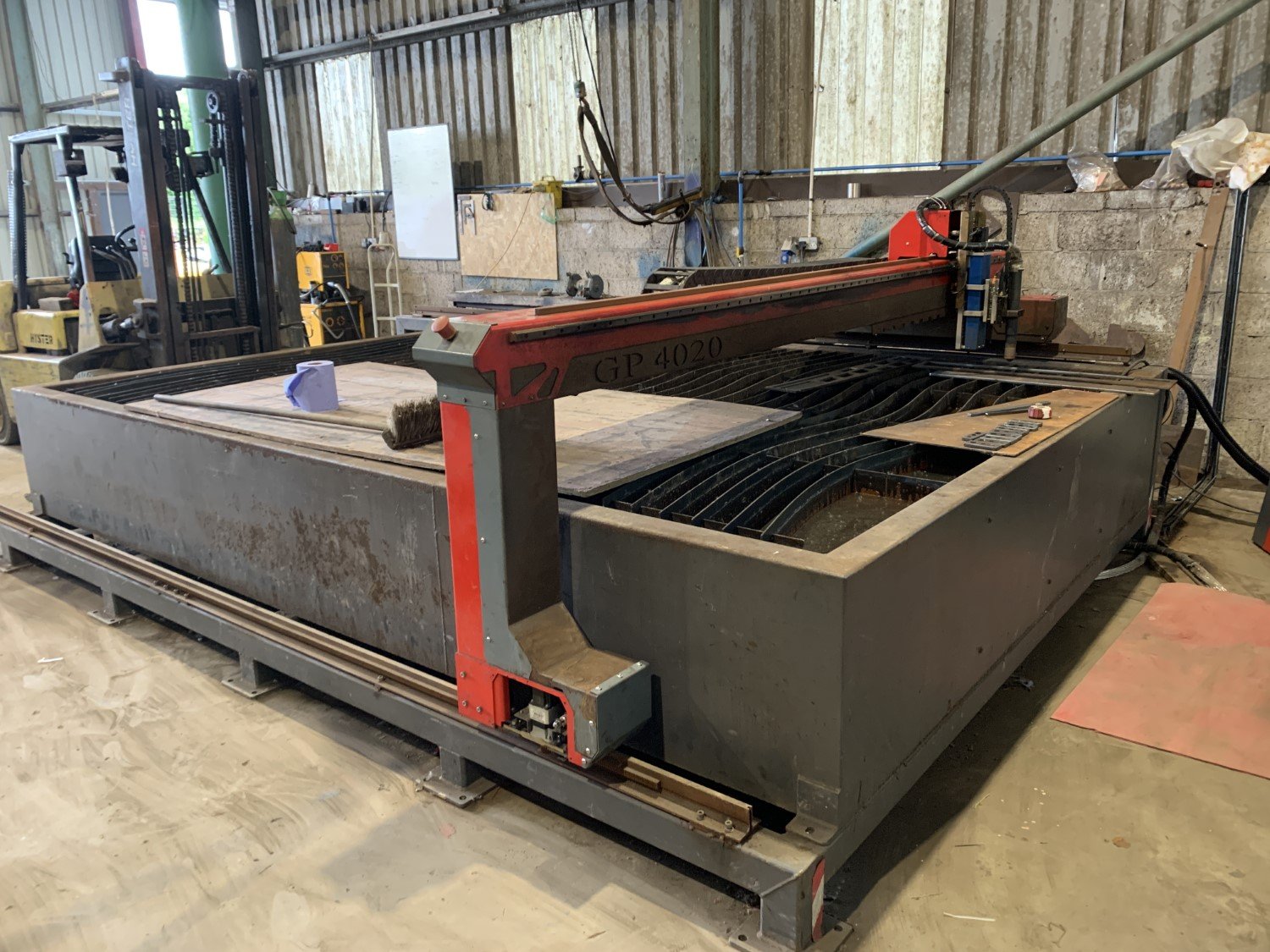

A client bought this machine and had issues since it was installed. A few people before us had tried to get it going. We fitted the CR PLASMA platform to the machine, integrated the MAXPRO 200, and got her going. She’s been cutting ever since.

The machine has had the following work carried out:

  • Fully stripped of the old controller and wiring

  • Max PRO 200 was kept and integrated

  • The controller was connected to existing gearboxes

  • All new limit switches were wired and fitted

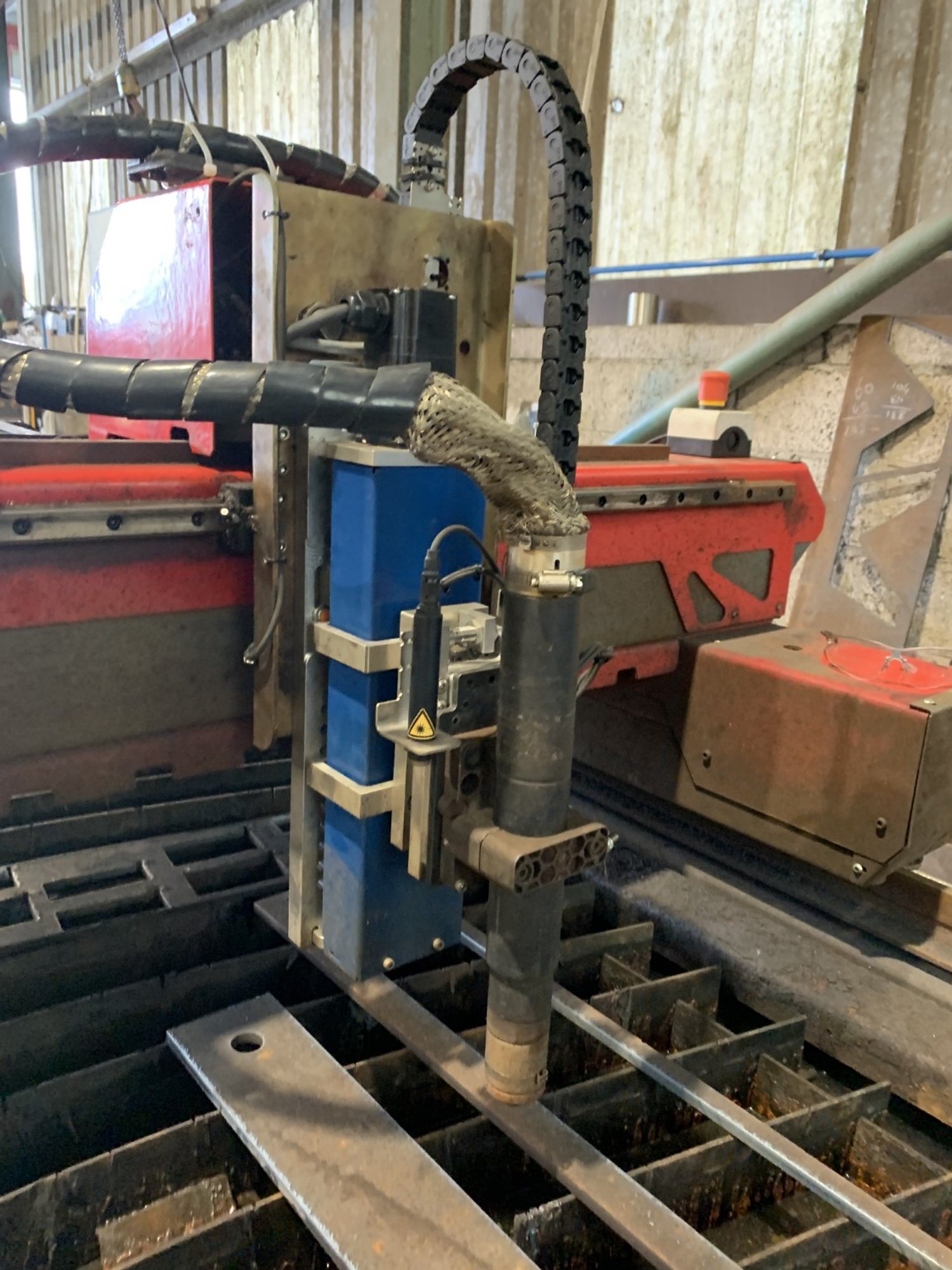

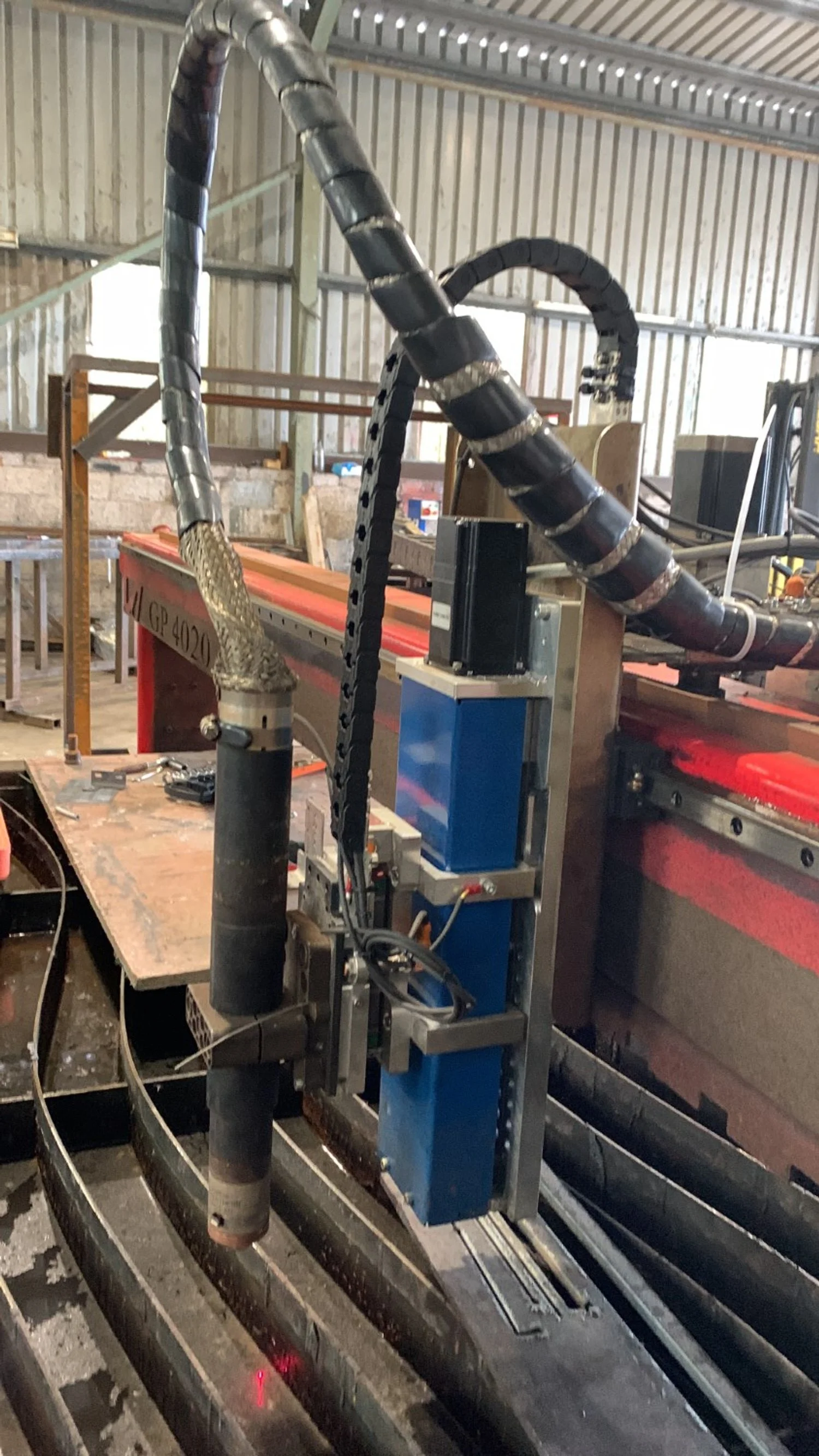

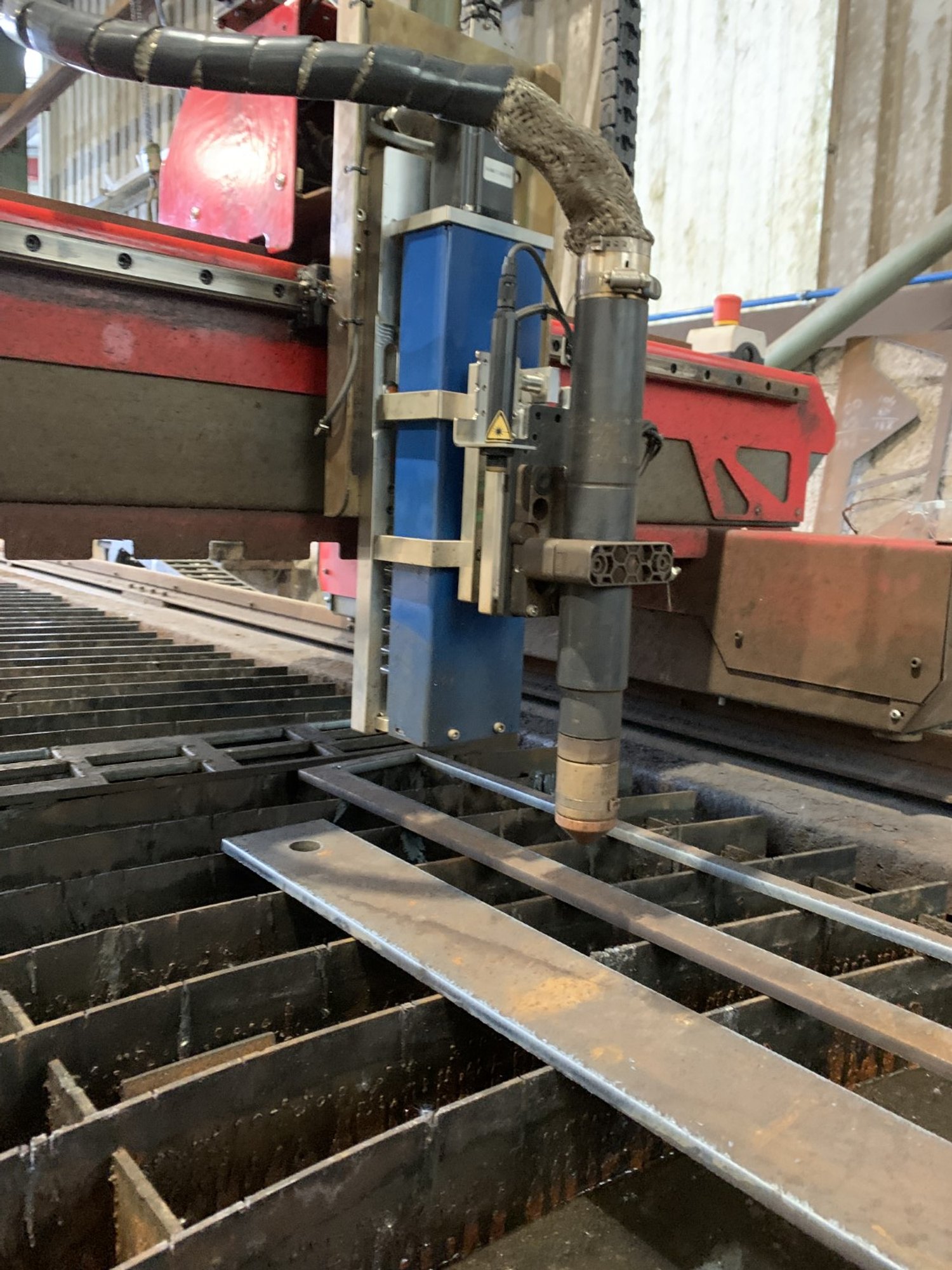

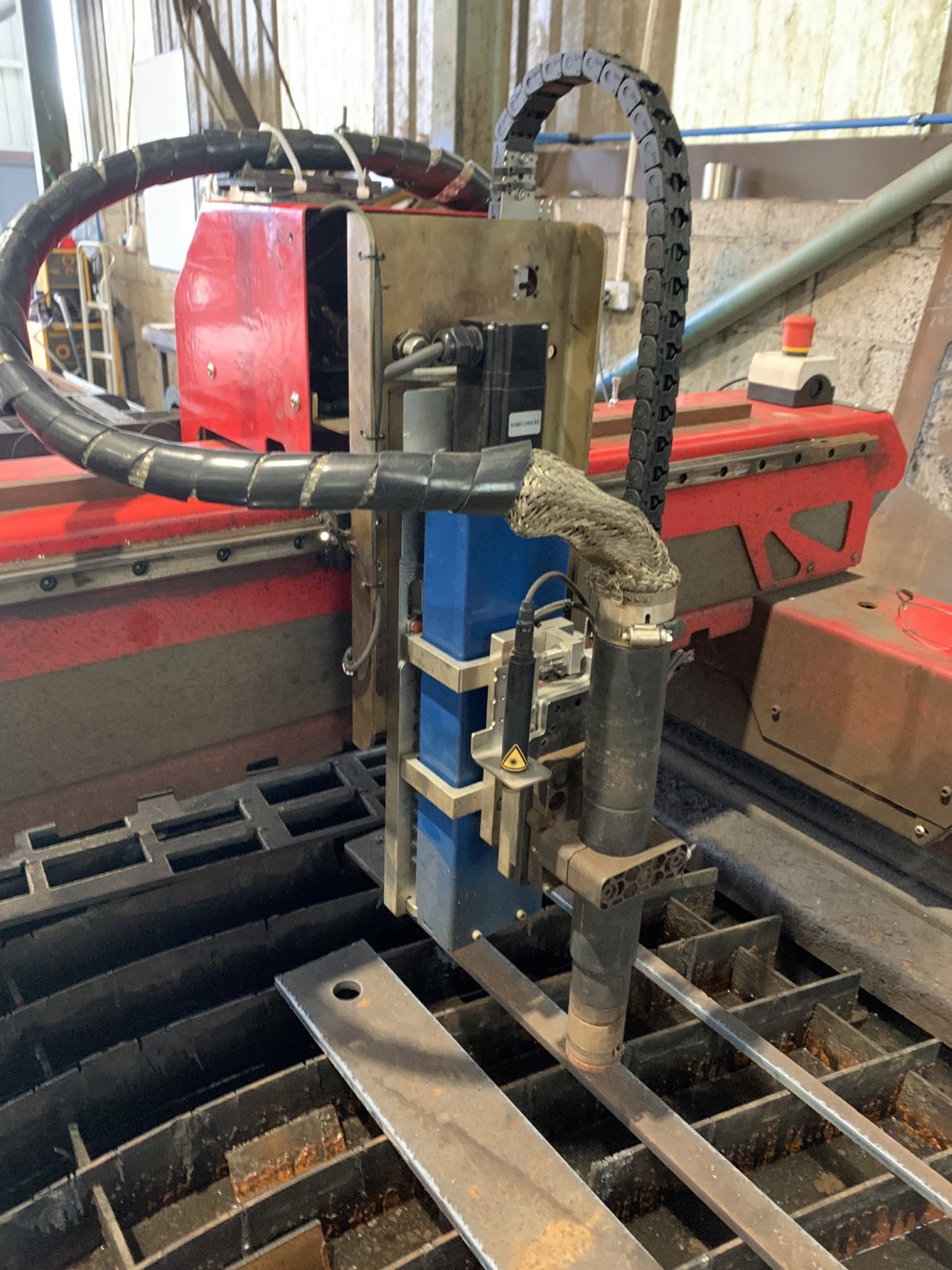

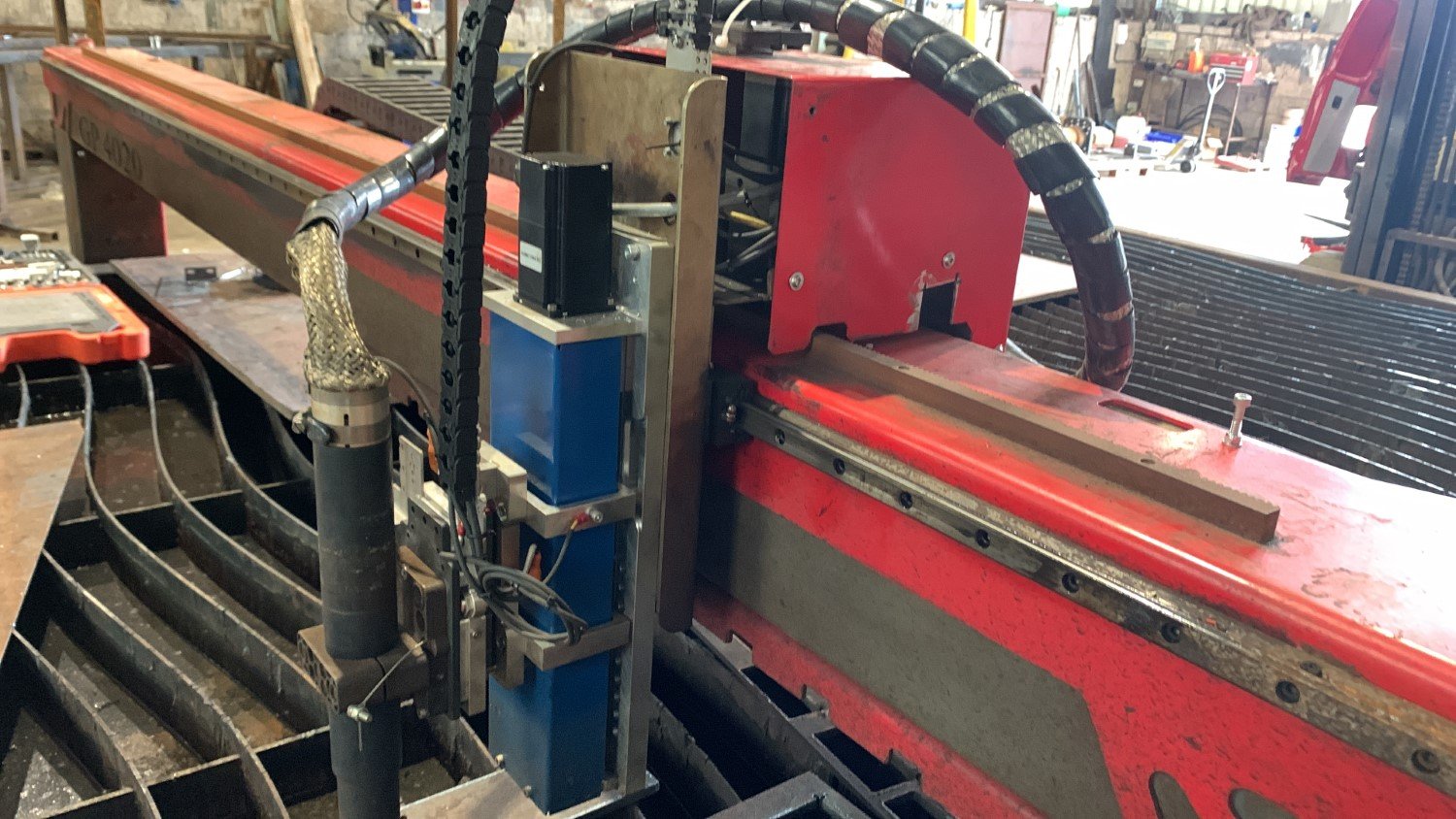

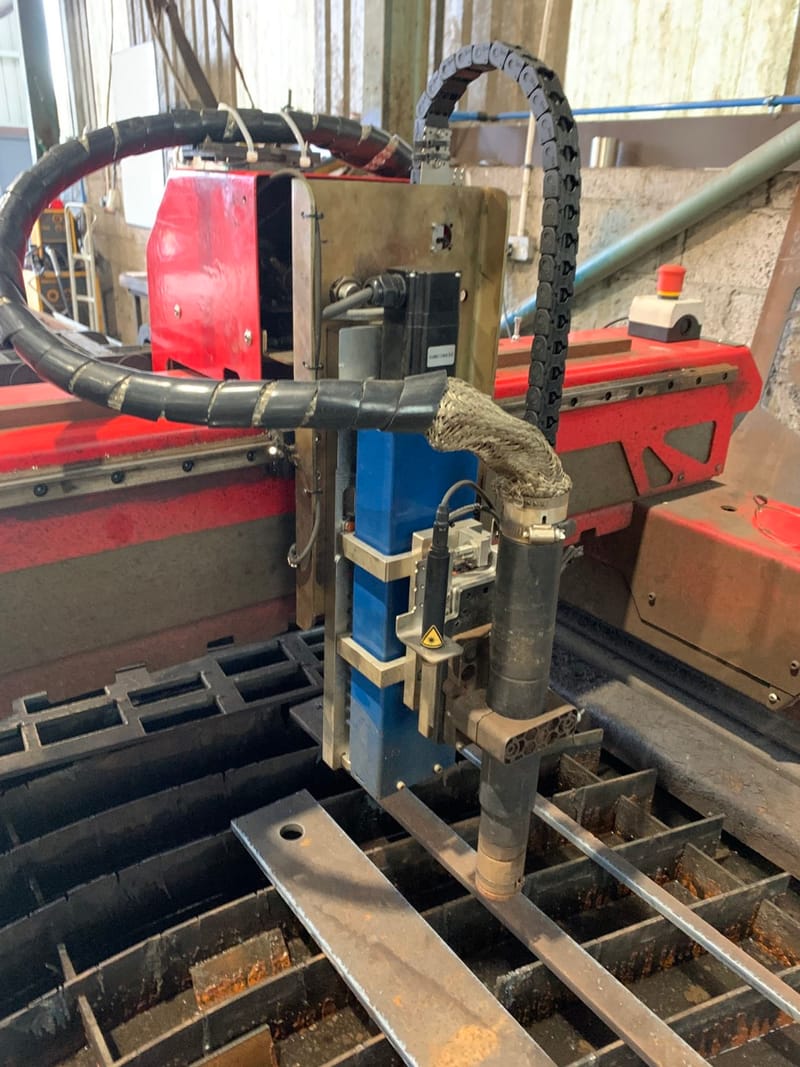

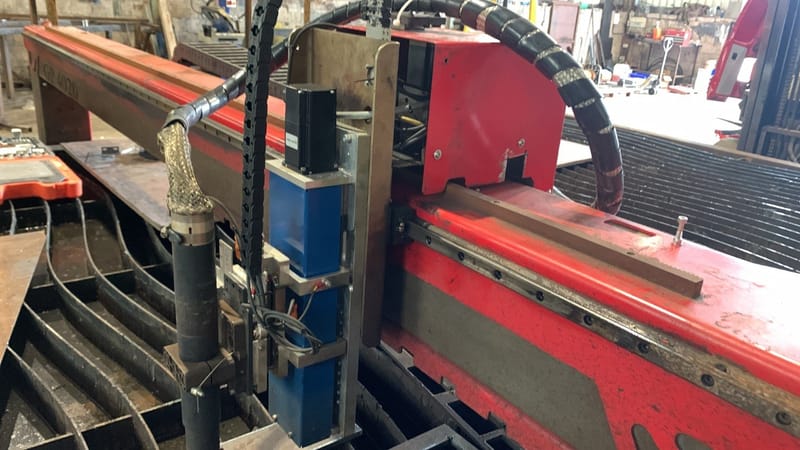

  • New generation CR PLASMA torch post system fitted

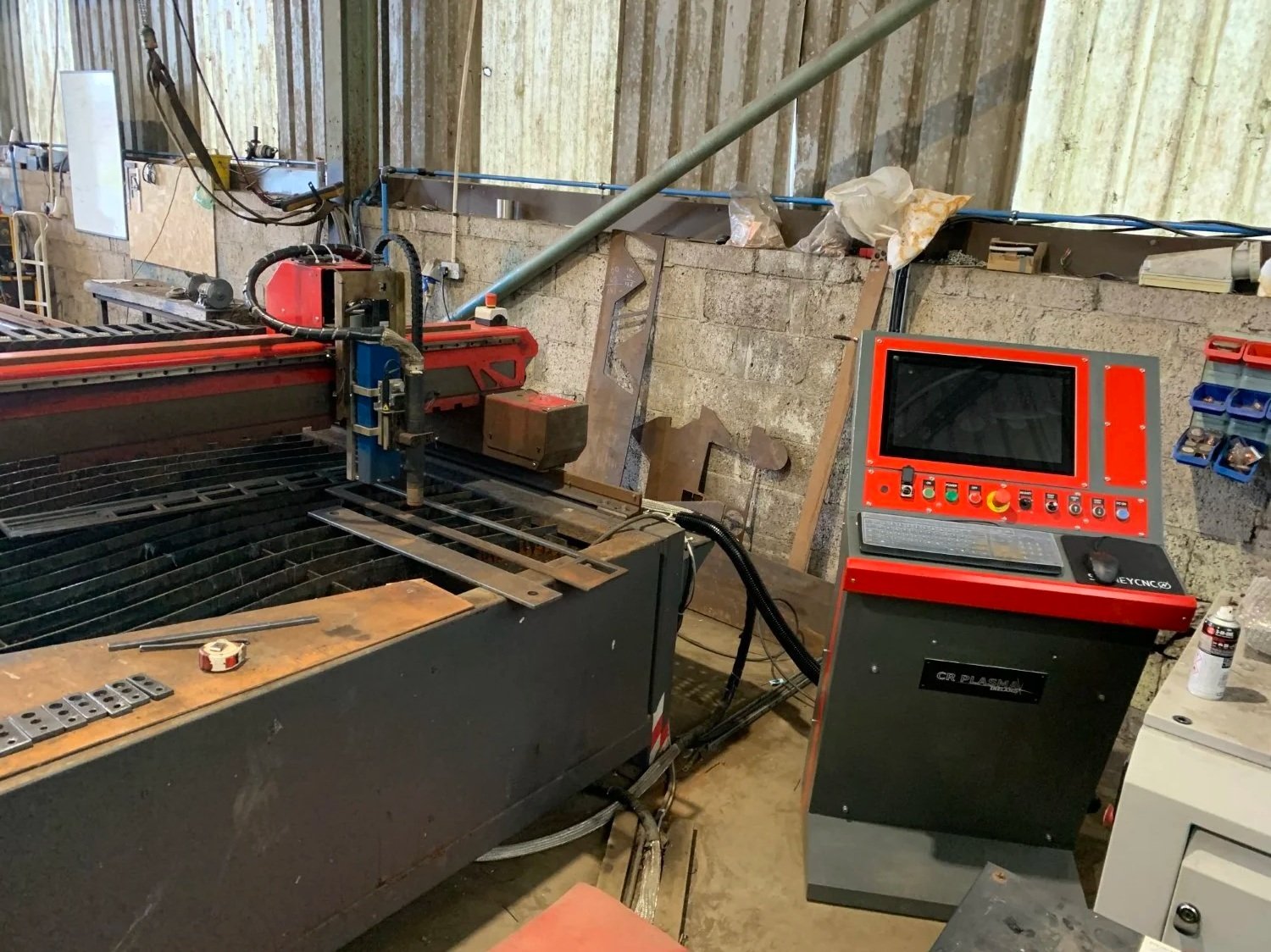

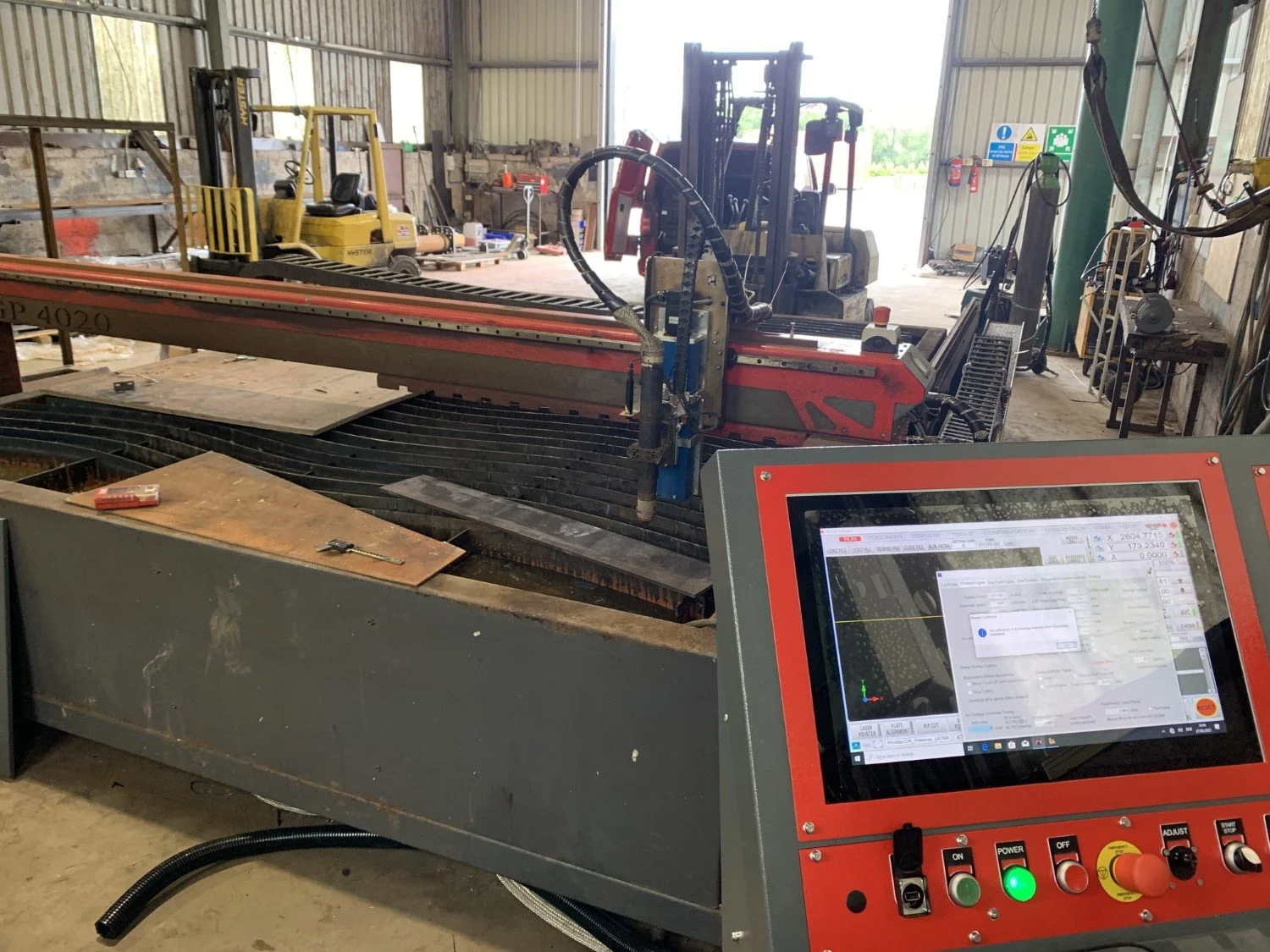

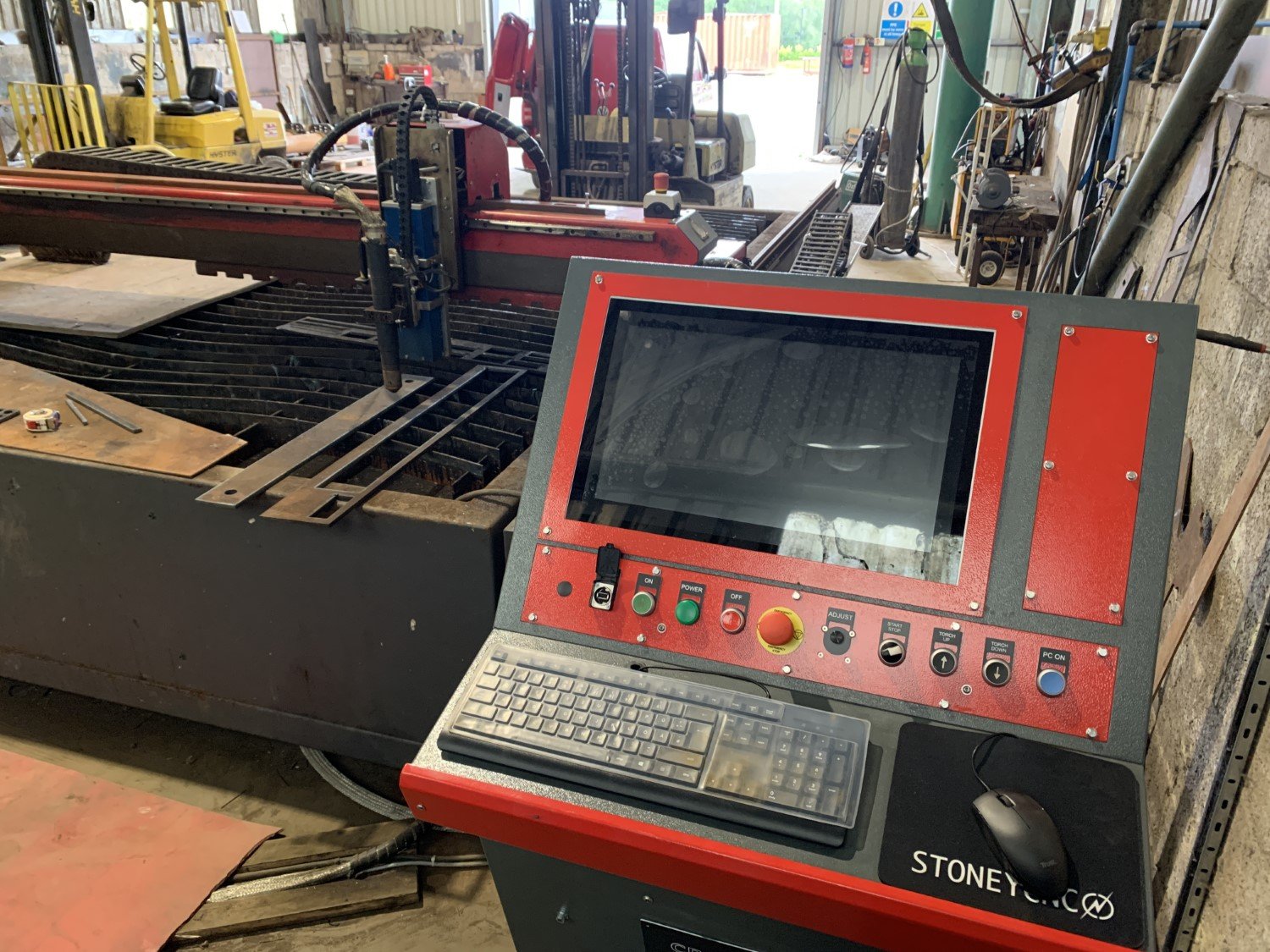

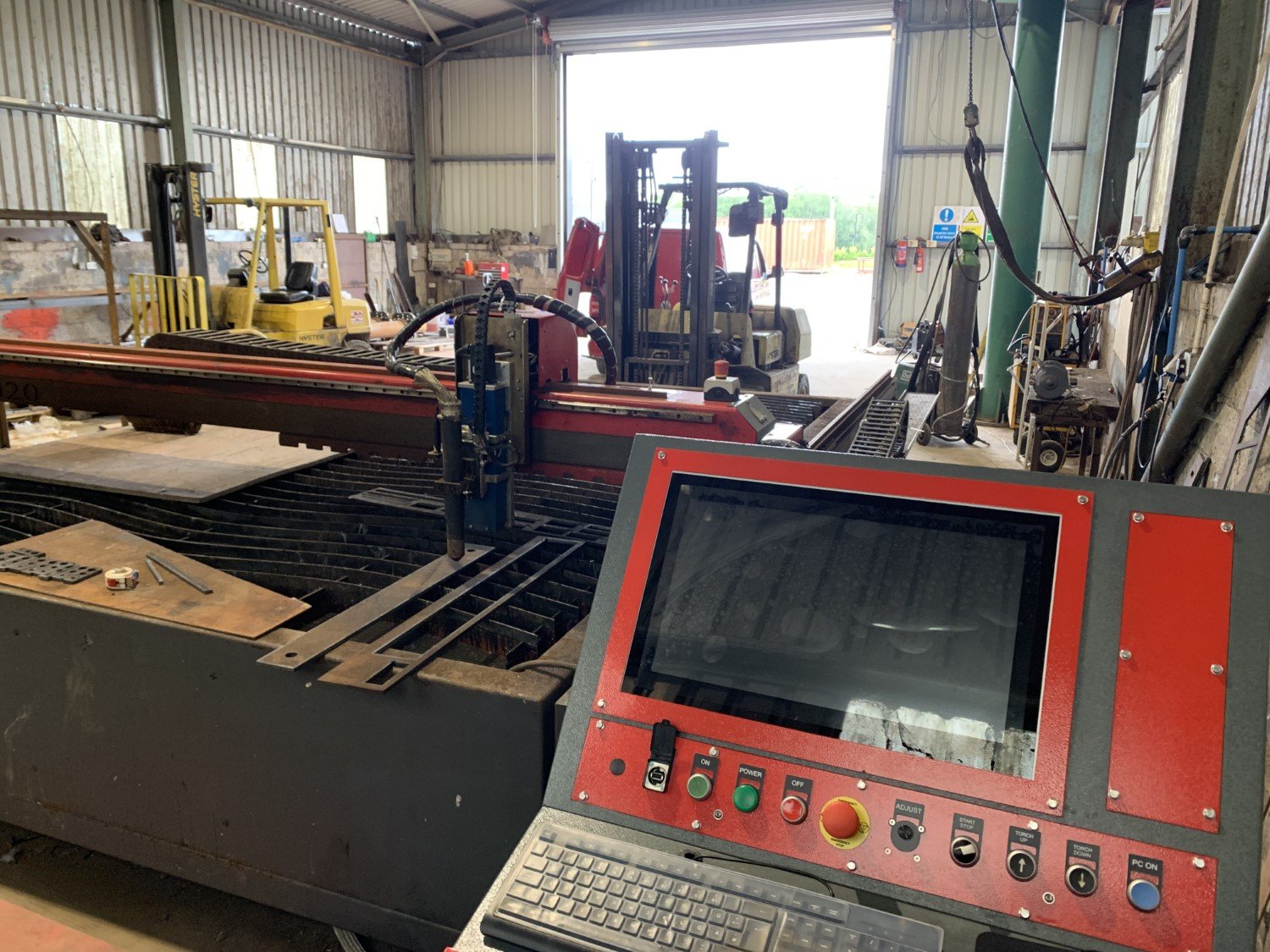

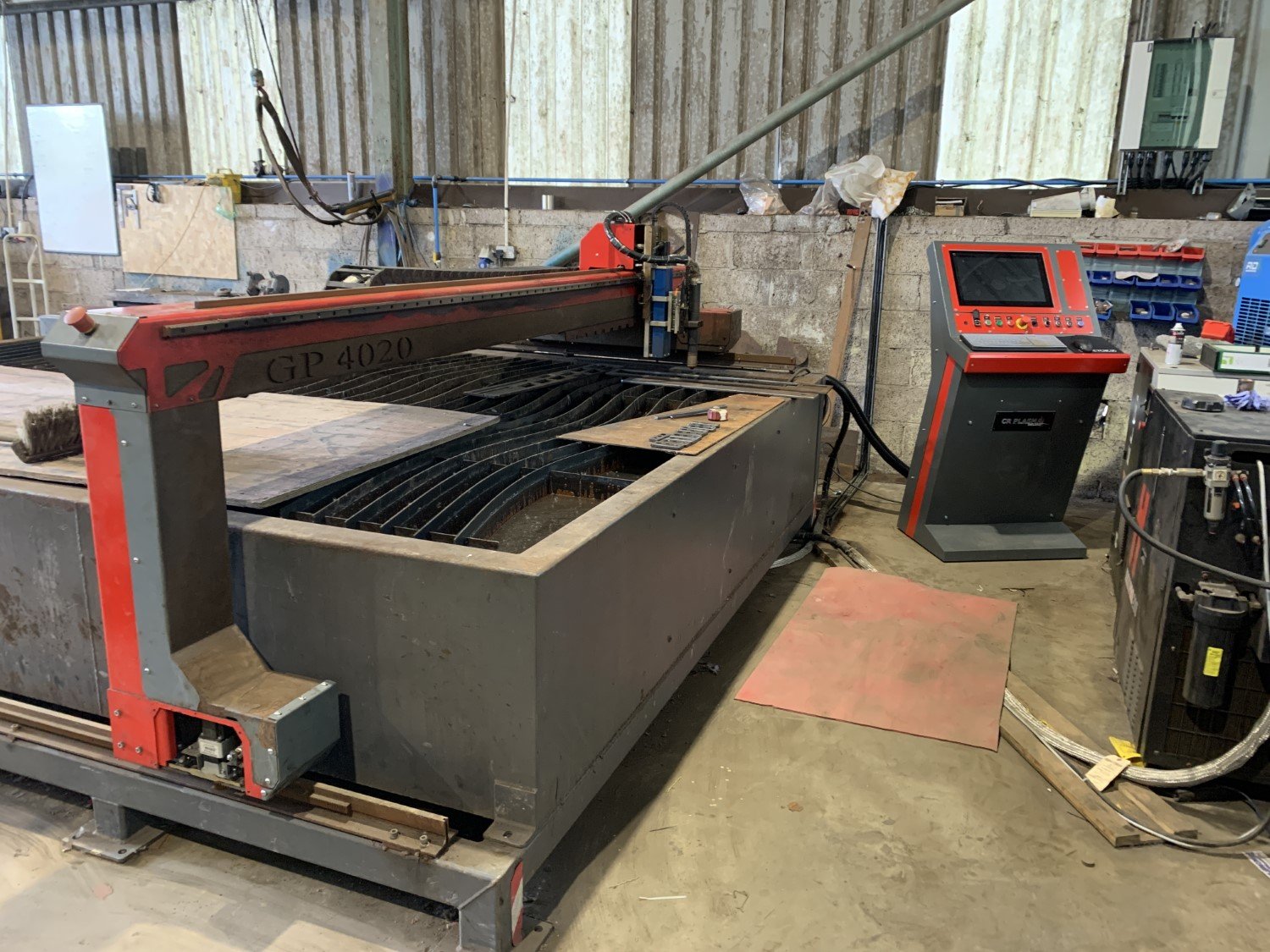

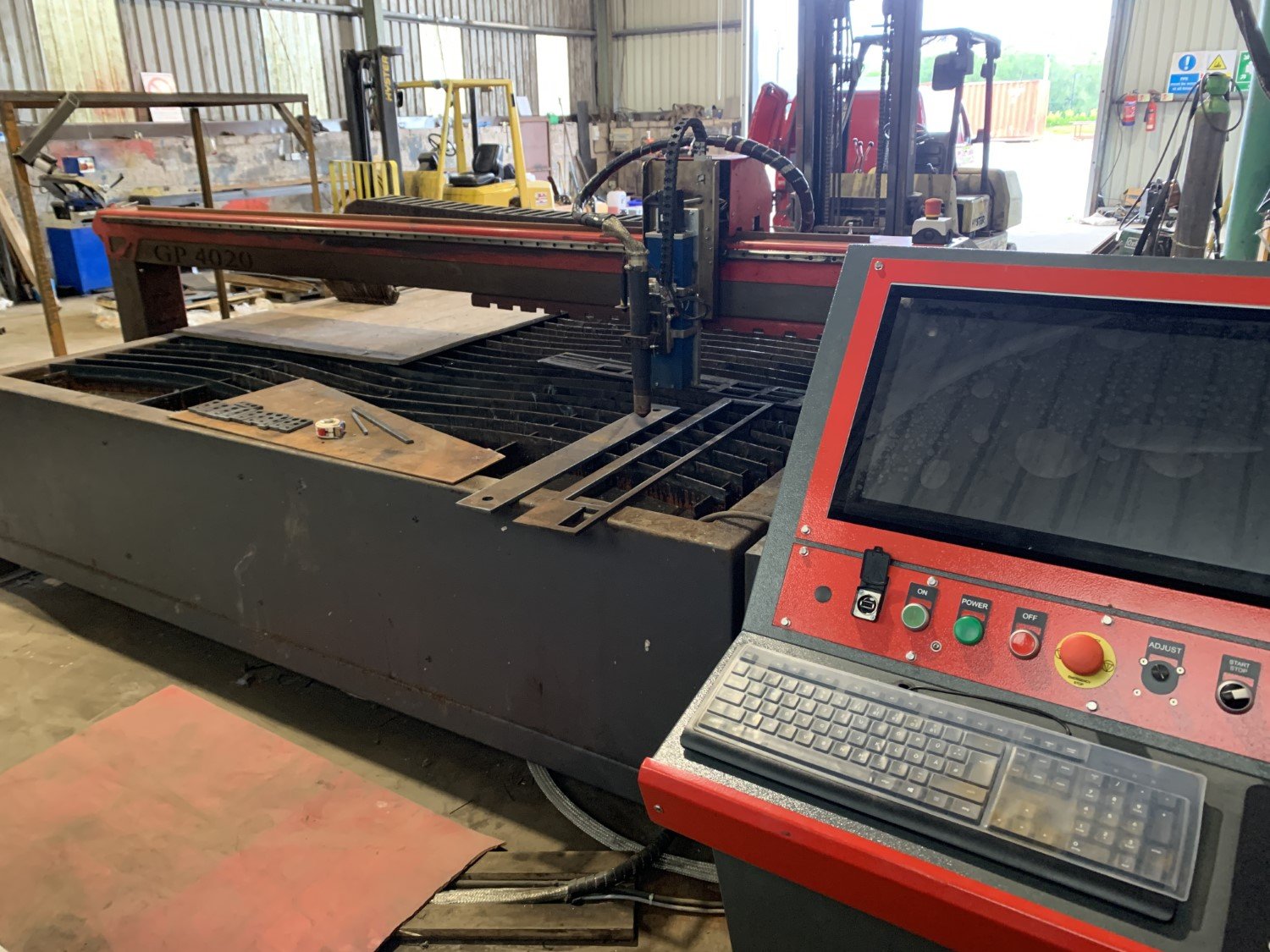

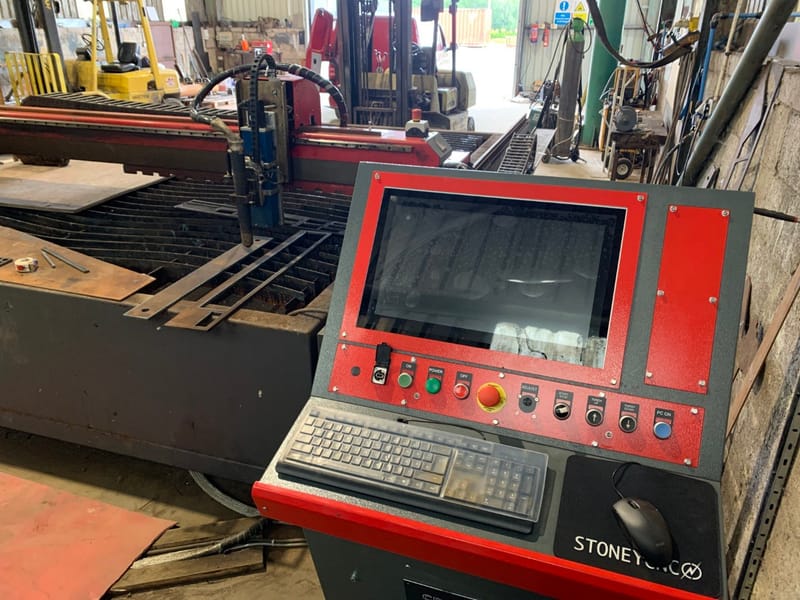

  • Full CR PLASMA controller console / HMI and integrated operator interface system

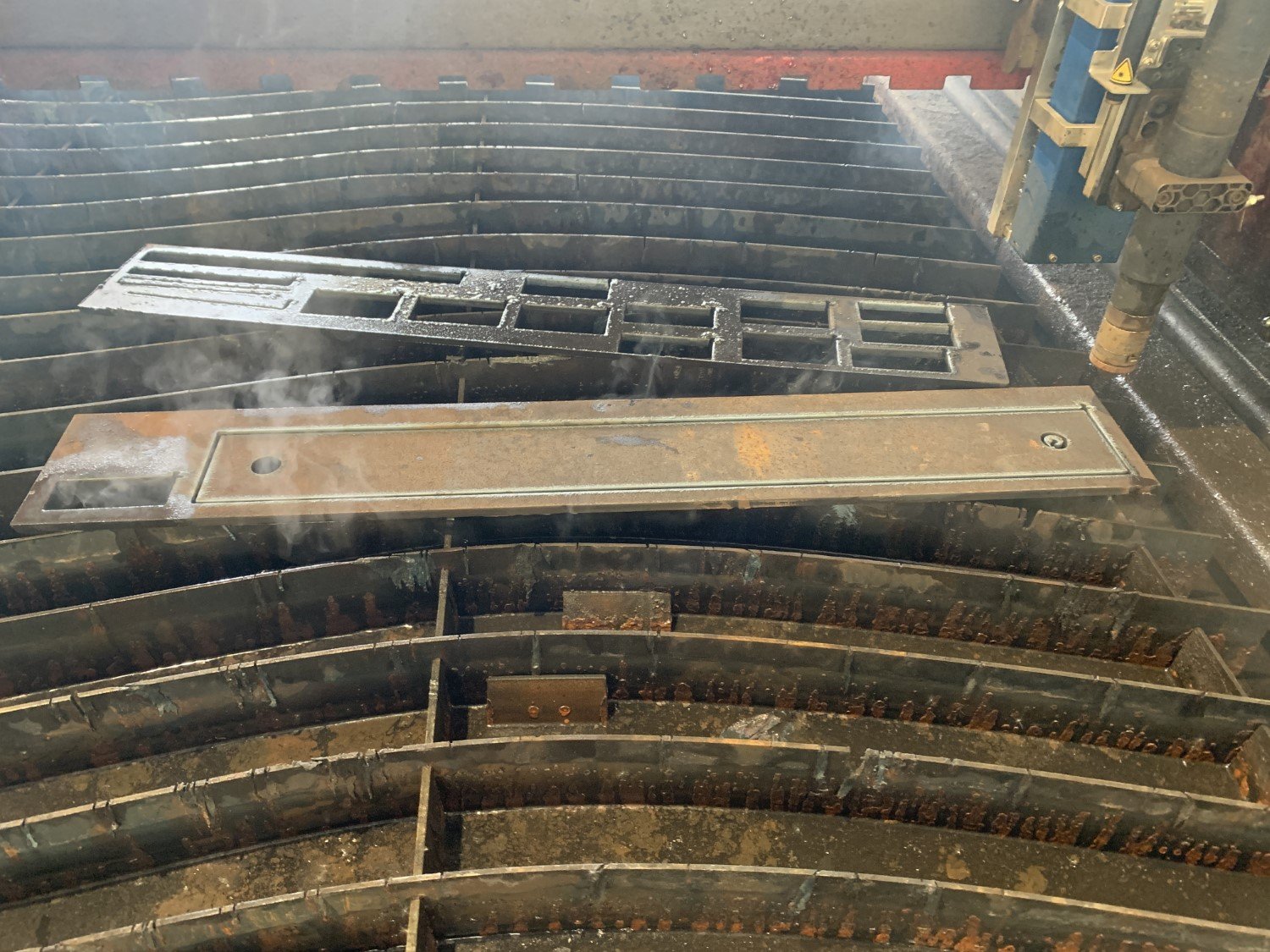

  • The machine is now fully back up and running using the existing MAXPRO 200

Techserve CNC plasma retrofit system upgrade, project image 1 Techserve CNC plasma retrofit system upgrade, project image 2 Techserve CNC plasma retrofit system upgrade, project image 3 Techserve CNC plasma retrofit system upgrade, project image 4 Techserve CNC plasma retrofit system upgrade, project image 5 Techserve CNC plasma retrofit system upgrade, project image 6 Techserve CNC plasma retrofit system upgrade, project image 7 Techserve CNC plasma retrofit system upgrade, project image 8 Techserve CNC plasma retrofit system upgrade, project image 9 Techserve CNC plasma retrofit system upgrade, project image 10 Techserve CNC plasma retrofit system upgrade, project image 11 Techserve CNC plasma retrofit system upgrade, project image 12 Techserve CNC plasma retrofit system upgrade, project image 13 Techserve CNC plasma retrofit system upgrade, project image 14 Techserve CNC plasma retrofit system upgrade, project image 15 Techserve CNC plasma retrofit system upgrade, project image 16

Using This Retrofit as a Project Reference

This page records work completed by CR PLASMA on Techserv Retrofit - CNC Plasma Retrofit Services. It is evidence of that project, not a fixed package for every machine. A U.S. retrofit starts with photographs, machine details, control and plasma information, required materials, and a review of service availability.
